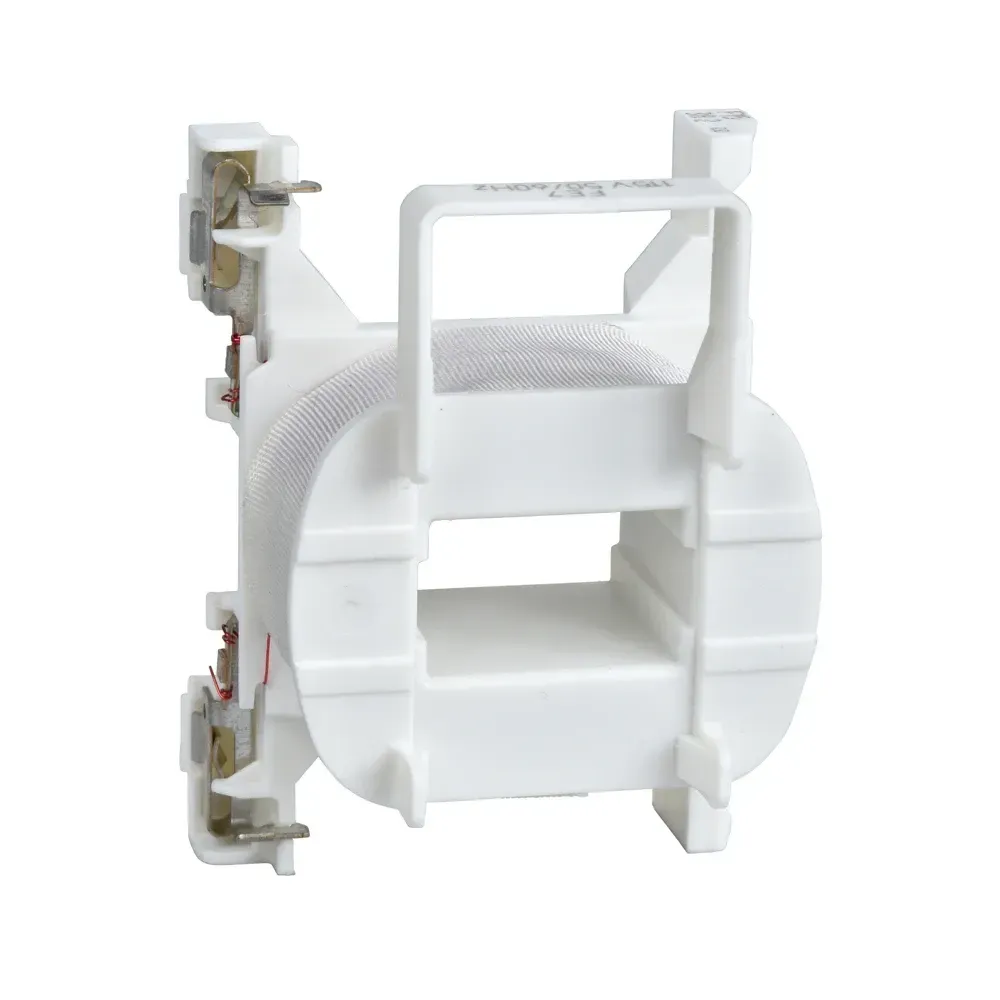

Schneider Contactor Coil 36V AC for LC1D09...D38 | TeSys Deca

This Schneider TeSys Deca contactor coil is designed for LC1D09…D38 series, featuring a 36V AC 5060 Hz control circuit and robust mechanical durability. It delivers 12.8 Ohm resistance at 20°C, 0.49 H inductance, and reliable operation in demanding electrical systems. The coil ensures efficient energy usage while maintaining safety standards, ideal for professional installations.

Product Information

Stock Code LXD1CC7
MPN LXD1CC7
GTIN
Stock status: 1 available
Price: £64.3
incl. VAT, 20% priced individually

Product Features

Product Compatibility LC1D09...D38, LC1DT20...DT40 contactors
Control Circuit Voltage 36 V AC 50/60 Hz
Average Resistance 12.8 Ohm at 20°C
Inductance (Closed Circuit) 0.49 H
Mechanical Durability 15 million cycles
Maximum Operating Rate 3600 cycles/hour at 60°C
Inrush Power Consumption 70 VA (50/60 Hz, cos phi 0.75 at 20°C)
Hold-in Power Consumption 7 VA (50 Hz), 7.5 VA (60 Hz, cos phi 0.3 at 20°C)
Heat Dissipation 2 to 3 W at 50/60 Hz
Operating Temperature Range -5 to 60°C

Applications & Uses

Industrial Control Panels

Ideal for integration into industrial control panels requiring high durability and rapid switching of motor starters and automation systems.

Machine Automation

Used in commercial and industrial machine automation for reliable contactor operation over long service periods and multiple cycles.

Frequently Asked Questions

  • What is the compatible contactor range for this coil?

    This Schneider contactor coil is compatible with LC1D09...D38 and LC1DT20...DT40 series contactors, ensuring seamless integration into professional control panels.

  • What are the control circuit voltage and frequency parameters?

    The coil operates at 36 V AC on both 50 Hz and 60 Hz frequencies, offering flexibility for standard electrical supply systems in industrial settings.

  • What is the expected mechanical durability of the coil?

    This coil is rated for up to 15 million operating cycles, supporting high-frequency switching and long-term reliability required in professional installations.

  • Does this coil have a built-in suppressor module?

    No, the Schneider TeSys Deca LXD1 coil does not feature a built-in suppressor module, ensuring direct compatibility with standard contactor circuits.

  • What is the heat dissipation during operation?

    The coil dissipates between 2 to 3 W at 50/60 Hz, helping meet thermal requirements in compact control enclosures for safe and continuous operation.

Brand

Schneider Electric
