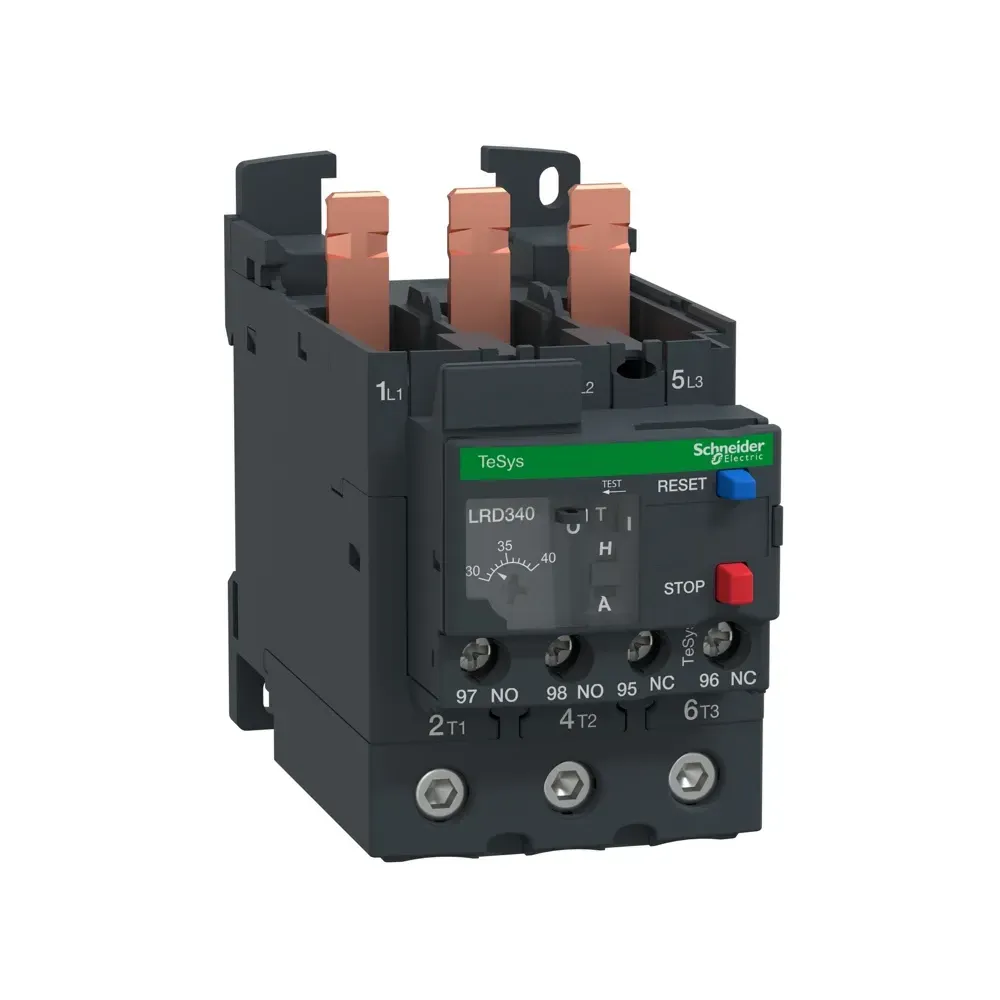

Photo is representative
Schneider Electric LRD340 Thermal Overload Relay 30-40A Class 10A
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £68.45
Gross price
£82.14
Schneider Electric 30–40 A thermal overload relay (LRD340) from the TeSys Deca family for motor protection. Class 10A trip characteristics with manual reset via blue push-button and red stop control. Rated operational voltage 690 V AC (0…400 Hz) with EverLink BTR screw power terminals and screw clamp control terminals. Auxiliary contact configuration 1NO+1NC. Mounts under or directly to TeSys contactors and is compatible with LC1D65A, LC1D50A and LC1D40A. Ambient compensated for -20…60 °C operation and complies with IEC 60947-4-1.
