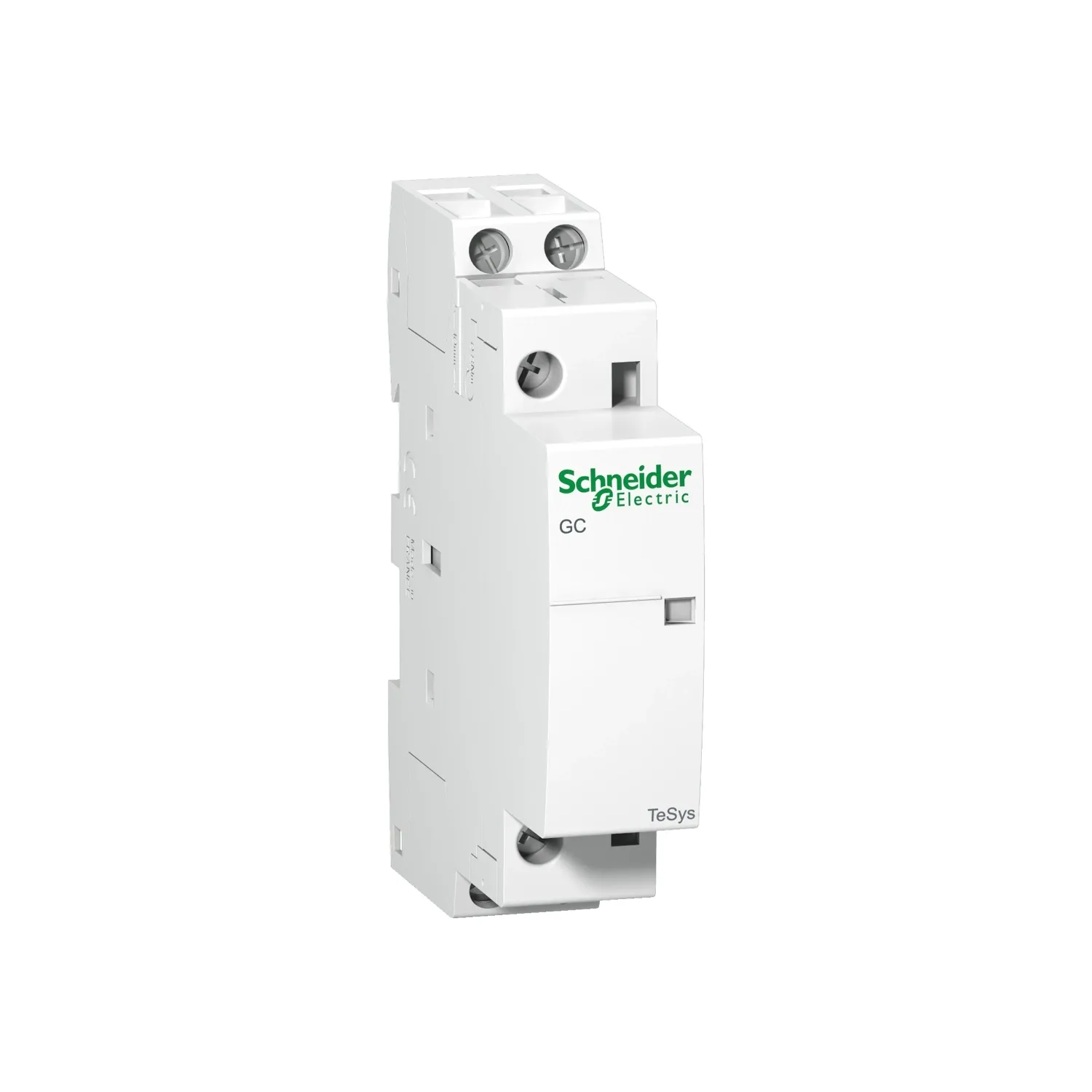

Schneider Modular Contactor 25A, NO, 2P, 24V AC

Photo is representative

Schneider 25A 2P NO Modular Contactor 24V AC Coil - 27mm

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GC2520B5
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £33.83

Gross price

£40.60

25A 2P NO modular contactor for DIN-rail panel mounting

  • Electrical: In 25A AC-1/AC-7a, Ie 25A AC-1, Ui 500V AC, coil 24V AC 50Hz 4.6VA hold
  • Physical: 27mm width (3x9mm modules), 85x62.5mm HxD, IP20 (IP40 enclosed)
  • Performance: 100,000 electrical cycles, 100 operations/day max
  • Compliance: CE/UKCA, IEC/EN 60947-4-1, BS 7671 compatible
  • Connections: 1.5-6mm² power terminals, 1.5-2.5mm² control terminals
Specifications

Current Rating

25A AC-1 / AC-7a

Configuration

2P NO (2 Normally Open poles)

Coil Voltage

24V AC 50Hz

Rated Insulation Voltage (Ui)

500V AC

Rated Operational Voltage (Ue)

250V AC

Rated Impulse Withstand Voltage (Uimp)

6kV

Mounting

35mm DIN-rail

Width

27mm (3x9mm modules)

IP Rating

IP20 (IP40 enclosed)

Operating Temperature

-5°C to +60°C

Electrical Durability

100,000 cycles

Hold Power

4.6VA

Terminals

Screw clamp: 1.5-6mm² power, 1.5-2.5mm² control

Certifications

CE, UKCA, IEC/EN 60947-4-1

Schneider Electric
