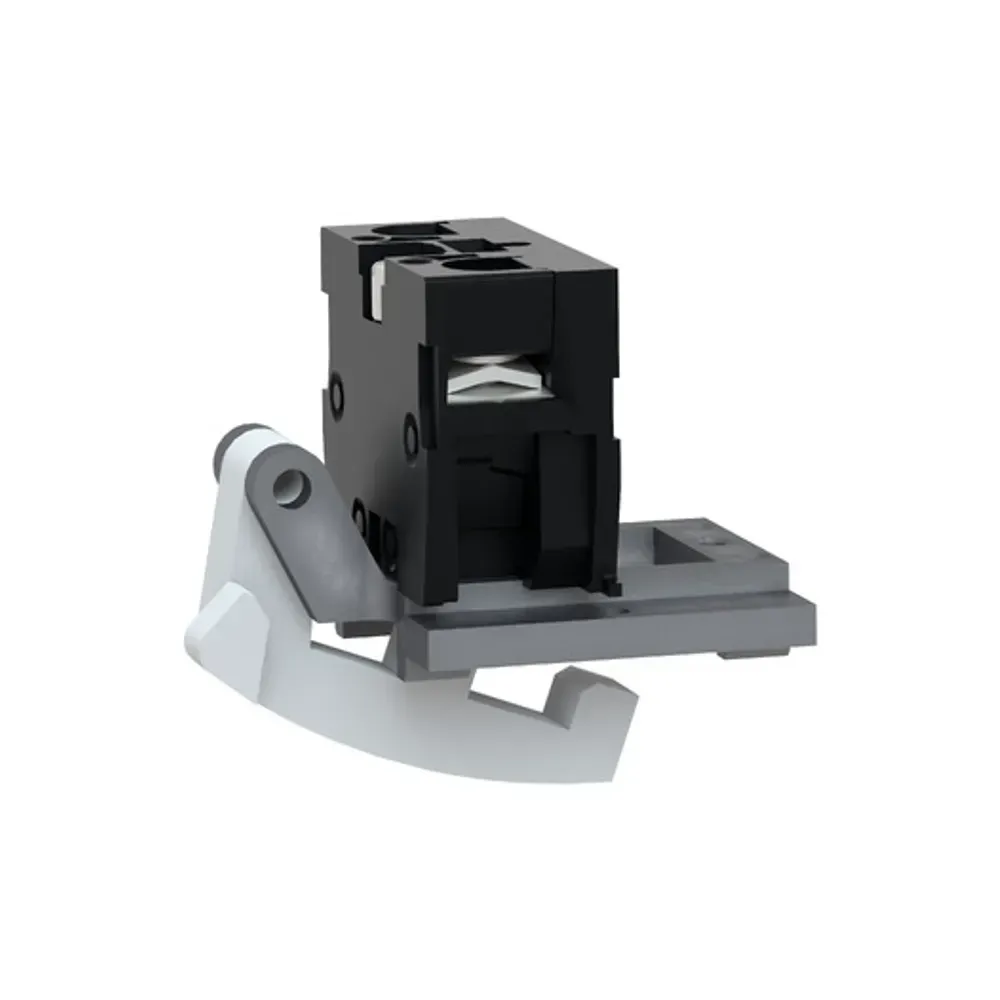

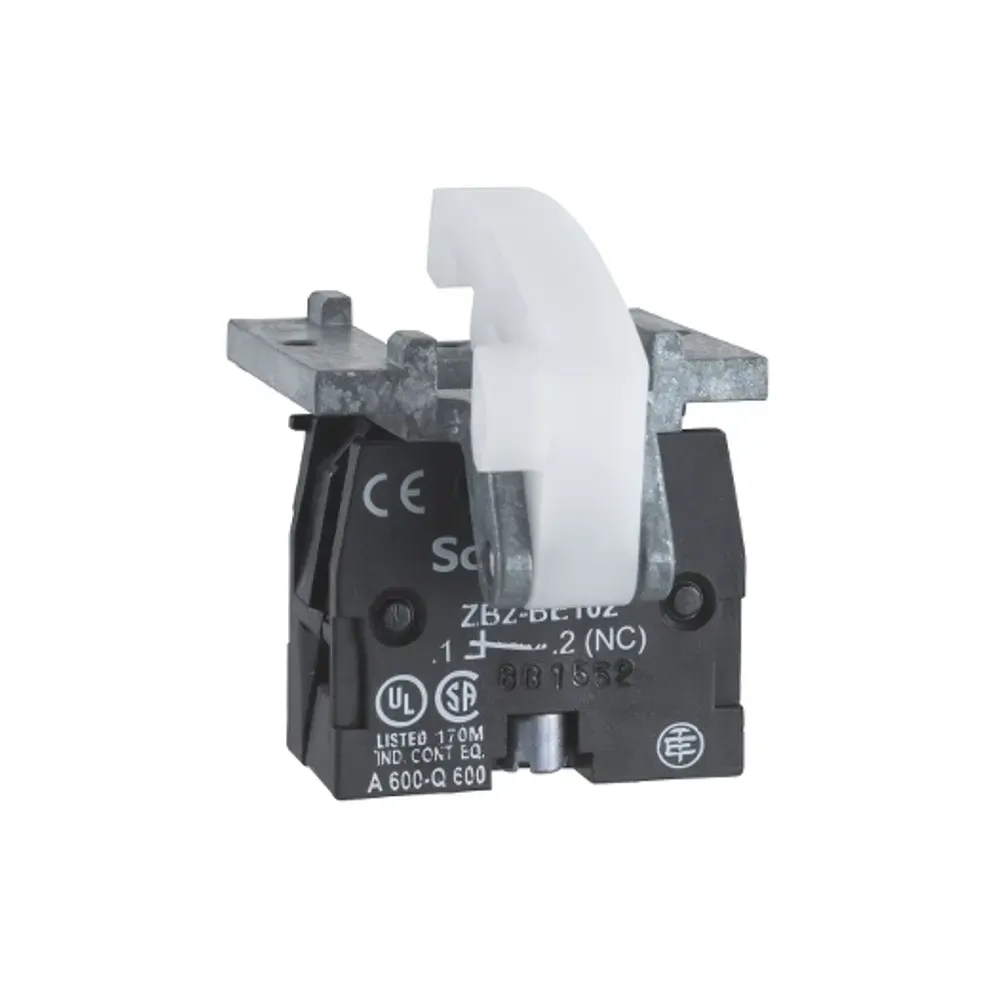

Schneider Harmony XACS102 Contact Block 1NC Spring Return Base Mount
Schneider Harmony XACS102 Contact Block 1NC Spring Return Base Mount

Photo is representative

Schneider Harmony XACS102 Contact Block 1NC Spring Return Base Mount
Schneider Harmony XACS102 Contact Block 1NC Spring Return Base Mount

Schneider Harmony XAC Contact Block 1NC | Spring Return | Screw Clamp Terminal

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code XACS102
GTIN —
Stock status: In stock

priced individually

Net price: £18.35

Gross price

£22.01

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider Harmony XAC contact block with 1NC spring return is designed for robust control circuit applications. Featuring screw clamp terminals for secure wiring, this base-mounted, slow-break contact block delivers high reliability with a mechanical durability of 1,000,000 cycles. Rated for 10A and up to 600V insulation, it ensures safety and compliance for professional electrical installations. Ideal for integration with Harmony XACA devices in demanding environments.

Specifications

Range of Product

Harmony XAC

Contact Block Type

Single, 1NC

Operator Type

Spring return

Mounting

Base mounting

Terminal Type

Screw clamp, 0.5–2.5 mm²

Mechanical Durability

1,000,000 cycles

Rated Insulation Voltage

600 V (IEC 60947-1)

Conventional Thermal Current

10 A

Impulse Withstand Voltage

6 kV

Short-circuit Protection

10 A gG fuse

Documents

other XACS102 Datasheet

Frequently asked questions

What applications is the Schneider Harmony XAC 1NC contact block suitable for?

This contact block is ideal for use in control circuits of industrial machines, especially where safe, reliable spring-return operation and high switching durability are required in Harmony XACA pendant stations.

What size wires can be used with the screw clamp terminals?

The terminals accept wires from 0.5 mm² to 2.5 mm² without cable ends and from 0.5 mm² to 1.5 mm² with cable ends, ensuring flexible wiring options.

What safety standards does this contact block comply with?

The Schneider Harmony XAC contact block complies with IEC 60947-5-1 for control circuit components and IEC 60947-1 for insulation and impulse voltage ratings.

How is short-circuit protection achieved for this contact block?

Short-circuit protection is provided by using a 10 A cartridge fuse of type gG, in compliance with professional wiring practice.
