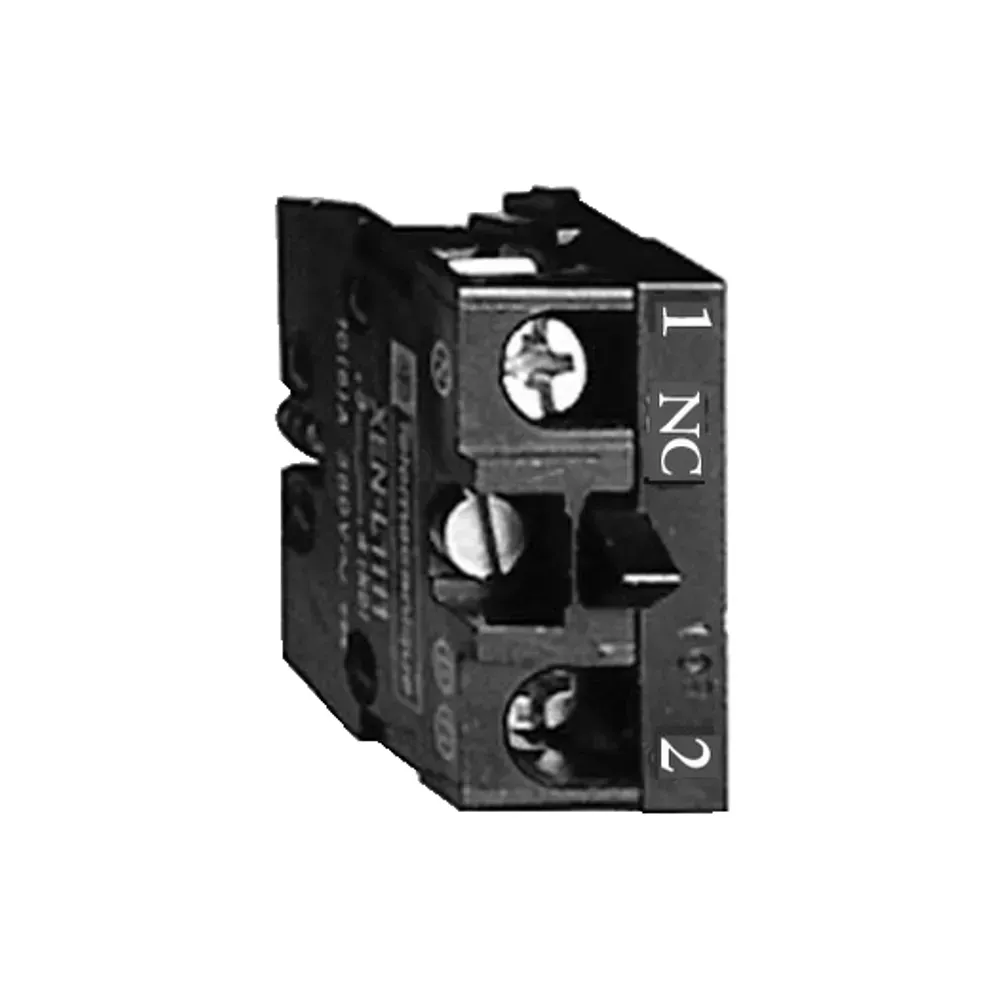

Harmony XAL XENL1121 spring return contact block 1NC rear mounting

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Schneider Harmony XAL 1NC Rear Mount Spring Return Contact Block

The Harmony XAL XENL1121 spring return contact block features a 1NC contact configuration and rear mounting design ideal for industrial control systems. Engineered for durability with slow-break contacts and positive opening conforming to IEC 60947-5-1, it ensures reliable operation.

  • Contact Type: 1 Normally Closed (NC)
  • Mounting: Rear box mounting for easy assembly
  • Rated Current: 3A at 240V AC-15
  • Operating Force: 0.8 N NC contact change
  • Electrical Durability: 1,000,000 cycles at DC-13 loads
  • Terminals: Screw clamp supports up to 2 x 1.5 mm² without cable end
  • Rated Insulation Voltage: 500-600V with 6kV impulse withstand
  • Short Circuit Protection: 10A fuse type gL
  • Compliance: IEC, UL, CSA standards met
Stock Code: XENL1121
In stock
Price 10.11 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Product Range

    Harmony XAL

  • Contact Configuration

    1NC (Normally Closed)

  • Mounting Type

    Rear box mounting

  • Operating Force

    0.8N (NC contact change)

  • Connections - Terminals

    Screw clamp, ≤ 2 x 1.5 mm² without cable end

  • Rated Operational Current

    3A at 240V AC-15

  • Rated Insulation Voltage [Ui]

    500V IEC, 600V UL/CSA

  • Rated Impulse Withstand Voltage [Uimp]

    6kV

  • Electrical Durability

    1,000,000 cycles DC-13 at 120V and 24V

  • Short Circuit Protection

    10A cartridge fuse type gL

  • Contact Operation

    Slow-break with positive opening IEC 60947-5-1

Documents

Brand

Schneider Electric
