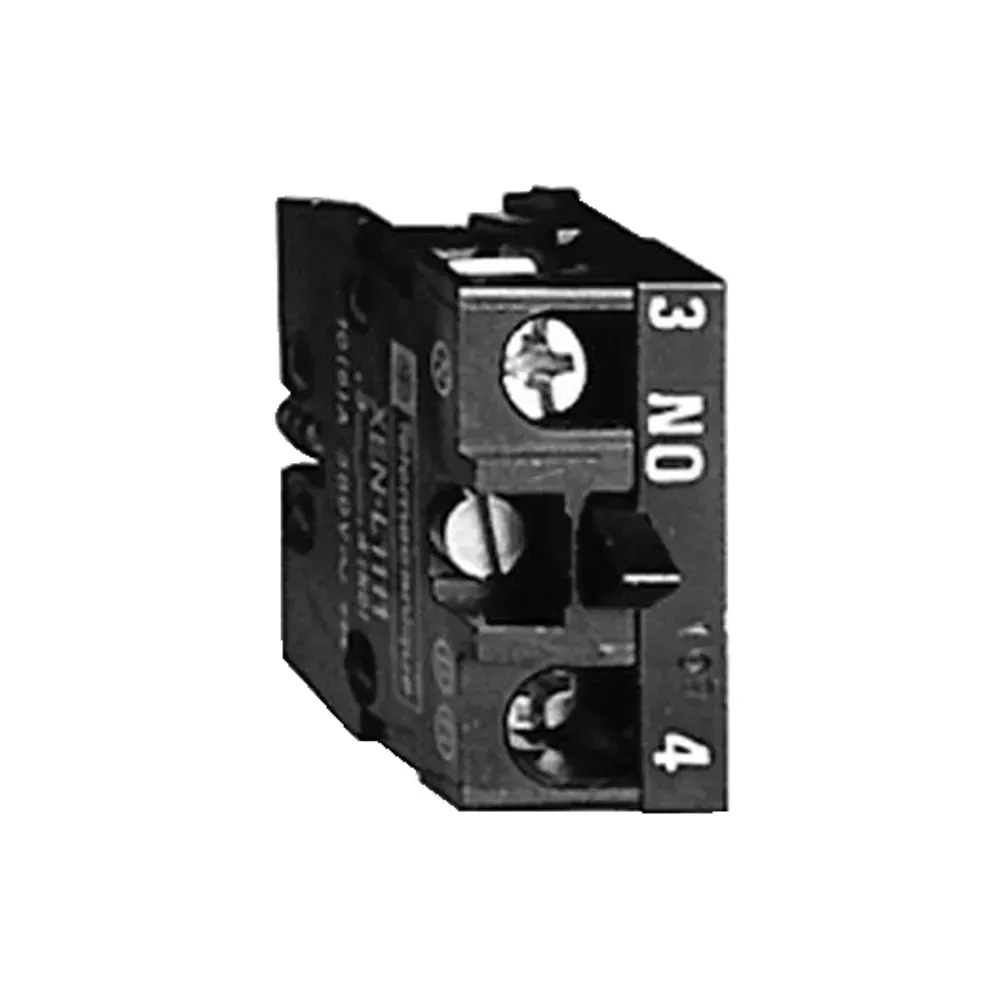

Harmony XAL XENL1111 contact block 1NO rear mount

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Schneider Harmony XAL 1NO Rear Mount Spring Return Contact Block

The Harmony XAL XENL1111 spring return contact block offers reliable, slow-break 1NO operation with rear box mounting. Designed for demanding electrical control applications, it supports up to 3A at 240V AC and withstands 6kV impulse voltage.

  • Contact Composition: 1 Normally Open (1NO) contact
  • Mounting Style: Rear mounting for versatile assembly
  • Terminals: Screw clamp terminals accommodating 0.5 to 2.5mm² wire
  • Electrical Ratings: 500V insulation voltage, 3A operational current, with 10A short-circuit protection
  • Durability: Rated for 1,000,000 electrical cycles
  • Compliance: IEC, UL, CSA certified for industrial use
Stock Code: XENL1111
In stock
Price 10.11 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Product Range

    Harmony XAL

  • Contact Type and Composition

    1NO

  • Mounting of Block

    Rear mounting

  • Contact Operation

    Slow-break

  • Operating Force

    1N

  • Terminal Type

    Screw clamp terminals, 0.5 to 2.5mm²

  • Rated Insulation Voltage (Ui)

    500V (IEC), 600V (UL/CSA)

  • Rated Impulse Withstand Voltage (Uimp)

    6kV IEC 60947-1

  • Rated Operational Current (Ie)

    3A at 240V AC-15, 0.27A at 250V DC-13

  • Electrical Durability

    1,000,000 cycles DC-13 at 24-120V

  • Short-Circuit Protection

    10 A cartridge fuse type gL IEC/VDE

Documents

Brand

Schneider Electric
