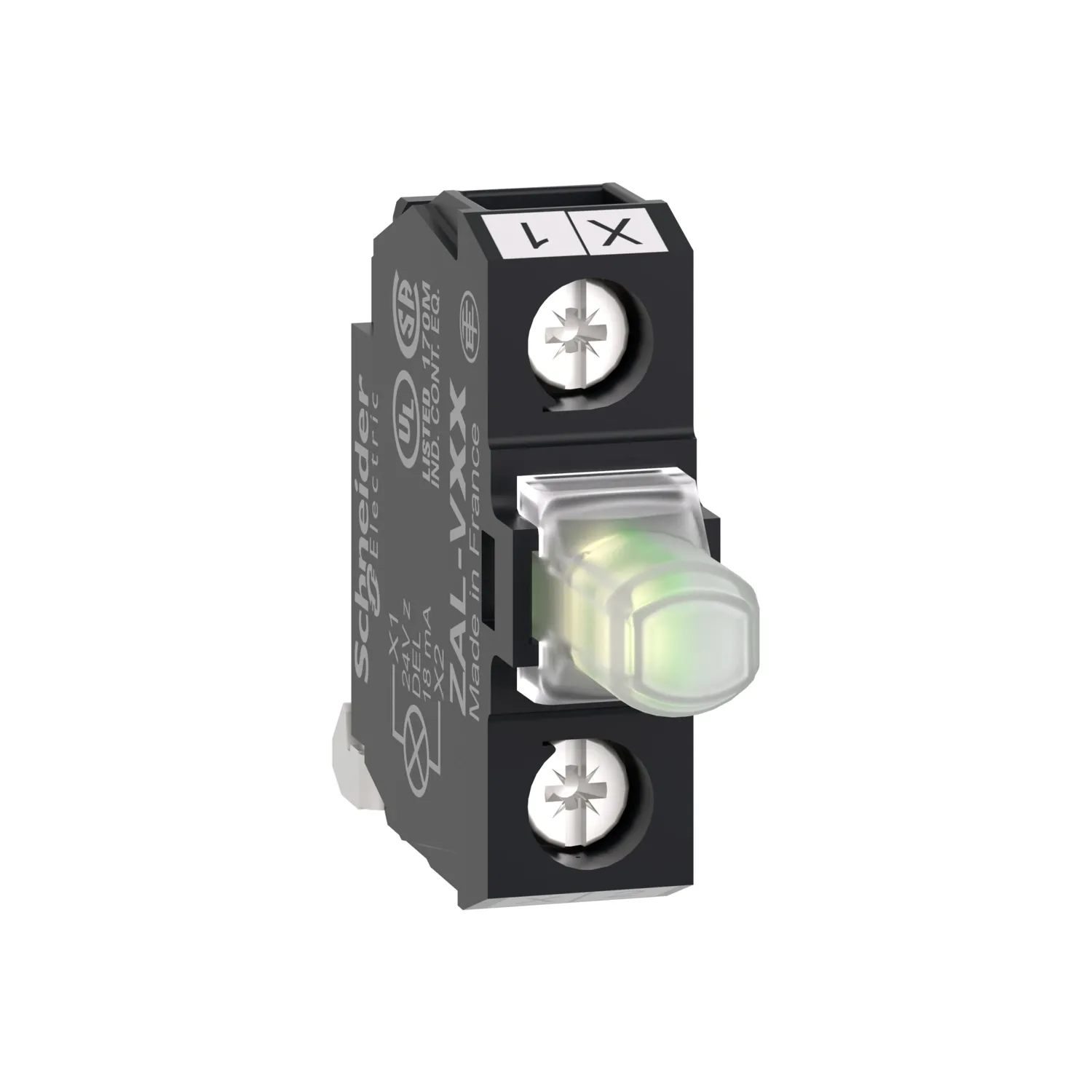

Photo is representative

Schneider XAL LED Light Block White 24V AC/DC for XB5 Units - IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ZALVB1
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £8.08

Gross price

£9.69

Schneider Harmony XAL LED light block, white, for XB5 22mm control and signalling units.

  • Universal LED, 24V AC/DC (19.2-30V DC / 21.6-26.4V AC), 15mA current
  • IP20 protection, -40 to +70°C operating temperature
  • Rear mounting for XALD/XALK enclosures, screw clamp terminals (≤2×1.5mm²)
  • Service life 100,000 hours at rated voltage and 25°C
  • Certifications: UL listed, CSA, IEC 60947-5-1, EU RoHS compliant
  • Reference BS 7671 for panel integration
Specifications

Current Rating

15 mA

Configuration

Rear mounting for XALD/XALK enclosures

Voltage

24V AC/DC (19.2-30V DC / 21.6-26.4V AC)

Light Colour

White

Light Source

Universal LED

IP Rating

IP20

Mounting

22mm for XB5 units

Operating Temperature

-40 to +70°C

Certifications

UL listed, CSA, IEC 60947-5-1, EU RoHS compliant

Terminal Type

Screw clamp

Service Life

100,000 hours at rated voltage and 25°C
