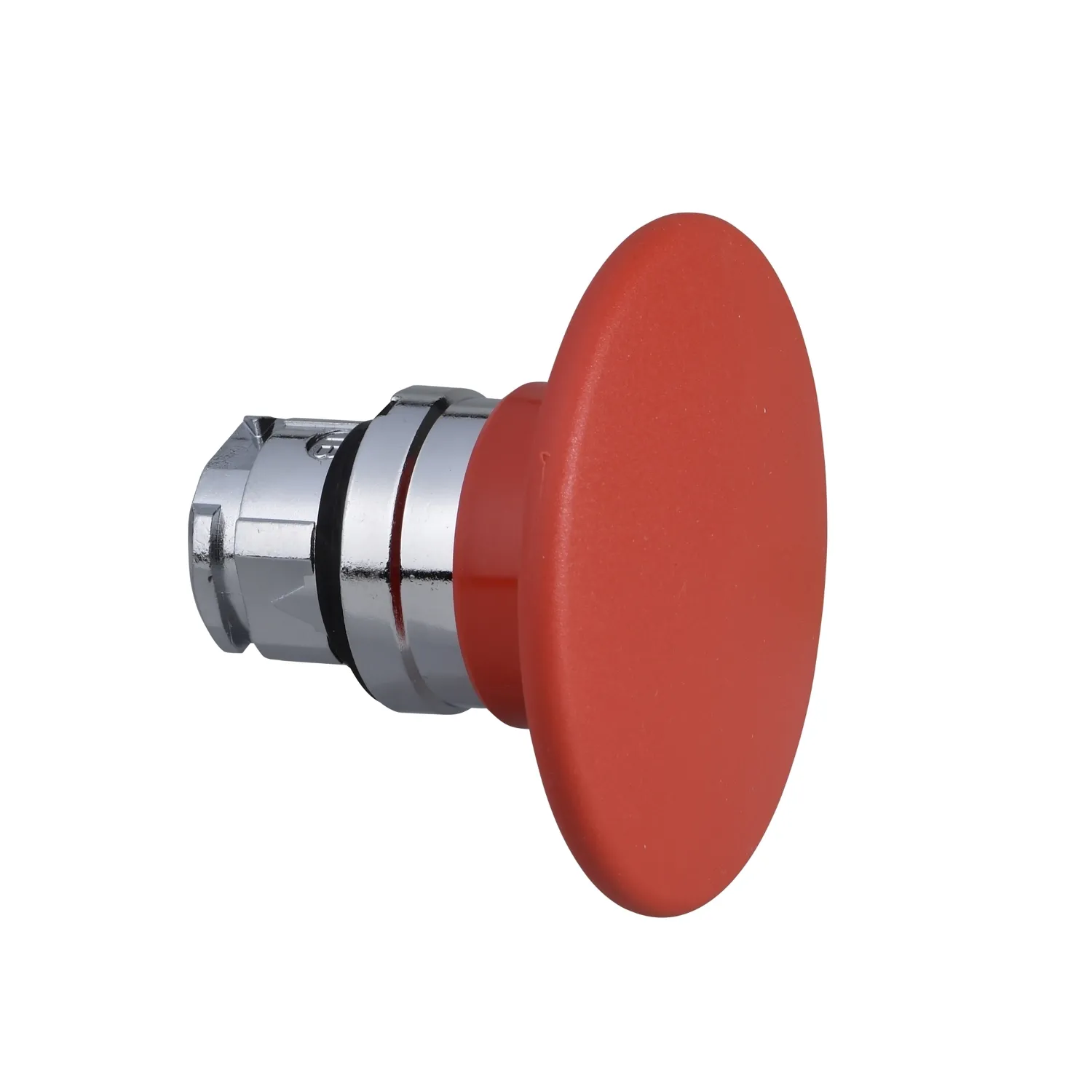

ZB4BR4

Photo is representative

Schneider Harmony XB4 Mushroom Push Button Head 22mm Red Ø60mm IP66/IP69K

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ZB4BR4
GTIN —
Stock status: 5 in stock

priced individually

Net price: £18.07

Gross price

£21.69

Schneider Harmony XB4 head for non-illuminated push-button, red mushroom 60mm, spring return operator.

  • Construction: Chromium plated metal bezel, 22mm mounting diameter, standard head type.
  • Durability: Mechanical durability 5,000,000 cycles, vibration resistance 5 gn.
  • Environment: IP66/IP67/IP69/IP69K, NEMA 13/4X, IK03, -40 to 70°C operating/storage.
  • Compliance: UL listed, CSA, EN/IEC 60947-5-1, EN/IEC 60947-1, EU RoHS compliant.
  • Note: This is a mushroom push button head component, not a complete latching emergency stop unit.
Specifications

Configuration

Head for non-illuminated push-button

Mounting Diameter

22 mm

Head Type

Standard

Operator Type

Spring return

Operator Profile

Red mushroom 60mm, unmarked

Bezel Material

Chromium plated metal

IP Rating

IP66/IP67/IP69/IP69K

NEMA Rating

NEMA 13, NEMA 4X

IK Rating

IK03

Operating Temperature

-40 to 70°C

Mechanical Durability

5,000,000 cycles

Vibration Resistance

5 gn (2-500 Hz)

Shock Resistance

30 gn (18 ms) / 50 gn (11 ms)

Certifications

UL listed, CSA, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EU RoHS compliant

Schneider Electric
