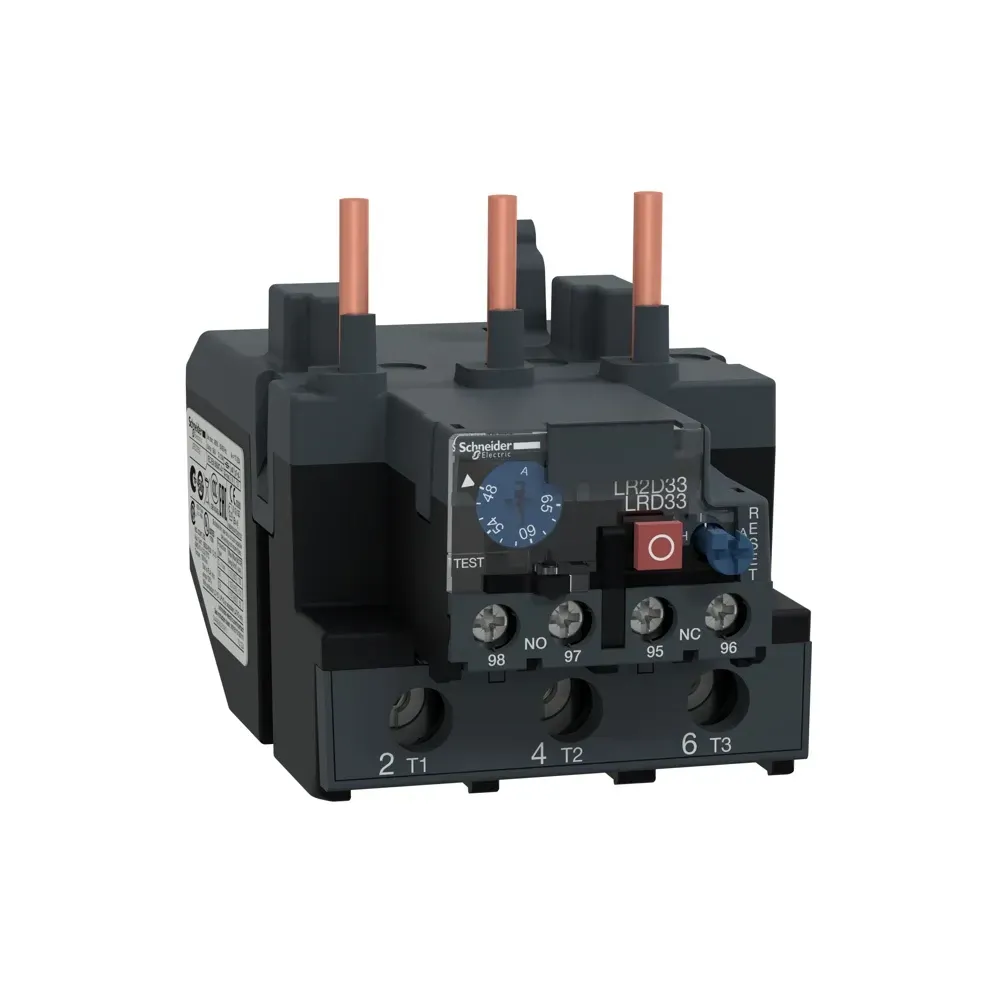

Schneider LRD3359 thermal overload relay for motor protection

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Schneider LRD3359 Thermal Overload Relay - 48-65A Motor Protection TeSys Deca Series

The Schneider LRD3359 is a high-performance thermal overload relay specifically engineered for comprehensive motor protection in industrial applications. Part of the TeSys Deca series, this advanced three-pole relay offers precise current monitoring and safeguarding for motors up to 30kW at 400V. Designed with cutting-edge features, the LRD3359 provides reliable overcurrent detection through its adjustable current range of 48 to 65 amperes and Class 10A protection.

Key features include: - Compatibility with TeSys D contactors rated 80-95 amps - Automatic and manual reset options - Ambient temperature compensation - 1NO/1NC auxiliary contacts for comprehensive signaling - Screw clamp terminals for simplified installation

Stock Code: LRD3359
Out of stock

Product Features

  • Product Series

    TeSys Deca

  • Type

    Thermal Overload Relay

  • Poles

    Three-pole

  • Current Range

    48-65 Amperes

  • Motor Power Rating

    Up to 30 kW at 400V

  • Protection Class

    Class 10A

  • Contactor Compatibility

    TeSys D 80-95 Amps

  • Reset Options

    Automatic and Manual

  • Auxiliary Contacts

    1NO-1NC

  • Control Circuit Voltage

    Up to 1000V AC

  • Frequency Range

    0-400 Hz

  • Terminal Type

    Screw Clamp

  • Special Feature

    Ambient Temperature Compensation
