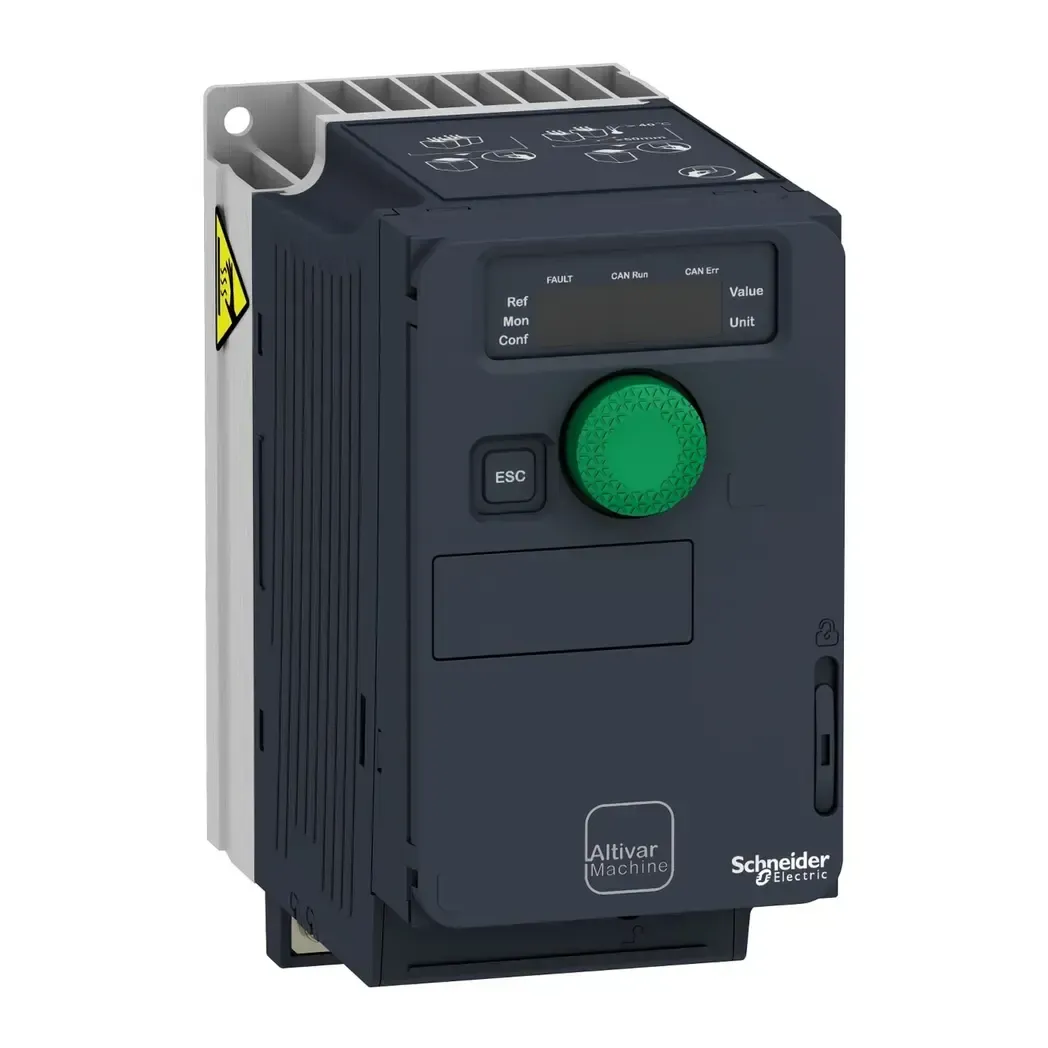

ATV320U04M2C - Schneider Variable Speed Drive Altivar Machine ATV320U04M2C

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Schneider Variable Speed Drive Altivar Machine ATV320U04M2C

Schneider Variable Speed Drive Altivar Machine ATV320U04M2C is designed for three-phase asynchronous and synchronous motors with outputs ranging from 0.18 to 15 kW. It is reliable, easy to set up, and integrate into a variety of machine layouts and cabinets. Suitable for small industrial equipment applications, it includes several useful features to meet demanding application needs.

Stock Code ATV320U04M2C
Few in stock
Price 186.37 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Sku

    ATV320U04M2C

  • Depth

    128.0 mm

  • Width

    72.0 mm

  • Height

    143.0 mm

  • EMC Filter

    Integrated Class C2

  • Net Weight

    1 kg

  • Motor Power kW

    0.37 kW

  • Max Output Frequency

    0.599 kHz

  • Rated Supply Voltage

    200 - 240 V

  • Maximum Input Current

    5.9 A

  • Maximum Output Voltage

    240 V

  • Nominal Output Current

    3.3 A

  • Power Dissipation in W

    Self-cooled: 30 W at 200 V switching frequency 4 kHz

  • IP Degree of Protection

    IP20

  • Ambient Air Temperature for Operation

    -10 - 50°C without derating, 50 - 60°C with derating factor

Brand

Schneider Electric
