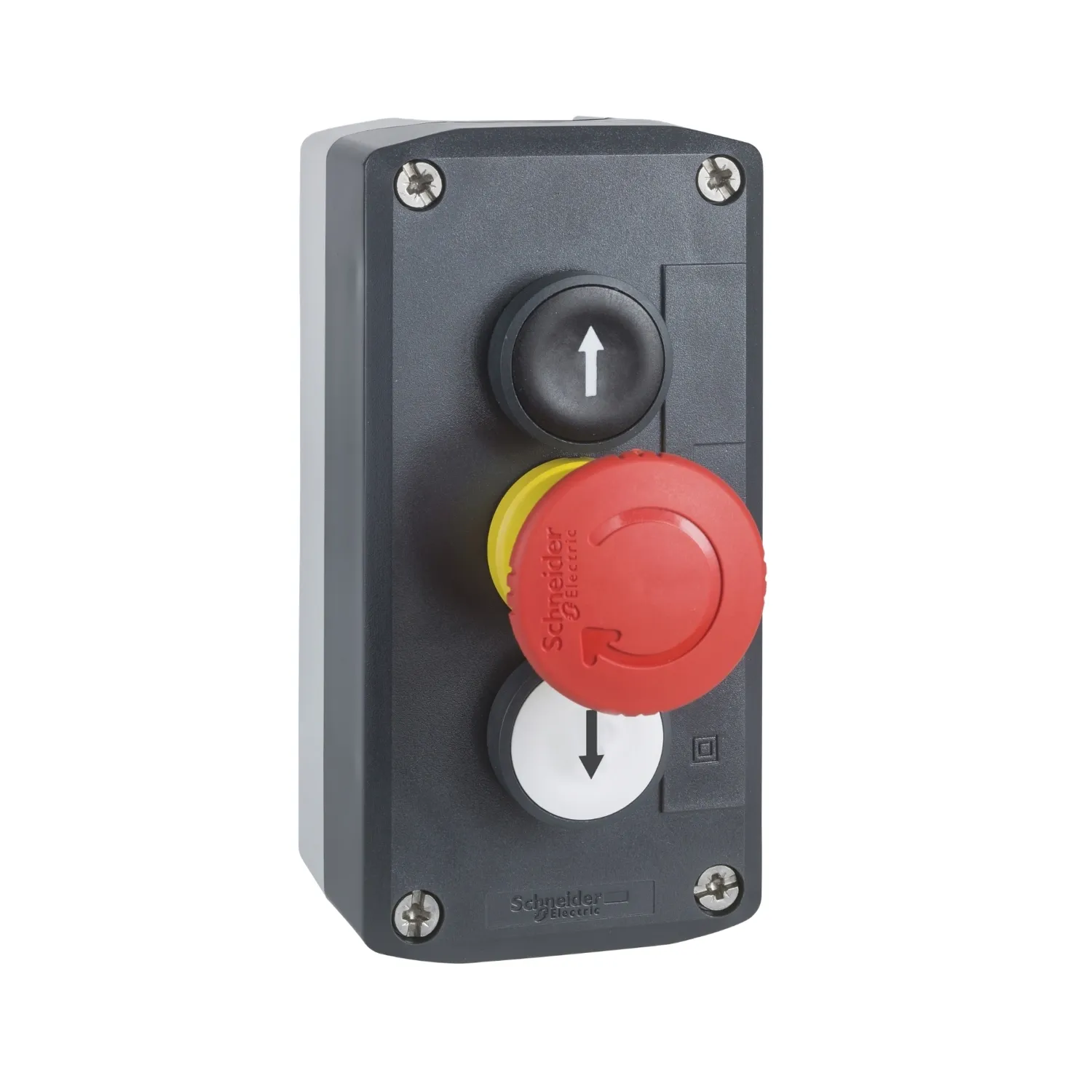

XALD328

Photo is representative

Schneider XALD328 3-Button Control Station with E-Stop - 240V IP66

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code XALD328
GTIN —
Stock status: In stock

priced individually

Net price: £78.88

Gross price

£94.66

Schneider Harmony XALD328 complete control station for two-way control with integrated emergency stop.

  • Electrical rating: 3A at 240V AC-15, 6A at 120V AC-15, 0.1A at 600V DC-13.
  • Key features: 2 flush push-buttons (1 NO each, white UP/black DOWN) + 1 red mushroom emergency stop (1 NC).
  • Mechanical durability: 10,000,000 cycles for flush push-buttons.
  • Protection: IP66/67/69/69K, IK03, NEMA 4X/13, operating temperature -40°C to +70°C.
  • Construction: Polycarbonate enclosure, screw clamp terminals, light/dark grey RAL colors.
  • Compliance: Conforms to EN/IEC 60947-1⁄5-1, UKCA, CE marked.
Specifications

Current Rating

3 A at 240 V AC-15, 6 A at 120 V AC-15, 0.1 A at 600 V DC-13

Configuration

Complete control station with 2 flush push-buttons + 1 mushroom head emergency stop

Voltage

Rated insulation voltage 600 V

Contacts

2 NO (flush buttons), 1 NC (emergency stop)

Material

Polycarbonate enclosure

IP Rating

IP66 / IP67 / IP69 / IP69K

IK Rating

IK03

Operating Temperature

-40°C to +70°C

Certifications

EN/IEC 60947-1/5-1, UKCA, CE

Mechanical Durability

10,000,000 cycles (flush push-buttons)

Positive Opening

Yes (conforming to EN/IEC 60947-5-1 appendix K)

Terminals

Screw clamp terminals (≤ 2 x 1.5 mm²)

Schneider Electric
