ZB5AW363SC0

Photo is representative

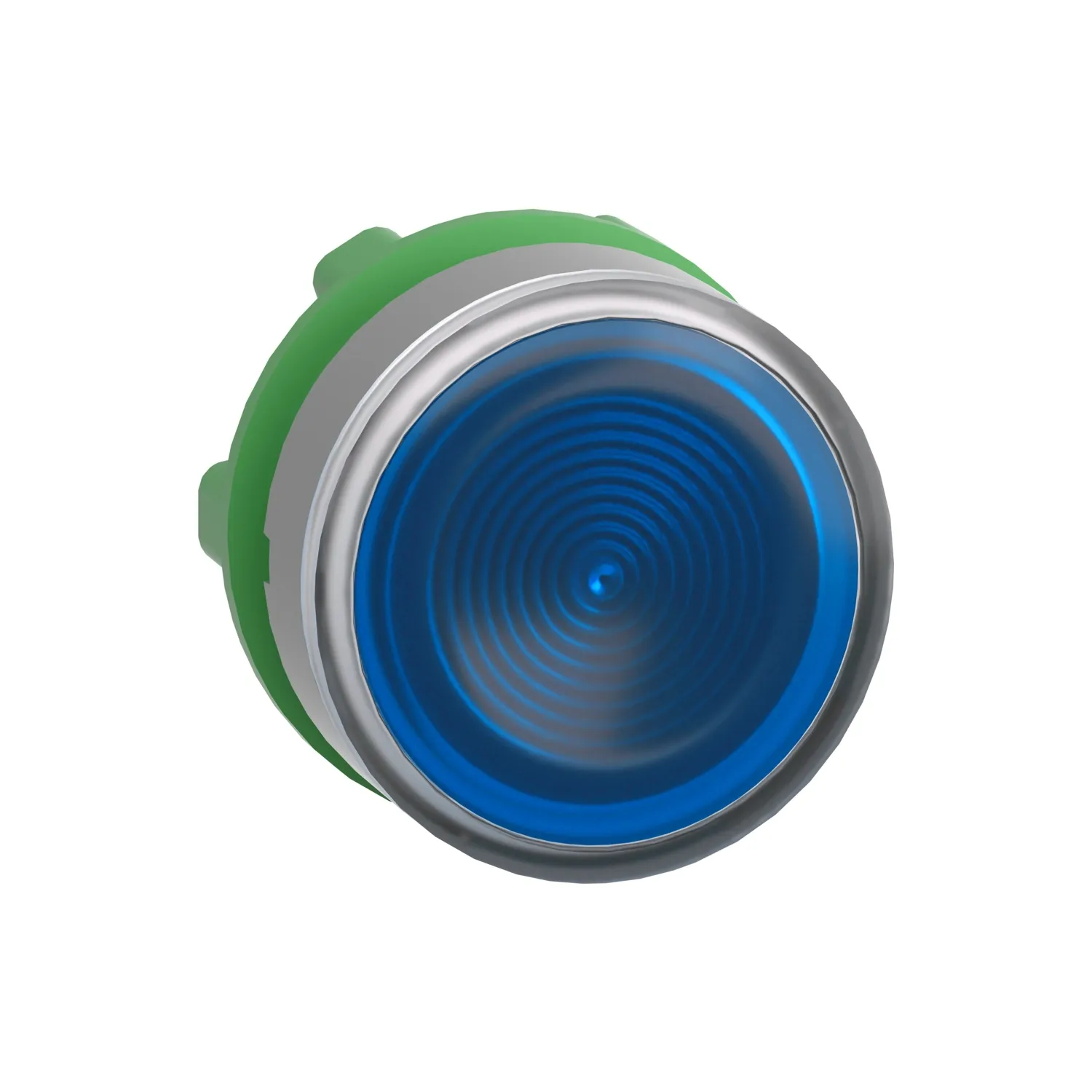

Schneider XB5 Illuminated Push Button Ø22mm Blue IP66/IP67 Panel Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ZB5AW363SC0
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £14.15

Gross price

£16.98

Schneider Harmony XB5 plastic illuminated push button head for Ø22mm panel/enclosure mounting.

  • Key specs: Blue flush head with grooved lens, spring return action, universal LED compatibility.
  • Electrical: Not specified (head only - requires contact block).
  • Construction: Plastic colour plated grey bezel, 22.5mm mounting hole, 30mm depth, vibration/shock resistant.
  • Durability: 10 million mechanical cycles, high pressure washer resistant.
  • Protection: IP66/IP67, IK05 impact, NEMA 13/4X, -40°C to +70°C operation.
  • Compliance: CE/UKCA, UL/CSA, IEC 60947 series, EU RoHS.

Ideal for illuminated control functions in industrial panels and enclosures.

Specifications

Configuration

Head only (requires contact block)

IP Rating

IP66/IP67

IK Rating

IK05

Material

Plastic colour plated grey bezel, blue flush head

Mounting Diameter

22 mm

Head Type

Illuminated push button, flush, blue, grooved lens

Operating Temperature

-40°C to +70°C

Mechanical Durability

10,000,000 cycles

Certifications

CE/UKCA, UL, CSA, IEC 60947-1/5-1/5-4, EU RoHS

Vibration Resistance

5 gn (2-500 Hz)

Shock Resistance

30 gn (18 ms) / 50 gn (11 ms)

Schneider Electric
