AK667832 - Schrack RCBO 4 Pole 32A 30mA C Type

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

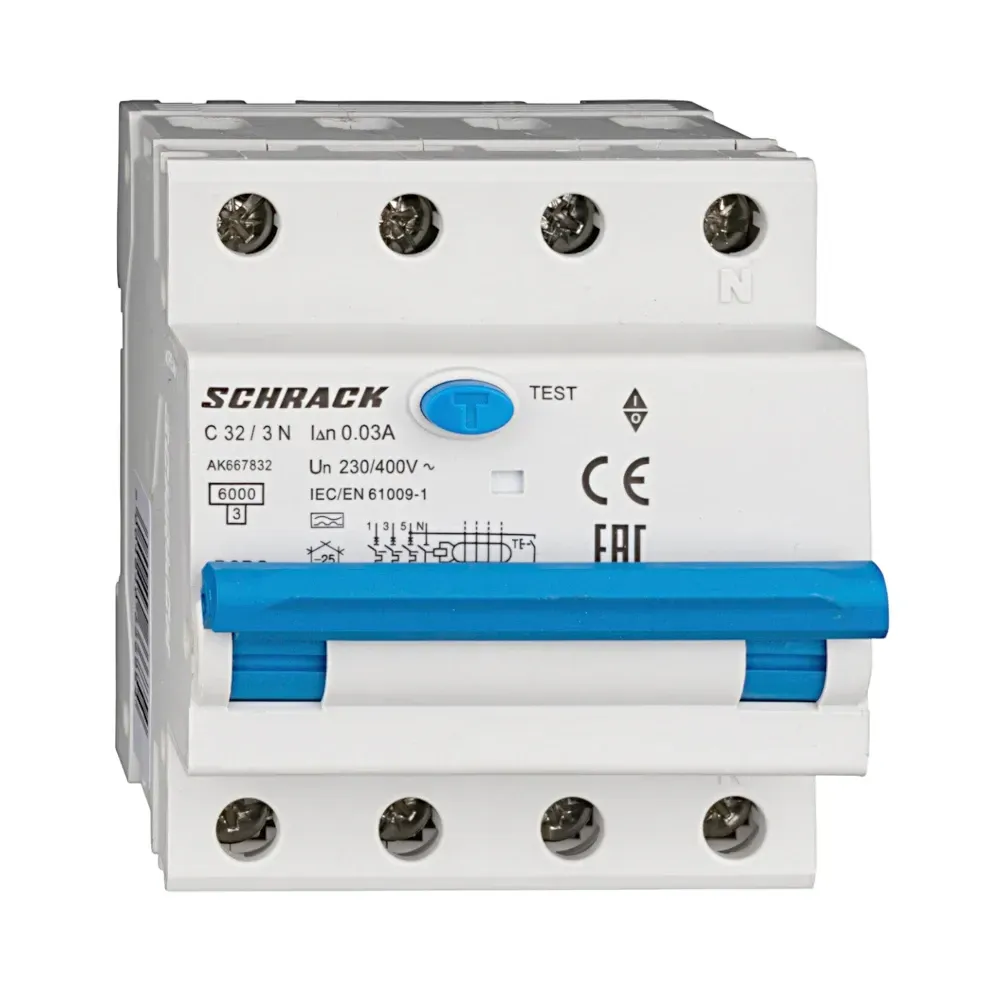

Schrack RCBO 4 Pole 32A 30mA C Type

The Schrack RCBO 4 Pole 32A 30mA C Type is a high-quality residual-current circuit breaker with overcurrent protection. It has a rated sensitivity of 30mA, tripping characteristics of Type C, and a rated breaking capacity of 6kA. This product meets EN 61009-1, EN 61009-2-1, IEC 61009-1, and IEC 61009-2-1 standards.

Stock Code AK667832
Out of stock

Product Features

  • Sku

    AK667832

  • Depth

    77mm

  • Poles

    3+N

  • Width

    71mm

  • Height

    85mm

  • Weight

    0.42kg

  • Power Loss

    13.80W

  • Manufacturer

    Schrack

  • Product Category

    A

  • Product Standard

    EN 61009-1, EN 61009-2-1, IEC 61009-1, IEC 61009-2-1

  • Rated Sensitivity

    30mA

  • Ambient Temperature Max

    60 C

  • Ambient Temperature Min

    -25 C

  • Rated Breaking Capacity

    6kA

  • Tripping Characteristics

    Type C
