Metalclad 45A 2G DP Switch with Neon Vertical 250V Grey

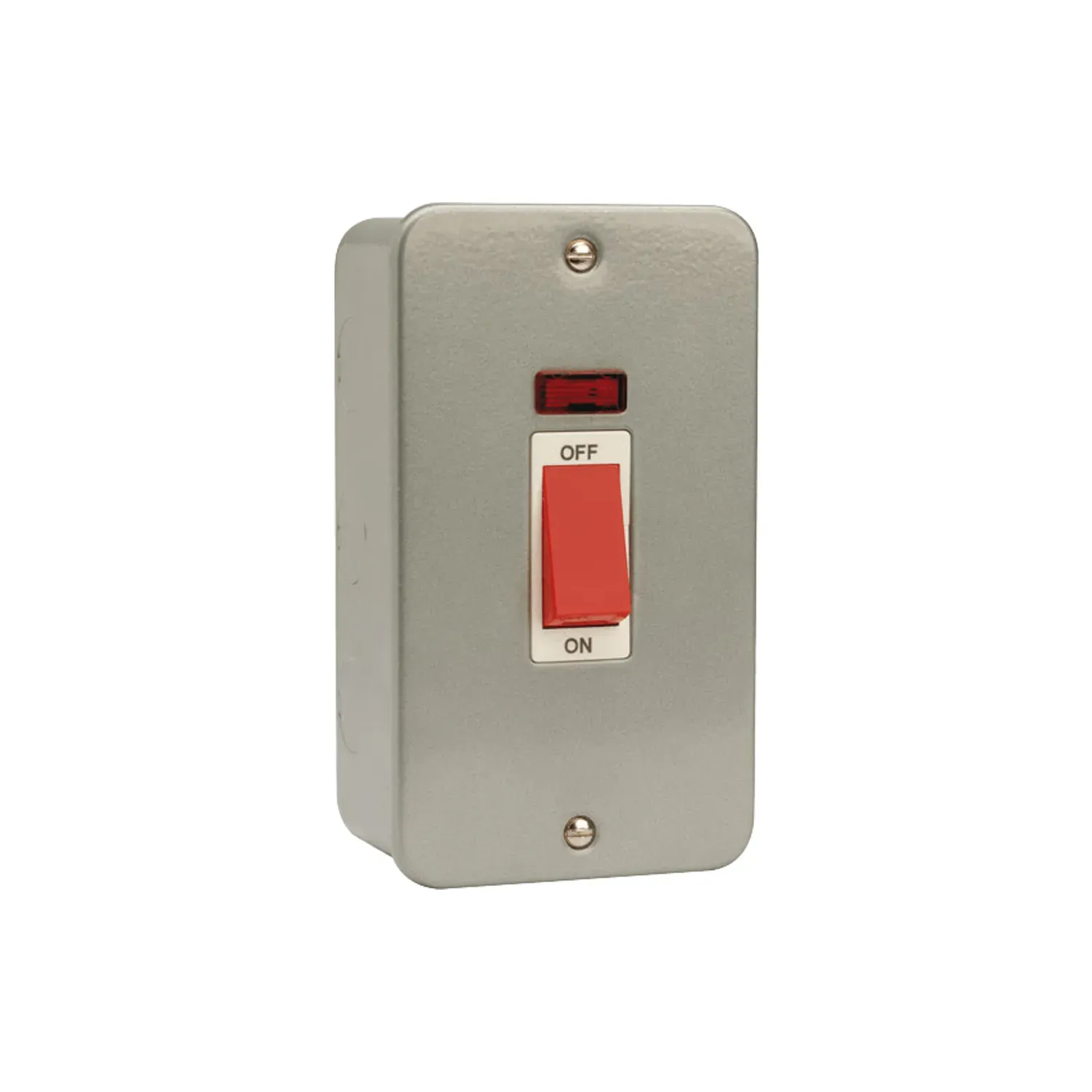

Photo is representative

Click Essentials Metalclad 45A 2G DP Switch with Neon Vertical 250V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CL203
GTIN
Stock status: Out of stock

priced individually

Net price: £17.25

Gross price

£20.70

45A 2 gang double pole switch, metalclad style with neon indicator. Vertical orientation. 250V AC rated for resistive loads.

  • Screw terminals, 16mm² solid capacity per terminal
  • Neon indicator (red lens), On/Off marking
  • Supplied with 50mm deep back box, 7 knockouts total
  • Earth terminal in back box
  • IP20 ingress protection
  • Operating range -5°C to +40°C
Specifications

Configuration

2 Gang Double Pole

Orientation

Vertical

Current Rating

45A

Operating Voltage

250V AC

Frequency

50Hz

Termination Type

Screw Terminal

Terminal Size

Ø6mm

Terminal Capacity Solid

1 x 16mm²

Terminal Torque Value

2.5Nm

IP Rating

IP20

Operating Temperature

-5°C to +40°C

Dimensions

80(W) x 140(H) x 52(D)mm

Back Box Depth

50mm

Neon Indicator

Yes, Red

Compliance

BS EN 60669-1

Documents
