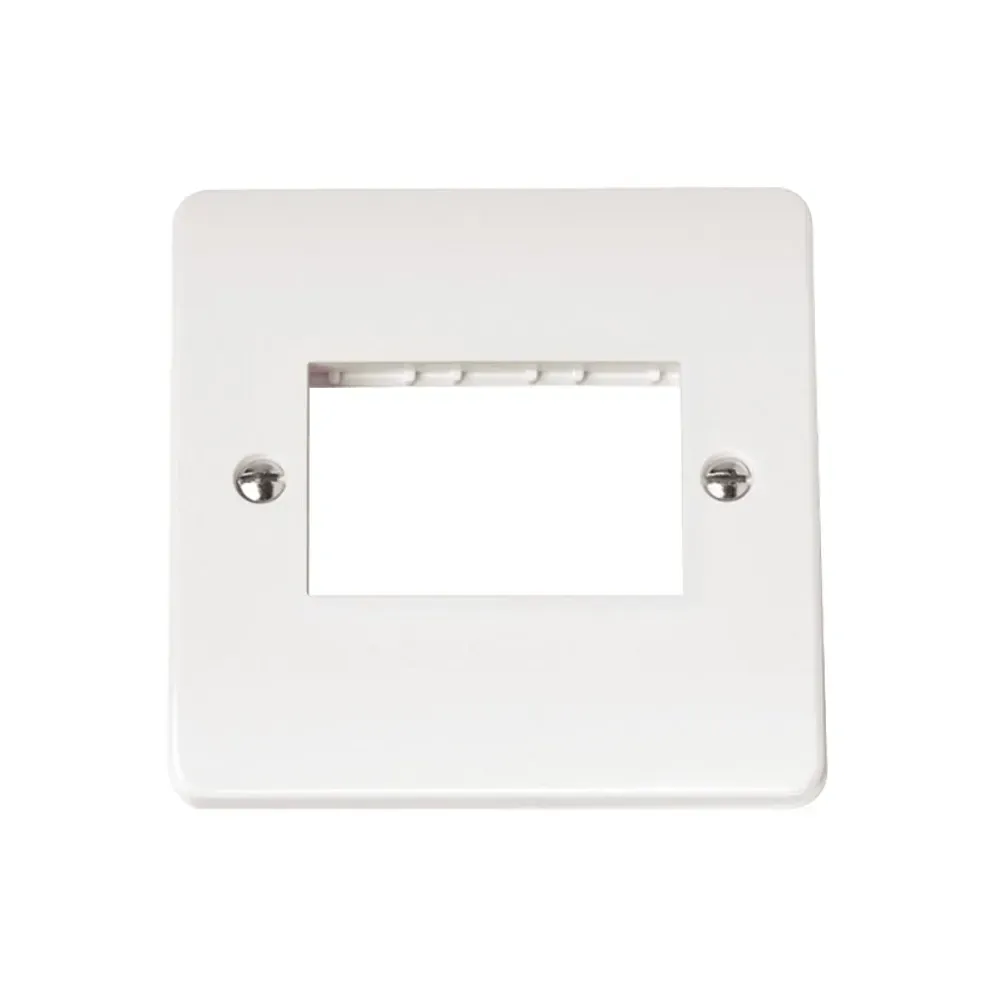

Click CMA403 1-gang MiniGrid unfurnished plate with 3 apertures

Photo is representative

Click CMA403 1-Gang MiniGrid Unfurnished Plate 3 Apertures - White

1-Gang MiniGrid unfurnished plate with 3 module apertures for flexible electrical installations. Accepts 3 single-width or 1 double-width MiniGrid module in standard 86x86mm faceplate format. BS 5733 compliant polar white plate with inherent antimicrobial properties and 99.9% bacteria kill rate. 25-year warranty provides long-term reliability for professional installations. Compatible with Click MiniGrid modular system for custom electrical solutions. 60.3mm fixing centres ensure compatibility with standard electrical accessories. Operates reliably from -5°C to +40°C with IP20 rating for indoor applications.

Stock Code: CMA403

Online:

In stock
Price 1.35 £
incl. VAT, 20% priced individually

Product Features

Gang Configuration 1-Gang with 3 apertures
Module Capacity 3 single-width or 1 double-width modules
Plate Dimensions 86mm (W) x 86mm (H) x 9.5mm (D)
Fixing Centres 60.3mm horizontal spacing
System Compatibility Click MiniGrid modular range
Compliance Standard BS 5733
IP Rating IP20 for indoor use
Operating Temperature -5°C to +40°C
Antimicrobial Properties 99.9% bacteria and virus kill rate
Material Urea Formaldehyde front plate
Colour Polar White
Warranty Period 25 years

Installation Guidelines

Fixing Method

Standard 86x86mm faceplate with 60.3mm horizontal fixing centres. Compatible with UK standard electrical backboxes and pattresses.

Module Assembly

MiniGrid modules clip into apertures before plate installation. Single screw secures complete assembly to backbox for faster installation.

Applications

Custom Control Panels

Create bespoke switching arrangements by combining different MiniGrid modules such as switches, dimmers, and data outlets in one plate.

Office Workstations

Flexible solution for desk-level power and data requirements. Mix USB charging, network connections, and power switching as needed.

Kitchen Installations

Under-cabinet applications where specific combinations of switches and outlets are required. IP20 rating suitable for dry locations only.

Frequently Asked Questions

  • What backbox depth is required for the CMA403 plate?

    Backbox depth depends on the MiniGrid modules fitted. Standard single-width modules typically require 35mm minimum depth, while double-width modules may need 47mm backboxes.

  • Can I fit both single and double width modules together?

    No, you can fit either 3 single-width modules OR 1 double-width module. The 3 apertures cannot accommodate mixed configurations due to physical spacing constraints.

  • Is the CMA403 compatible with other MiniGrid brands?

    The CMA403 is designed specifically for Click MiniGrid modules. Cross-compatibility with other manufacturers' modular systems is not guaranteed due to proprietary dimensions.

  • What makes this plate antimicrobial?

    The Urea Formaldehyde material has inherent antimicrobial properties, tested to kill 99.9% of bacteria including MRSA, E-Coli, and Salmonella, plus 99.9% virus elimination.
