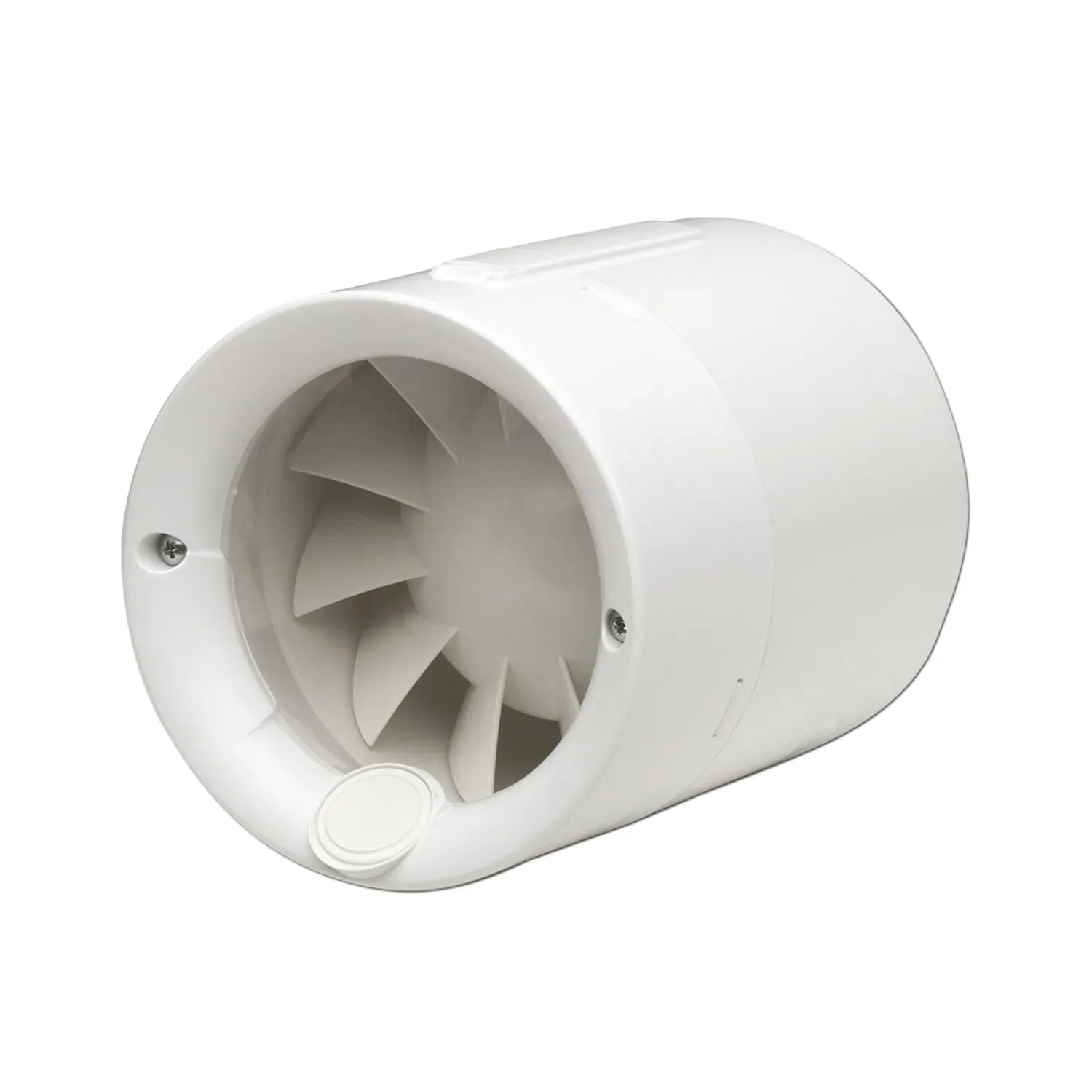

Soler Palau SILENTUB-100 100mm Inline Axial Fan 230V IP44

Photo is representative

Soler Palau SILENTUB-100 100mm Inline Axial Fan 230V IP44

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SILENTUB-100
GTIN
Stock status: Out of stock

priced individually

Net price: £49.31

Gross price

£59.17

Compact inline axial fan from S&P’s SILENTUB series. Installs directly into a 100mm duct run or flush-mounts into a wall — motor is concealed in the duct rather than on the grille face.

Designed for small room ventilation or air/heat exchange between adjoining rooms. Motor sits on silent-elastic-blocks to damp vibration. Fitted with an automatic backdraft shutter to stop cold air ingress when idle. Ball bearings throughout.

  • Airflow: 100 m³/h at free discharge
  • Noise: 37.5 dB(A) at 1.5 m
  • Supply: 230V 1PH 50Hz, 12 W max
  • IP44, Class II double insulation
  • Optional PIE-100120 foot for surface wall fixing
Specifications

Supply Voltage

230V 1PH 50Hz

Max Absorbed Power

12 W

Airflow (Free Discharge)

100 m³/h

Sound Pressure Level

37.5 dB(A) at 1.5 m, fan inlet, free field

Motor Speed

2450 rpm

Duct Diameter

100 mm

IP Rating

IP44

Insulation Class

Class II

Motor Mounting

Silent-elastic-blocks

Bearings

Ball bearings

Backdraft Shutter

Automatic

Overall Length

131 mm

Body Diameter

99.6 mm

Weight

0.5 kg

Performance Standard

ISO 5801 and AMCA 210-99
