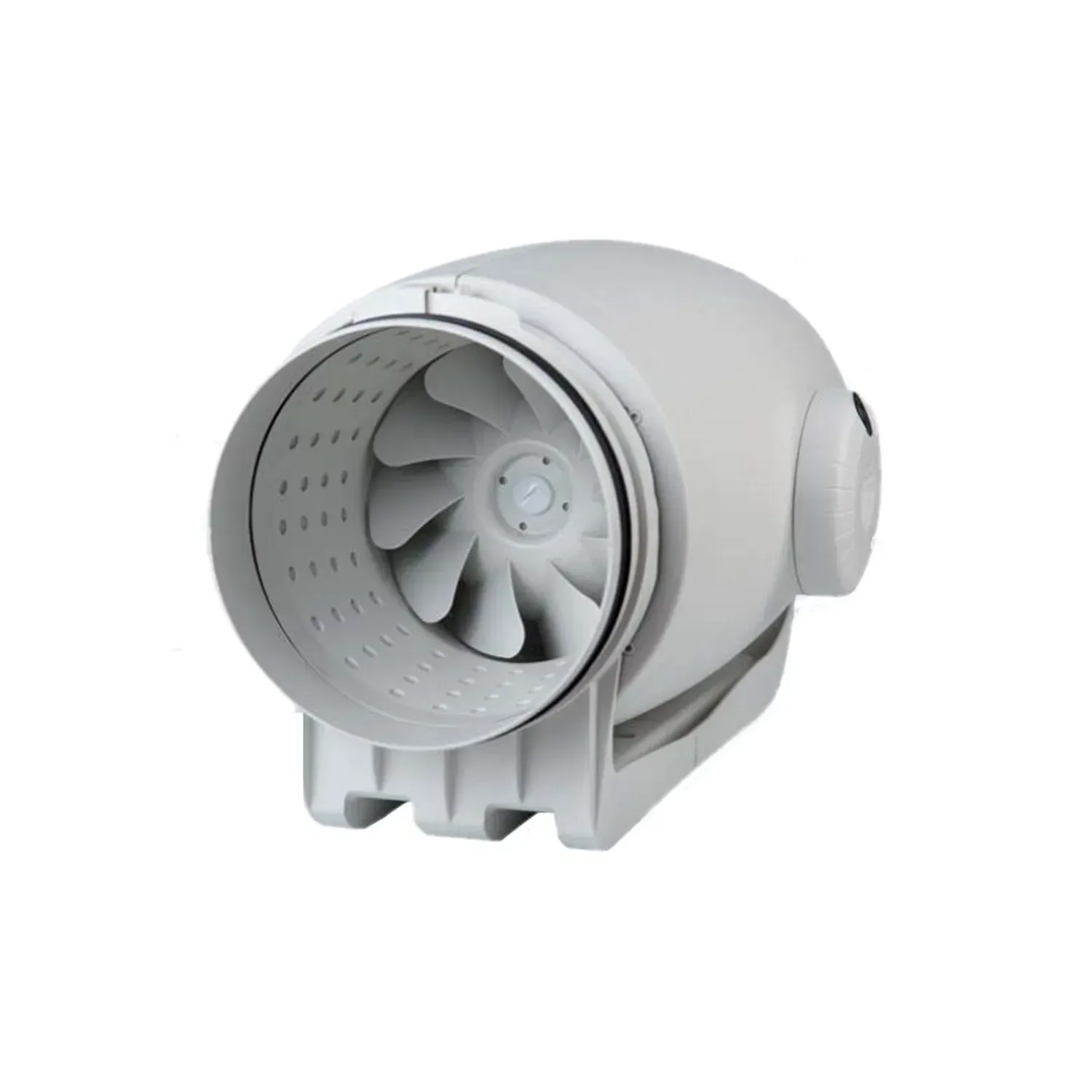

Soler Palau TD-160 100 N SILENT 230V Mixed Flow Inline Duct Fan 100mm
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
TD160-100
GTIN
—
Stock status:
Out of stock
priced individually
Net price: £84.08
Gross price
£100.90
100mm mixed-flow inline duct fan from S&P’s TD-SILENT series. Designed for installations where space is tight — 1.4kg, 232mm overall length, suits ceiling voids where a larger unit won’t fit.
Uses S&P’s patented floating motor system: motor is mounted on silent-elastic-blocks that absorb vibration before it transmits to the duct or structure. Two-speed operation — high or low — and compatible with external speed controllers.
- Airflow: 180m³/h high / 140m³/h low at free discharge
- Noise: 24dB(A) high / 21dB(A) low
- Power: 25W high / 12W low
- IP44, Class B motor, ball bearing motor protection
- 100mm duct connection, 230V 1PH 50Hz
