SOLUNA5KLV

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

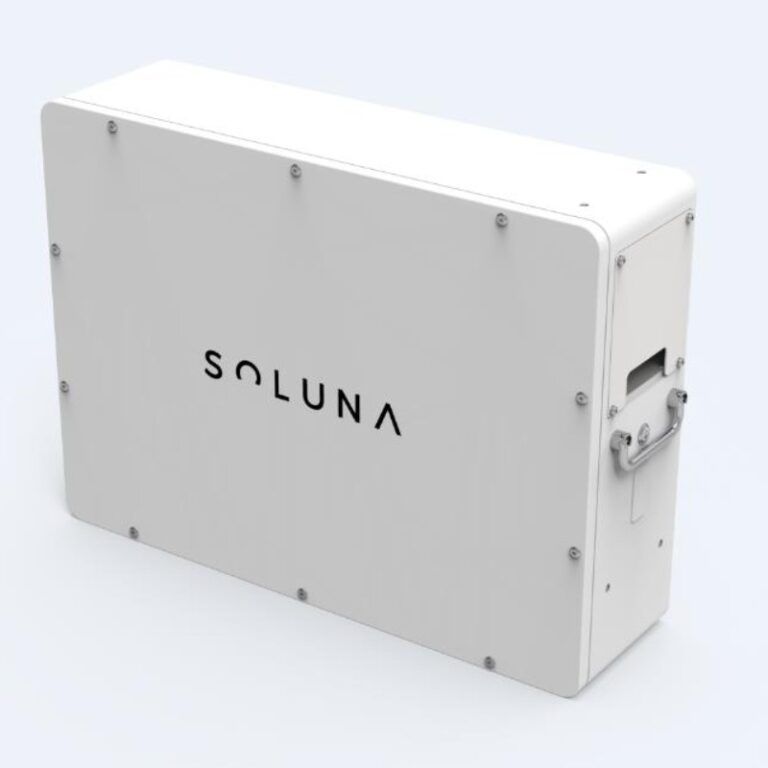

Soluna EOS 5K LV Battery Module

The Soluna EOS 5K LV is a high-performance lithium iron phosphate (LiFePO₄) battery module designed for residential and small commercial energy storage applications. With a nominal capacity of 5.12 kWh and a nominal voltage of 51.2 V, it offers reliable and efficient energy storage solutions.

Stock Code: SOLUNA5KLV
Out of stock

Product Features

  • Battery Type

    Lithium Iron Phosphate (LiFePO₄)

  • Nominal Capacity

    5.12 kWh

  • Nominal Voltage

    51.2 V

  • Usable Voltage Range

    40 to 58.4 V

  • Max. Charge/Discharge Current

    100 A

  • Depth of Discharge (DoD)

    90%

  • Cycle Life

    ≥6000 cycles at 90% DoD

  • Internal Resistance

    ≤60 mΩ

  • Round-Trip Efficiency

    >95%

  • perating Temperature

    -10°C to 50°C

  • Storage Temperature

    15°C to 30°C

  • Humidity Conditions

    5% to 95%

  • Certifications

    UL1642 (Cell), IEC62619 & UL1973 (Battery Module)

  • Communication Ports

    CAN-Wifi, RS485
