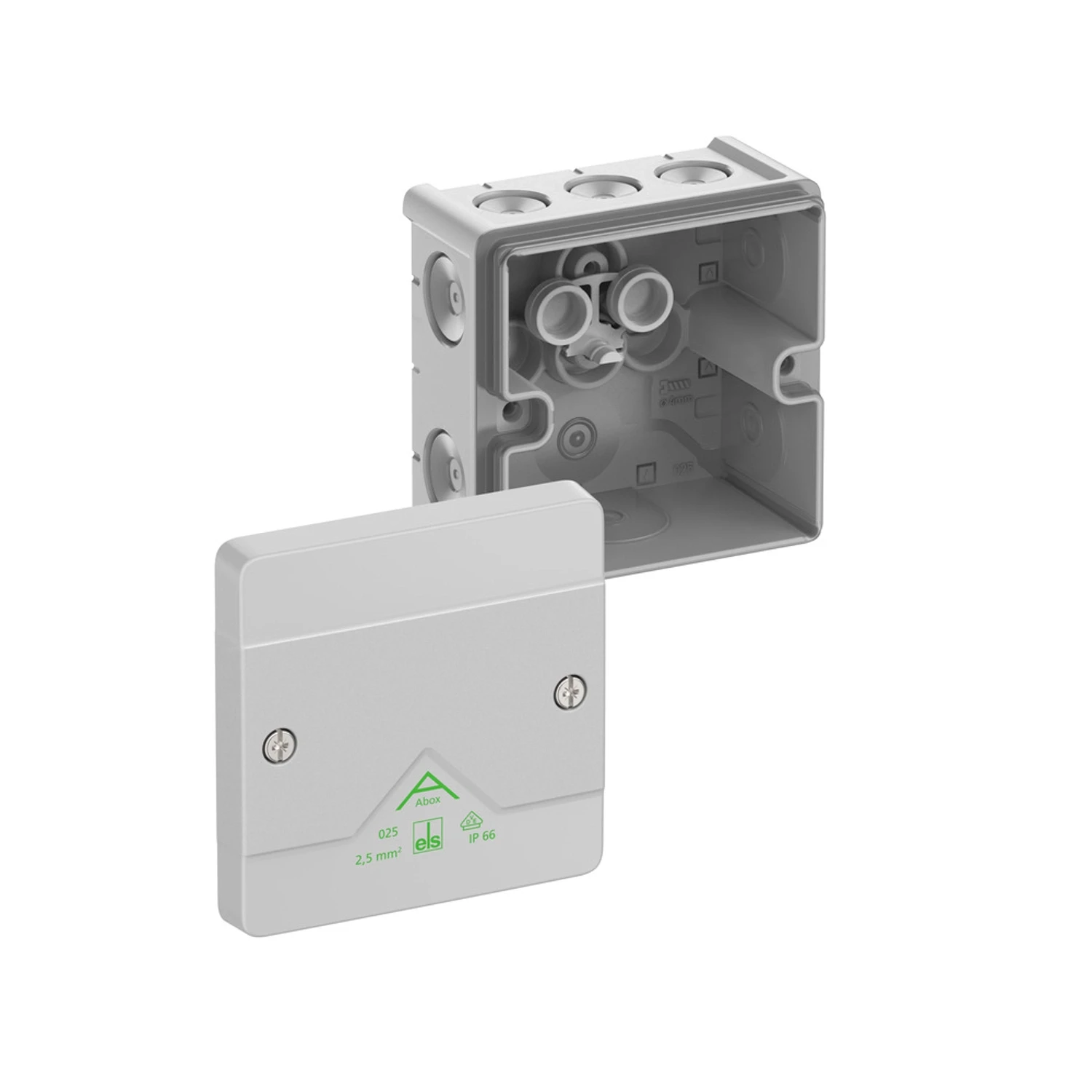

Spelsberg Abox 025-L Junction Box 87×87×52 IP66 Self-Sealing Grey

Photo is representative

Spelsberg Abox 025-L Junction Box 87×87×52 IP66 Self-Sealing Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 80240001
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £7.17

Gross price

£8.61

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Spelsberg Abox 025-L is a Class II polypropylene junction box rated IP66. Suited to standard indoor and protected outdoor installations where a reliable sealed enclosure is needed.

Self-sealing TPE membranes handle cable entry without separate glands. Eight side entries plus one rear entry accept cables from 4–16 mm OD (M16/M20).

  • 87×87×52 mm external, 75×75×37 mm internal
  • Rated 1000 V AC and 1000 V DC
  • IK07 impact resistance
  • UV-resistant, halogen-free polypropylene
  • Stainless steel cover screws (max torque 1.2 Nm)
  • Operating range −25 °C to +55 °C
  • Certified to DIN EN 60670-1/-22 (VDE 0606-1/-22)
Specifications

IP Rating

IP66

Impact Rating

IK07

Rated Insulation Voltage AC

1000 V

Rated Insulation Voltage DC

1000 V

Protection Class

II

External Dimensions

87×87×52 mm

Internal Dimensions

75×75×37 mm

Side Entries

8

Rear Entries

1

Entry Types

M16/M20

Sealing Range

4–16 mm

Max Conductor Cross Section

2.5 mm²

Operating Temperature

−25 °C to +55 °C

Enclosure Material

Polypropylene

Entry / Sealing Material

Thermoplastic elastomer (TPE)

Cover Screw Material

Stainless steel 1.4567 (V2A)

Cover Screw Torque

1.2 Nm

UV Resistant

Yes

Halogen Free

Yes

Glow-Wire Flammability

750 °C (EN 60695-2-11)

Colour

Grey

Weight

0.098 kg

Certification

VDE — DIN EN 60670-1/-22 (VDE 0606-1/-22)

Documents

datasheet 80240001 Datasheet
