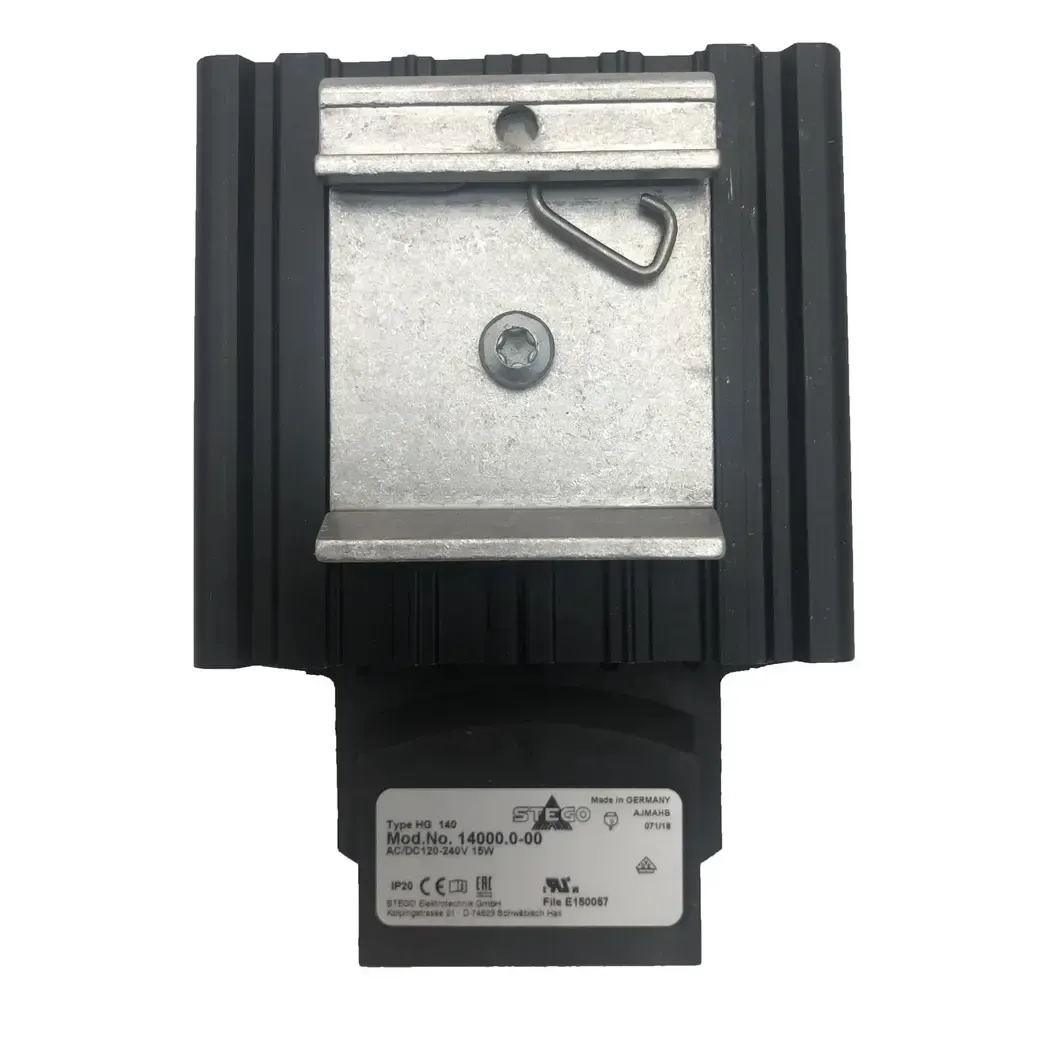

Stego 15W Panel Heater 110-230V Self Regulating HG 14000.000
Compact size panel heater with wide voltage range and self-regulating heating power that adjusts to ambient temperature. Featuring cage clamp connectors for quick and easy wiring and DIN rail mountable design.
Stock Code
8 Available
£93.59
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Approvals
UL File No. E150057 VDE EAC
-
Connection
3 cage clamps for solid wire AWG 20-14 (0.5-2.5 mm ) and stranded wire (with wire end ferrule) - AWG 20-16 (0.5-1.5 mm )
-
Connection Casing
plastic UL 94V-0 black
-
Heater Body
Extruded aluminium profile anodized
-
Heating Element
PTC resistor - temperature limiting
-
Mounting
Clip for 35 mm DIN rail EN 60715
-
Mounting Position
Vertical
-
Operating / Storage humidity
Max. 90 %RH (non-condensing)
-
Operating / Storage temperature
-49 to +158 F (-45 to +70 C)
-
Operating Voltage
AC/DC 120-240 V (min. 110 V max. 265 V)
-
Protection Class / Protection Type
I (grounded) / IP20
-
SKU
14000000
