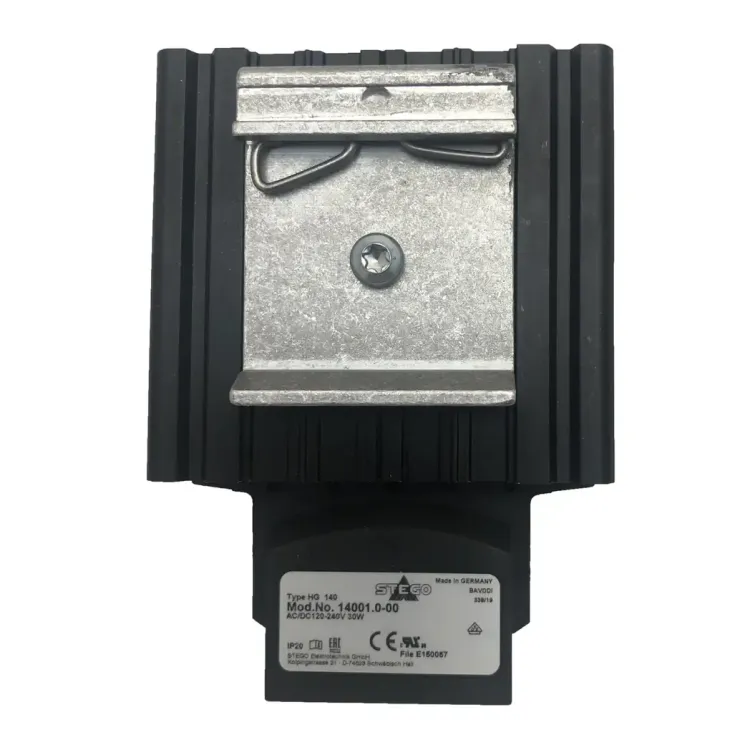

Stego 30W Panel Heater 110-230V Self Regulating HG 140 14001000
Compact size wide voltage range heating power adjusts to ambient temperature. Cage clamp connectors for quick & easy wiring. DIN rail mountable. Prevent condensation damage and maintain temperature above the minimum value in enclosures with this self-regulating panel heater featuring an aluminium profile body design for even heat distribution.
Stock Code
8 Available
£104.24
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Approvals
UL File No. E150057, VDE, EAC
-
Connection
3 Cage Clamps for Solid Wire AWG 20-14 (0.5-2.5 mm ) and Stranded Wire (with Wire End Ferrule) - AWG 20-16 (0.5-1.5 mm )
-
Heater Body
Extruded Aluminium Profile Anodized
-
Heating Element
PTC Resistor - Temperature Limiting
-
Mounting
Clip for 35 mm DIN Rail EN 60715
-
Mounting Position
Vertical
-
Operating / Storage Humidity
Max. 90 %RH (Non-Condensing)
-
Operating / Storage Temperature
-49 to +158 F (-45 to +70 C)
-
Operating Voltage
AC/DC 120-240 V (min. 110 V max. 265 V)
-
Protection Class / Protection Type
I (Grounded) / IP20
-
SKU
14001000
