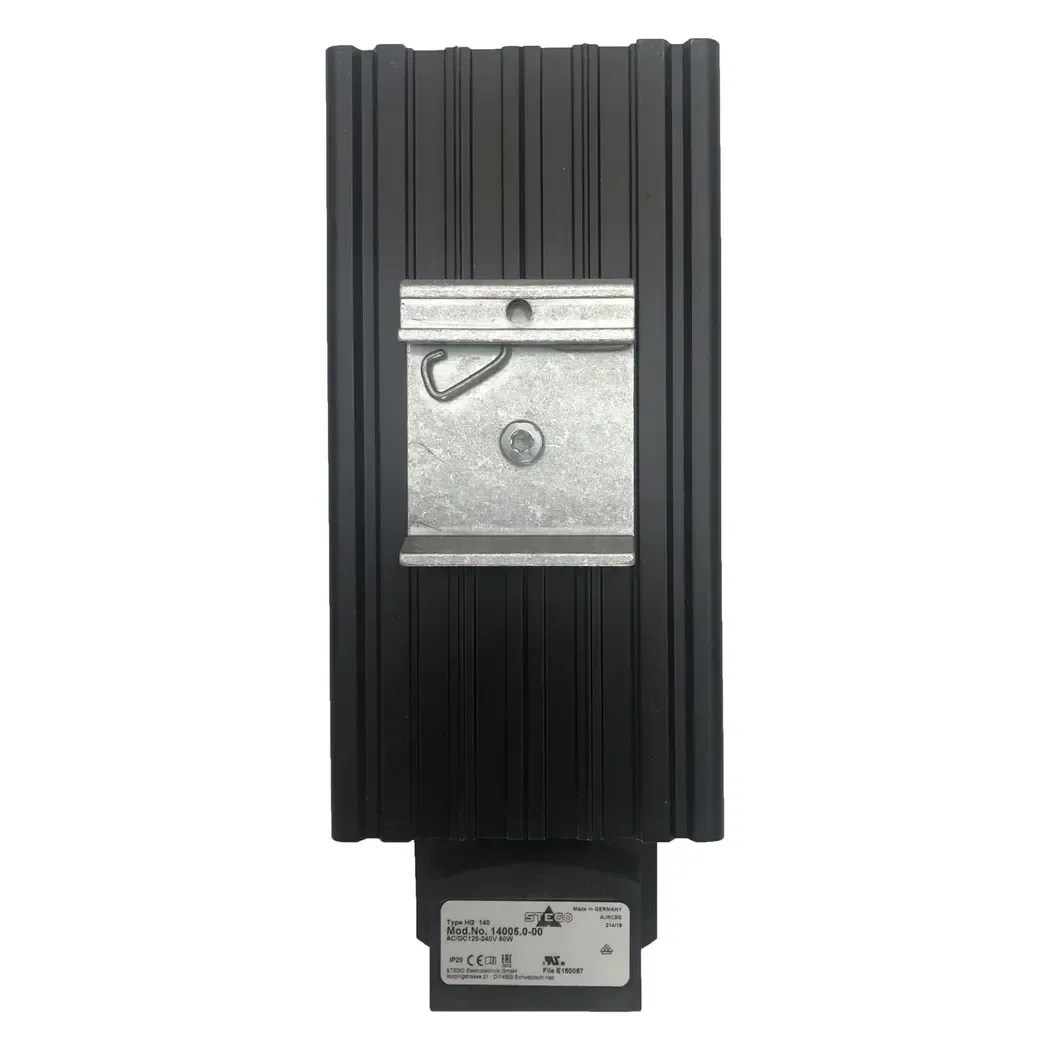

14005000 - Stego 60W Panel Heater 110-230V Self Regulating HG 14005000

Photo is representative

Stego 60W Panel Heater 110-230V Self Regulating HG 14005000

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 14005000
GTIN —
Stock status: 3 in stock

priced individually

Net price: £108.92

Gross price

£130.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Compact size panel heater with wide voltage range, self-regulating heating power that adjusts to ambient temperature. Features cage clamp connectors for quick and easy wiring and DIN rail mountable design.

Specifications

Humidity

Max. 90 %RH (Non-Condensing)

Mounting

Mounting Clip for 35 mm DIN Rail EN 60715

Approvals

UL File No. E150057, VDE, EAC

Connection

3 Cage Clamps for Solid Wire AWG 20-14 and Stranded Wire AWG 20-16

Heater Body

Extruded Aluminium Profile Anodized

Heating Element

PTC Resistor - Temperature Limiting

Protection Class

Grounded (I) / IP20

Connection Casing

Plastic UL 94V-0 Black

Mounting Position

Vertical

Temperature Range

-49 to +158 F (-45 to +70 C)

Operating Voltage1

AC/DC 120-240 V
