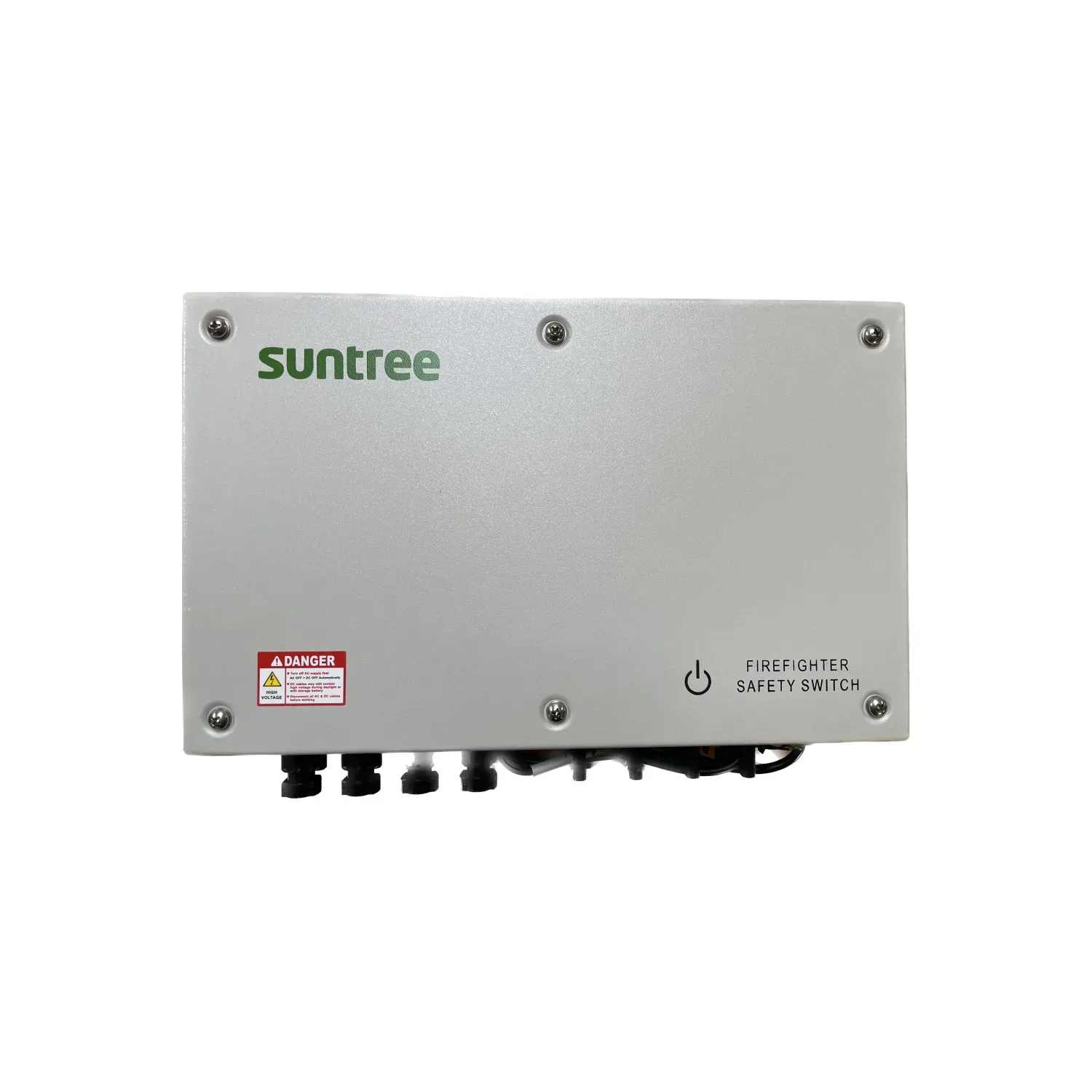

Suntree 40A 8P 1500VDC Firefighter Rapid Shutdown Switch IP65 4 String
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
SISOH404
GTIN
—
Stock status:
Out of stock
priced individually
More arriving soon
Net price: £157.97
Gross price
£189.56
The Suntree S-ISOH40-4 is an 8-pole rapid shutdown switch for 4-string PV arrays. Mounts close to the array and cuts DC when AC supply is lost — firefighter compliance sorted.
Control supply is 230Vac single phase. Also features automatic thermal shutdown at 70°C. Optional dry contact output (DRY-C1/DRY-C2) available for remote status monitoring.
- 1500VDC max, 40A max (de-rated by voltage: 1500V/26A, 1250V/32A, 1000V/40A)
- MC4 DC connectors, plug-in AC connector
- IP65, Class II, CE marked to EN 60947-3
