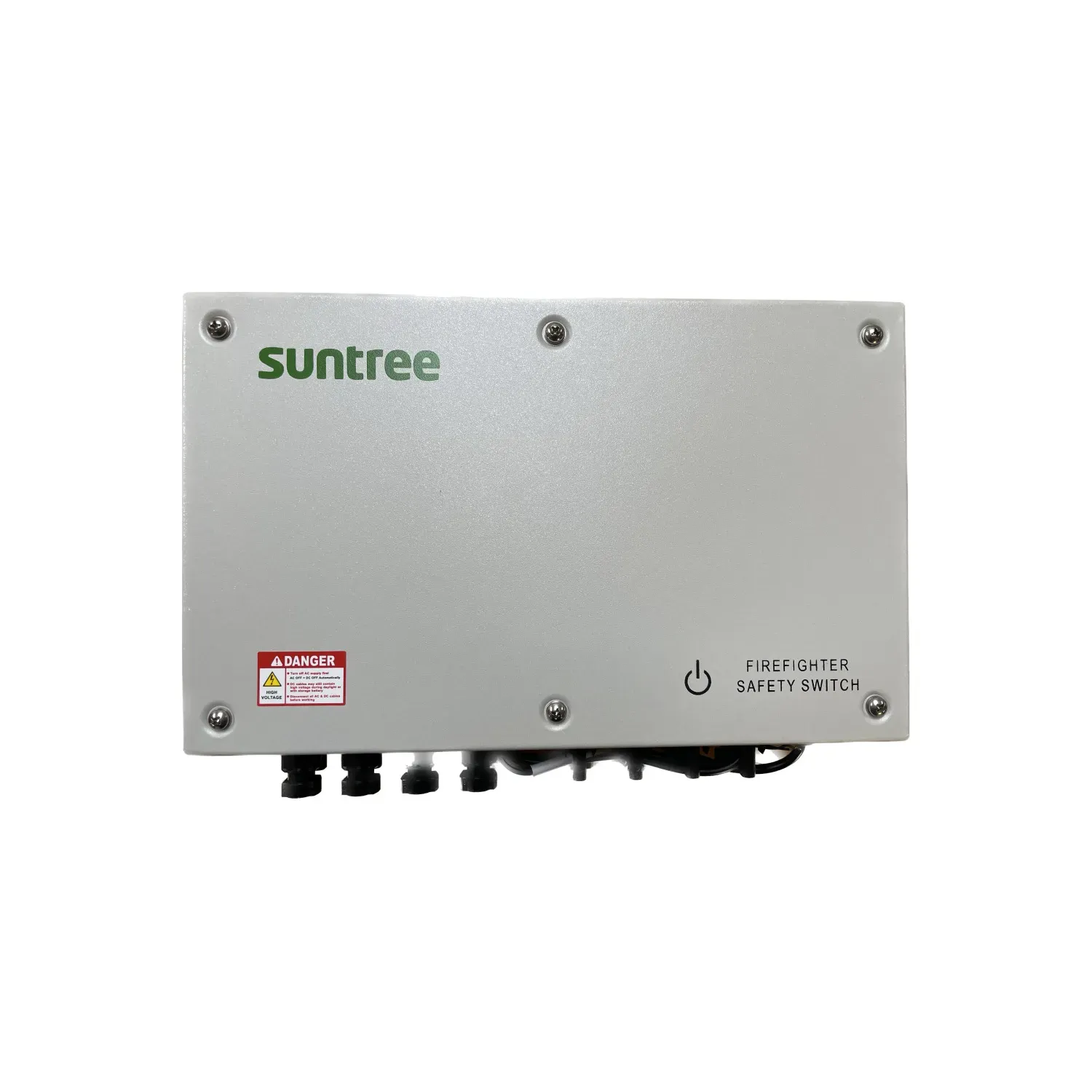

Suntree S-ISOH40-6 Firefighter Safety Switch 1500VDC 40A 6 String 12 Pole IP65
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
SISOH406
GTIN
—
Stock status:
Out of stock
priced individually
More arriving soon
Net price: £233.74
Gross price
£280.49
AC-triggered DC isolator for PV rapid shutdown compliance. Cuts all 6 DC strings when AC supply is lost — motor-driven switching, no manual intervention needed. Designed to mount near the array.
Built-in thermal sensor trips at 70°C. Optional dry contact output (DRY-C1/DRY-C2) for remote status monitoring.
- 1500VDC max, derated to 1000V at 40A full load
- 6 strings, 12 pole, MC4 DC connectors
- Control supply: 100–270Vac, 50/60Hz
- Automatic thermal shutdown at 70°C
- Rated >1,500 operations under load
