SYL-Flex 4 Core 4mm2 Steel Wire Braid Screened Flexible Cable 300 500V Clear PVC Sheath

Photo is representative

SYL-Flex 4 Core 4mm2 Steel Wire Braid Screened Flexible Cable 300 500V Clear PVC Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 44SYL
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £4.27

Gross price

£5.12

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

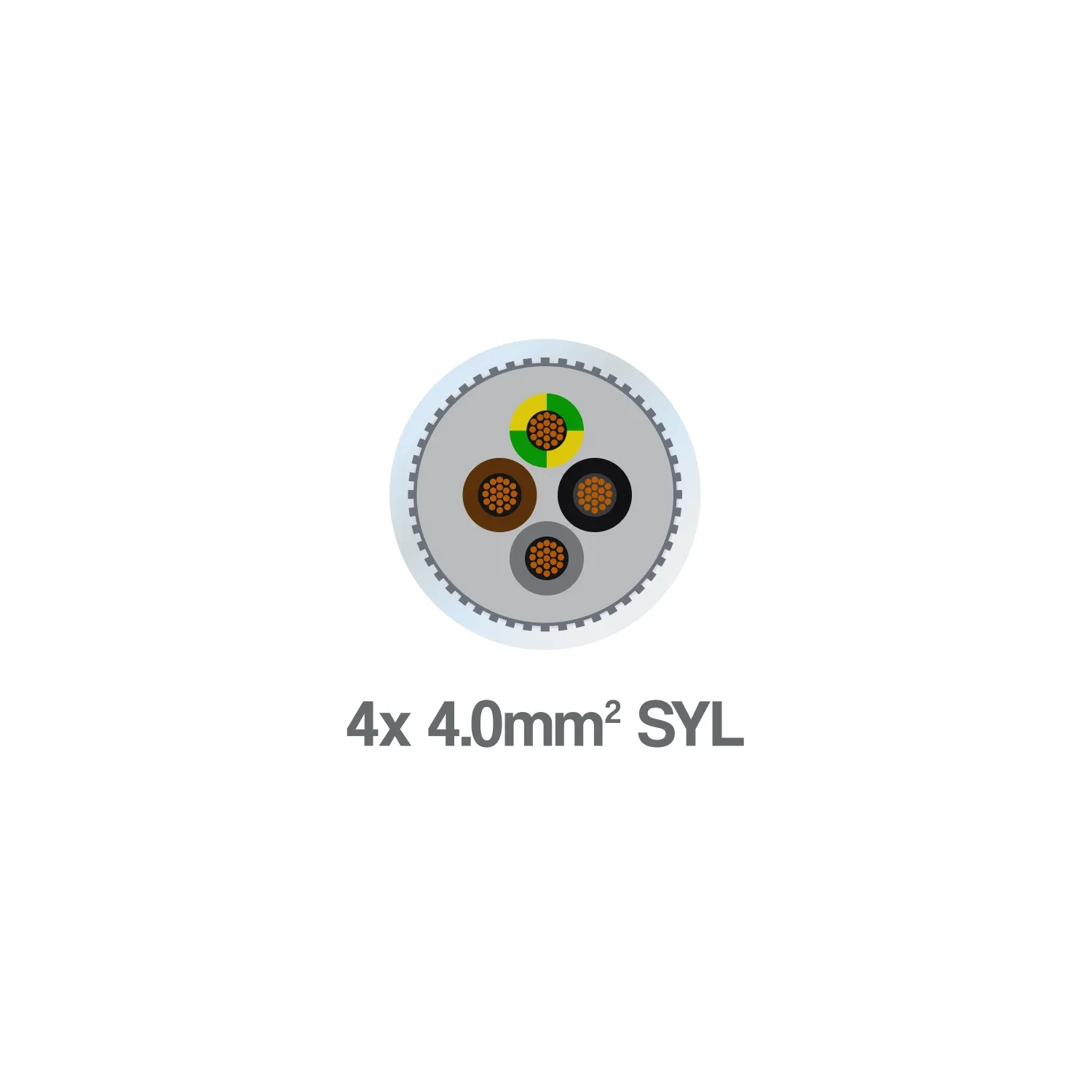

4-core 4mm² SYL-Flex for control, instrumentation and automation applications where mechanical protection is needed. Class 5 plain copper conductors with PVC insulation, galvanised steel wire braid armouring, and a transparent PVC outer sheath. Oil-resistant PVC throughout — suited to machine tool, automotive and processing environments.

  • Voltage: 300/500V
  • Armouring: GSWB (galvanised steel wire braid)
  • Cores: Brown, Black, Grey, Green/Yellow (earth on outer layer)
  • Overall diameter: 15.8mm
  • Operating temp: 0°C to +70°C
Specifications

Number of Cores

4

Conductor CSA

4mm²

Conductor Type

Flexible plain copper, class 5

Core Identification

Brown, Black, Grey, Green/Yellow

Insulation

PVC

Bedding

PVC

Armouring

GSWB (Galvanised steel wire braid)

Sheath

PVC, transparent

Voltage Rating

300/500V

Operating Temperature

0°C to +70°C

Min. Bending Radius

6 x overall diameter

Overall Diameter

15.8mm

Diameter Over Bedding

12.7mm

Diameter Over Armour

13.9mm

Cable Weight

384 kg/km

Standard

VDE 0250
