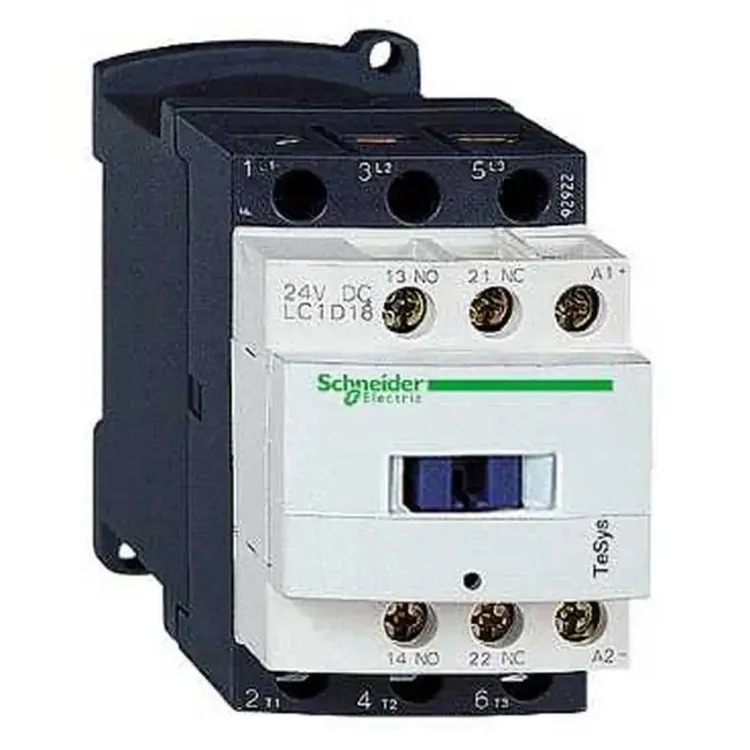

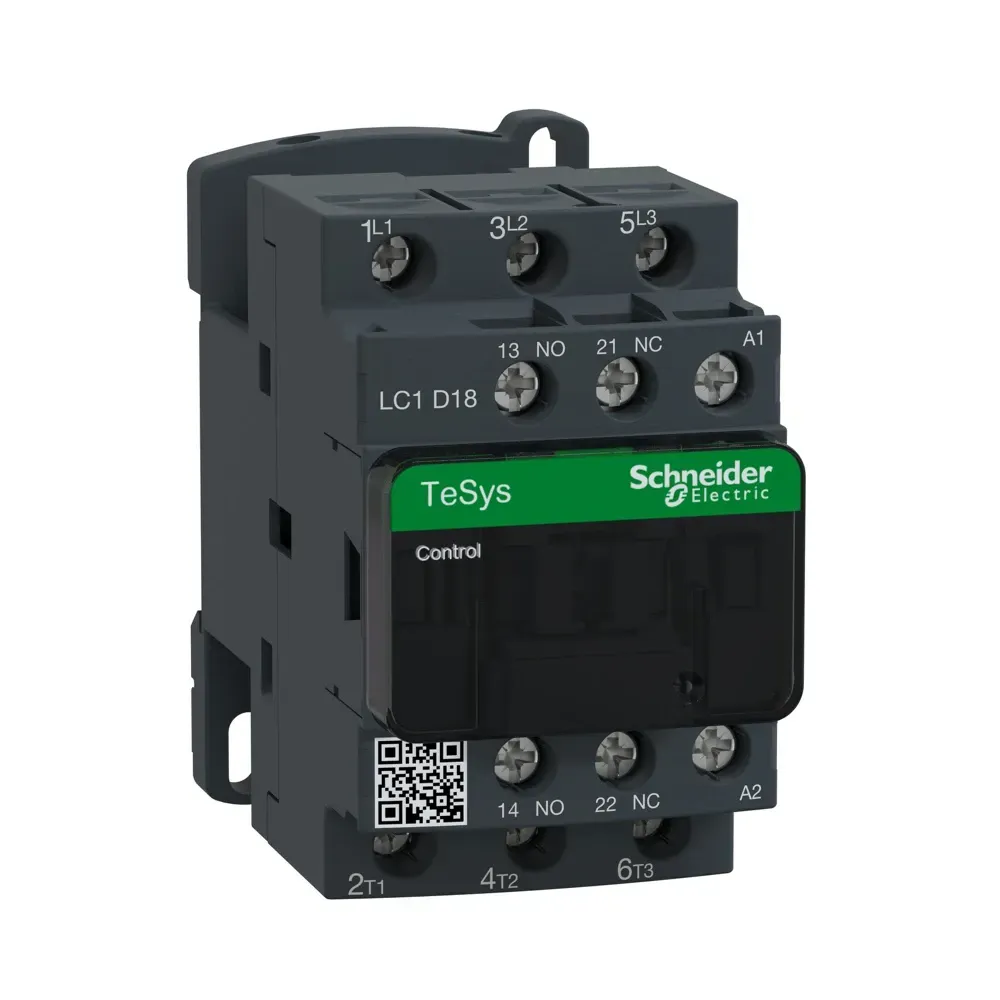

Schneider TeSys D 18A 24V DC 3P contactor LC1D18BD front view

Photo is representative

Schneider TeSys D 18A 24V DC 3P Contactor - LC1D18BD

Schneider TeSys D 18A 24V Coil DC 3P contactor (LC1D18BD), suitable for direct-on-line (DOL) motor starting, reversing, and control applications. AC-3 rated for 18A at up to 440V, supporting three-phase motors up to 9kW at 415/440V. Features include a robust 3NO main contact arrangement, integrated 1NO+1NC auxiliary block, and a DC control coil with integral suppression device. Compact design with screw clamp terminals for secure 35mm DIN rail or panel mounting. Compliance with IEC 60947-4-1 and EN 60947-4-1 ensures suitability for industrial motor control panels and automation systems.

Product Information

Stock Code LC1D18BD
MPN LC1D18BD
GTIN 3389110354775
Stock status: In stock
Price: £98.56
incl. VAT, 20% priced individually

Original price: £109.52

10% off - Save £10.95

Product Features
Current Rating 18A AC-3, 32A AC-1 at ≤440V
Control Coil 24V DC (integral suppression device)
Contact Configuration 3P (3NO) main contacts + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or panel mount
Motor Rating Up to 9kW at 415/440V AC-3
Mechanical Life 30 million operations
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA

Brand

Schneider Electric
