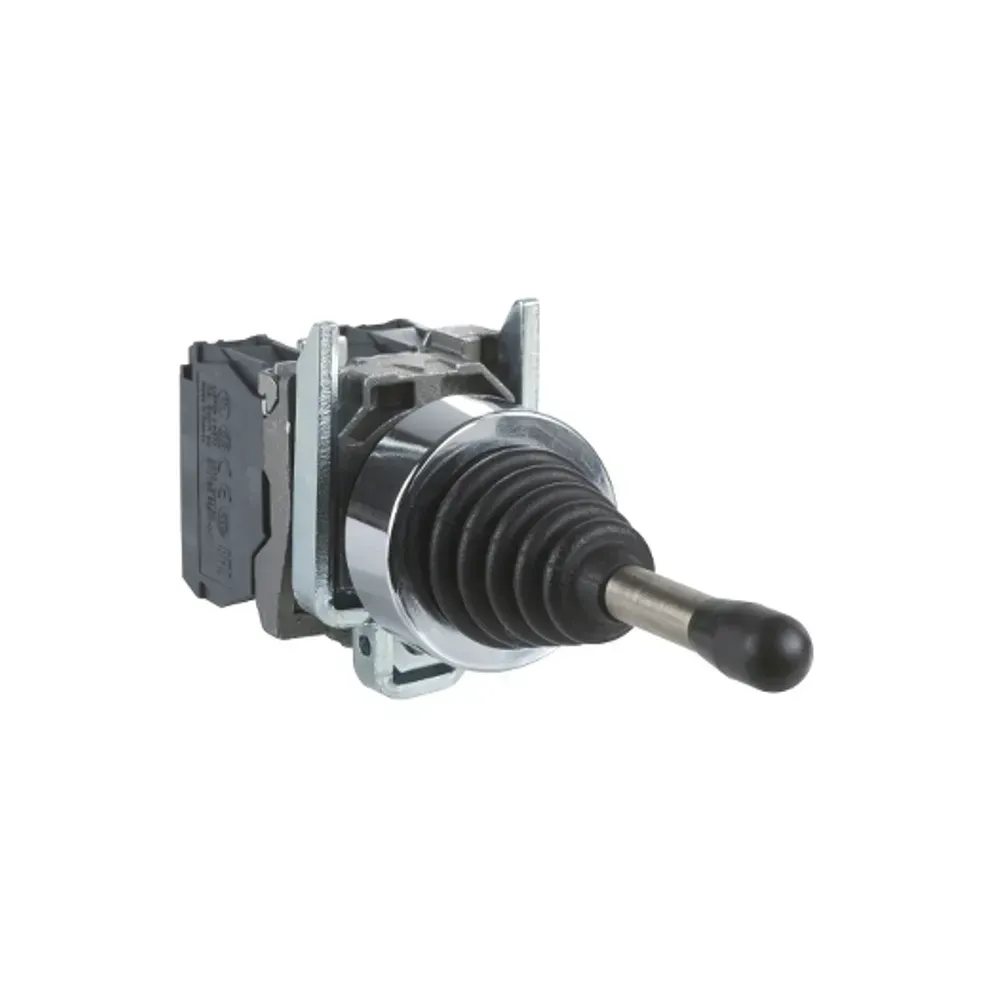

Telemecanique 22mm XB4 1NO 2 Direction Joystick Controller

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Telemecanique 22mm XB4 1NO 2 Direction Joystick Controller

The Telemecanique XD4PA22 is a robust joystick controller offering 2-direction spring return functionality with a single normally open contact. Built with a metal bezel and rated IP66, it’s ideal for industrial control applications requiring durability and precision.

Features include:

  • 2-direction joystick with spring return to center
  • 1 NO contact (slow-break)
  • 22.5mm mounting diameter for standard cutouts
  • Chromium-plated metal bezel with Zamak collar
  • 54mm long operating shaft, 3-position control
  • Screw clamp terminals for secure connections
  • IP66 rated – resistant to dust, water, impact, and vibration
  • Compatible with Harmony XB4 control systems
  • Ideal for precise machinery control in harsh environments
Stock Code XD4PA22
In stock
Price 155.25 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    XD4PA22

  • Product Type

    Complete Joystick Controller

  • Contacts Type

    1 NO

  • Bezel Material

    Chromium Plated Metal

  • Operator Profile

    54 mm Long Operating Shaft

  • Device Short Name

    XD4

  • Mounting Diameter

    22 mm

  • Operator Position

    3 Positions

  • Operator Direction

    2 Directions

  • Connections Terminals

    Screw Clamp Terminals

Documents

Brand

Schneider Electric
