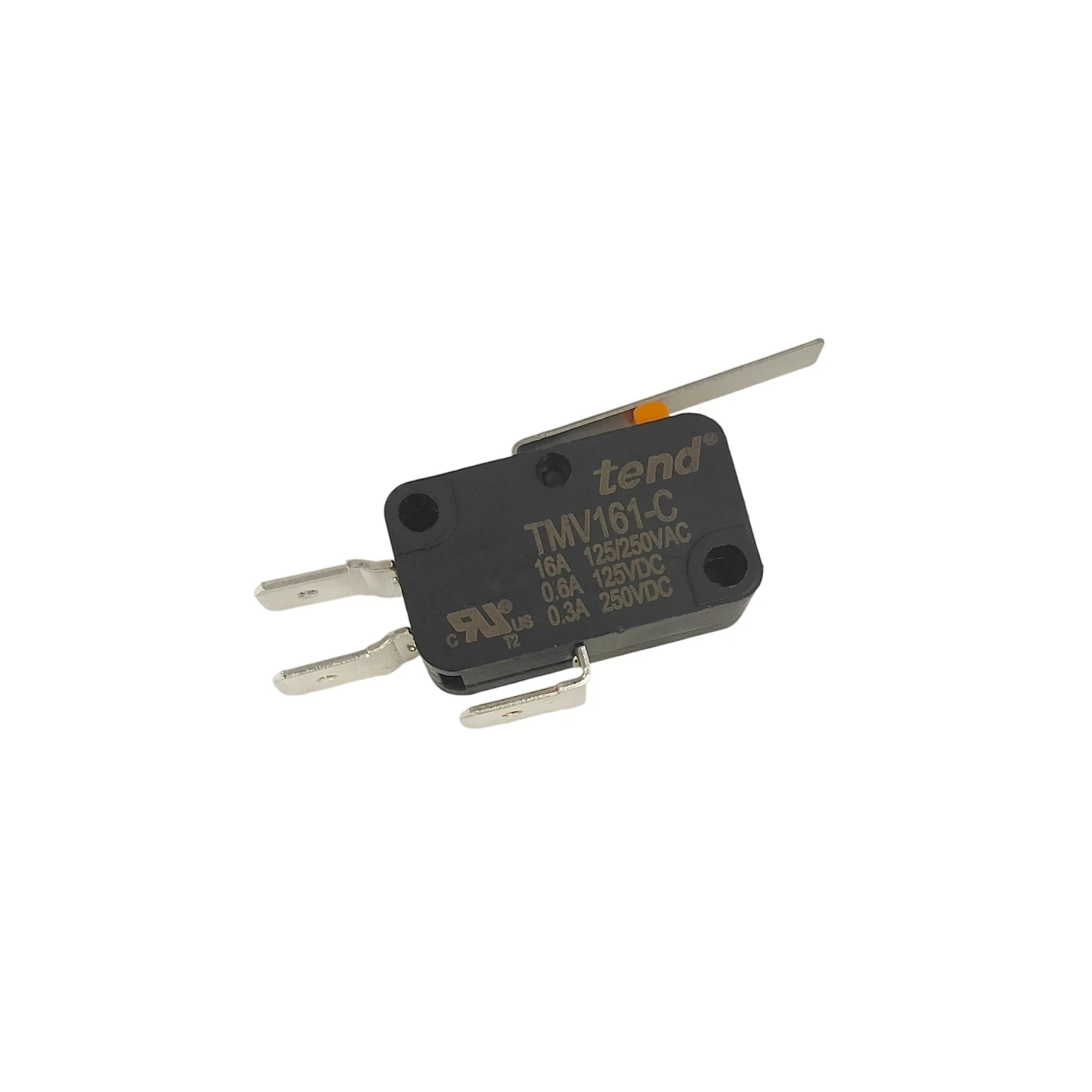

Photo is representative

Tend TMV161-C Micro Switch Short Lever Arm 15A 250V V3 Type SPDT

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VS15N021C
GTIN —
Stock status: 2 in stock

priced individually

More arriving soon

Net price: £5.73

Gross price

£6.87

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SPDT micro switch from Tend’s TM series. Short lever arm actuator makes it the TMV161-C variant — suits mechanical limit and position switching in control circuits.

Rated for resistive loads up to 15A at 250VAC. IP40 enclosure class.

  • Contact form: SPDT
  • Contact rating: 15A 250VAC (resistive)
  • Operating temp: -25°C to +85°C
  • Mechanical life: 10,000,000 ops (no load)
  • Electrical life: 50,000 ops (rated load)
Specifications

Contact Rating

15A 250VAC (resistive load)

Contact Form

SPDT

Actuator Type

Short lever arm

IP Rating

IP40

Operating Temperature

-25°C to +85°C

Mechanical Life

10,000,000 operations (no load)

Electrical Life

50,000 operations (rated load)

Insulation Resistance

≥100 MΩ at 500VDC

Dielectric Strength

1500VAC, 1 minute

Contact Resistance (Initial)

≤30 mΩ

Vibration Resistance

10–55 Hz, 1.5 mm double amplitude

Shock Resistance (Malfunction)

10G min

Shock Resistance (Destruction)

100G min

Terminal Type

Solder/quick-connect
