VS15N051C

Photo is representative

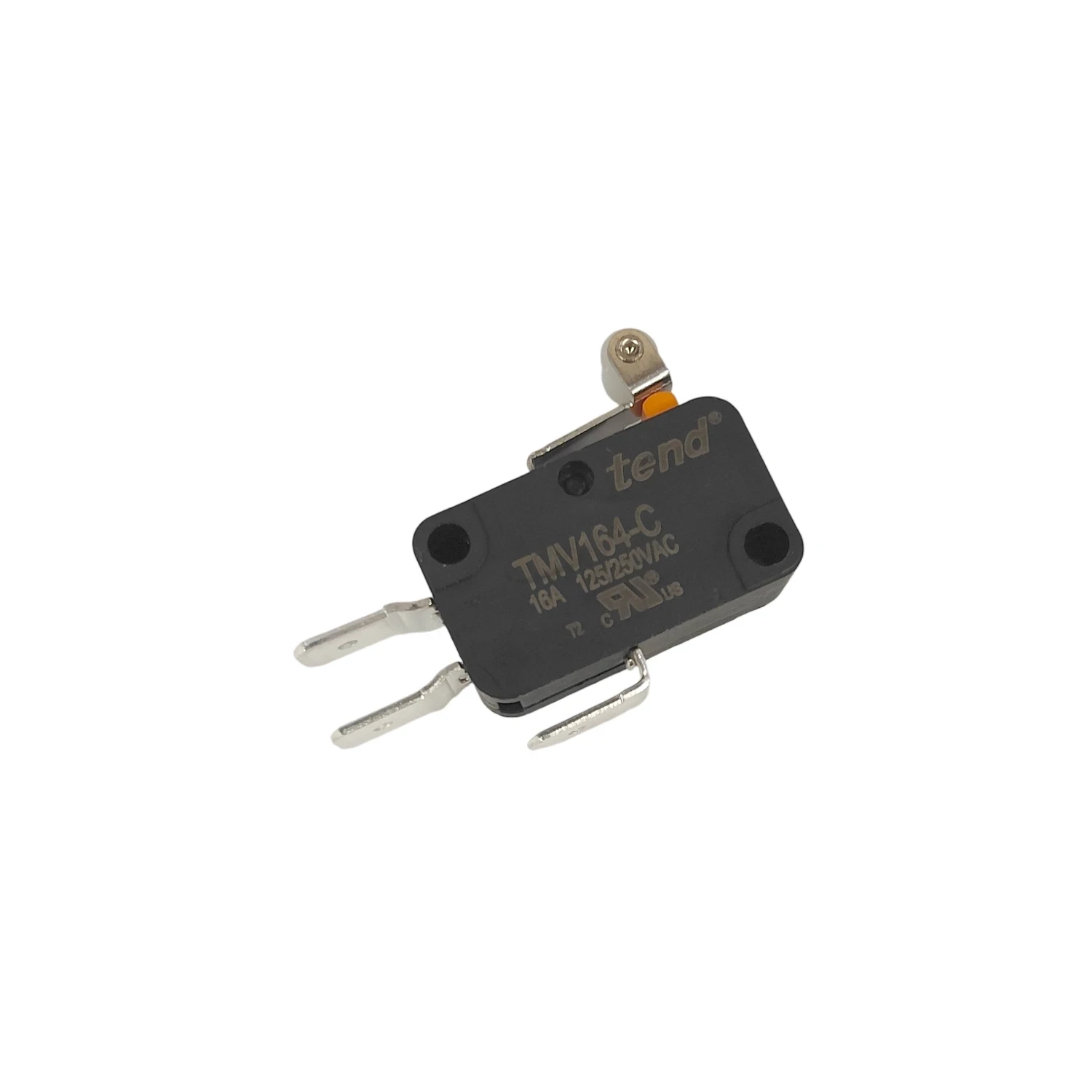

Tend TMV164-C Micro Switch Short Roller Arm 15A 250V SPDT IP40

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VS15N051C
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.73

Gross price

£6.87

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Tend TMV164-C is an SPDT micro switch with a short roller lever actuator. Suits position detection and limit switching in industrial and general-purpose control applications.

Quick-connect (6.3 mm) terminals. Panel or screw mount. Black thermoplastic housing.

  • Contact config: 1NO/1NC (SPDT)
  • Rated current: 15A at 250VAC
  • Insulation voltage (Ui): 500V
  • Mechanical life: 10,000,000 operations
  • Electrical life: 100,000 operations at rated load
  • Approvals: UL, CSA, CE
Specifications

Contact Configuration

1NO/1NC (SPDT)

Actuator Type

Short roller lever

Rated Current

15 A

Rated Voltage (AC)

250 VAC

Rated Voltage (DC)

30 VDC

Rated Insulation Voltage (Ui)

500 V

Rated Frequency

50/60 Hz

IP Rating

IP40

Terminal Type

Quick-connect 0.250 in / 6.3 mm

Operating Temperature

-25 °C to +80 °C

Mechanical Life

10,000,000 operations (no load)

Electrical Life

100,000 operations at 30 ops/min

Contact Material

Silver alloy

Weight

Approx. 7.5 g
