VS15N031C

Photo is representative

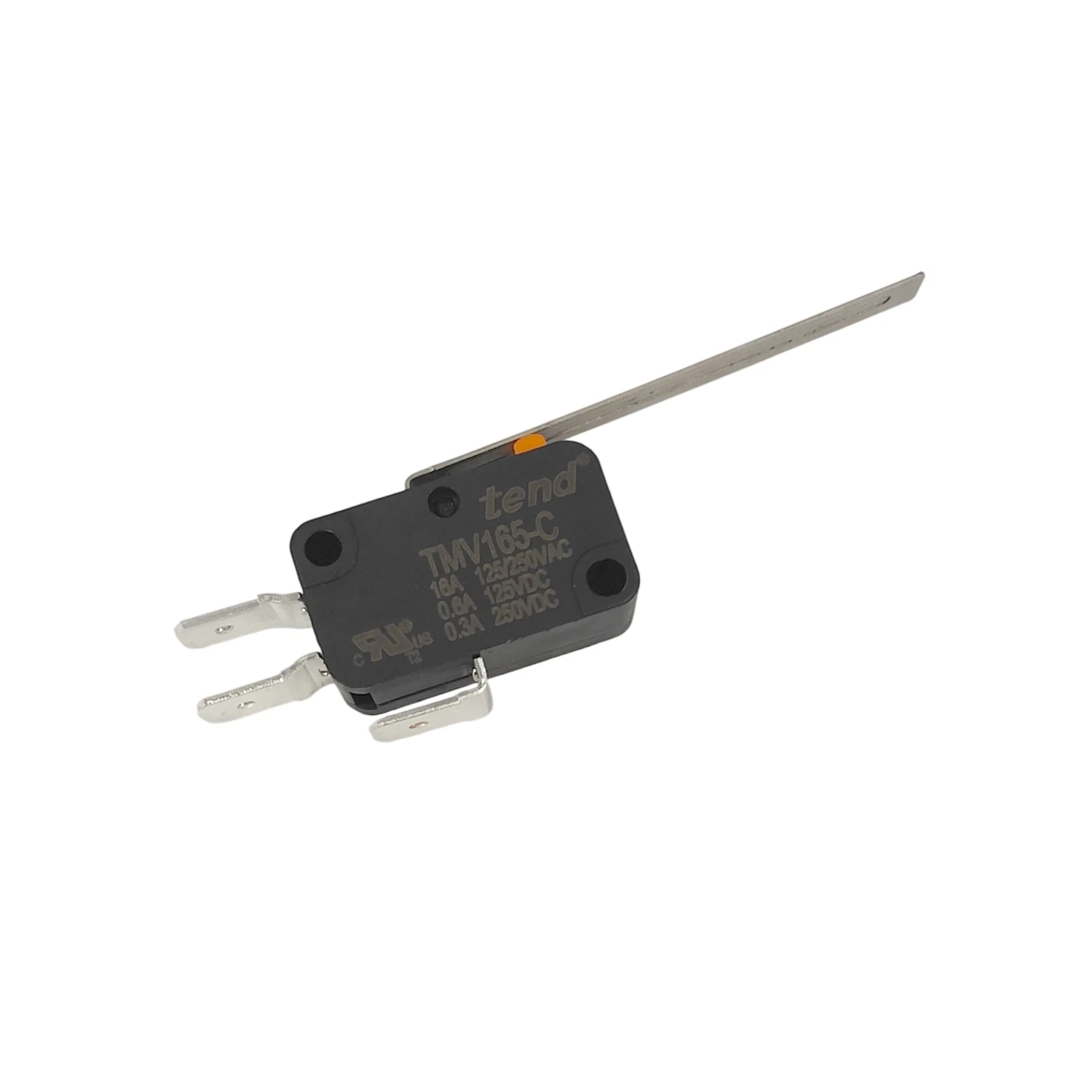

Tend TMV165-C Micro Switch Long Arm Lever 15A 250VAC V3 Type

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VS15N031C
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.73

Gross price

£6.87

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Long arm lever micro switch from Tend’s TM series. V3 type configuration, used for position detection and limit switching in control circuits.

Handles resistive loads up to 15A at 125VAC and 250VAC. Motor load rated to 1 HP at 250VAC. Operating temperature range covers -25°C to +80°C — suitable for industrial environments.

  • Rated current: 15A at 250VAC
  • Inrush current: 30A at 125/250/500VAC
  • Operating speed: 0.1 mm/s to 1 m/s
  • Mechanical life: 10⁶ operations
  • Weight: approx. 12 g
Specifications

Rated Current

15 A

Rated Voltage

250 VAC

Other Rated Voltages

125 VAC, 500 VAC

Inrush Current (125/250/500 VAC)

30 A

Resistive Load (250 VAC)

15 A

Inductive Load (250 VAC)

6 A

Motor Load (250 VAC)

1 HP

Motor Load (125 VAC)

1/2 HP

Operating Speed

0.1 mm/s to 1 m/s

Mechanical Operating Frequency

120 operations/min

Electrical Operating Frequency

30 operations/min

Contact Resistance (Initial)

≤ 15 mΩ (at 6–8 VDC, 1 A)

Insulation Resistance (Initial)

≥ 100 MΩ (at 500 VDC)

Dielectric Strength (Between Terminals, Same Polarity)

1,000 VAC, 50/60 Hz for 1 min

Dielectric Strength (Current-Carrying Parts to Ground)

1,500 VAC, 50/60 Hz for 1 min

Vibration Resistance (Malfunction)

10–55 Hz, 1.5 mm double amplitude

Shock Resistance (Mechanical)

1,000 m/s² (approx. 100 G)

Shock Resistance (Malfunction)

300 m/s² (approx. 30 G)

Operating Temperature

-25 °C to +80 °C (no icing)

Operating Humidity

45 % RH to 85 % RH

Electrical Service Life

10⁴ operations (at rated load)

Mechanical Service Life

10⁶ operations

Pre-travel (PT)

2.4 mm

Over-travel (OT)

0.4 mm

Movement Differential (MD)

0.2 mm

Total Travel (TT)

2.6 mm

Weight

approx. 12 g
