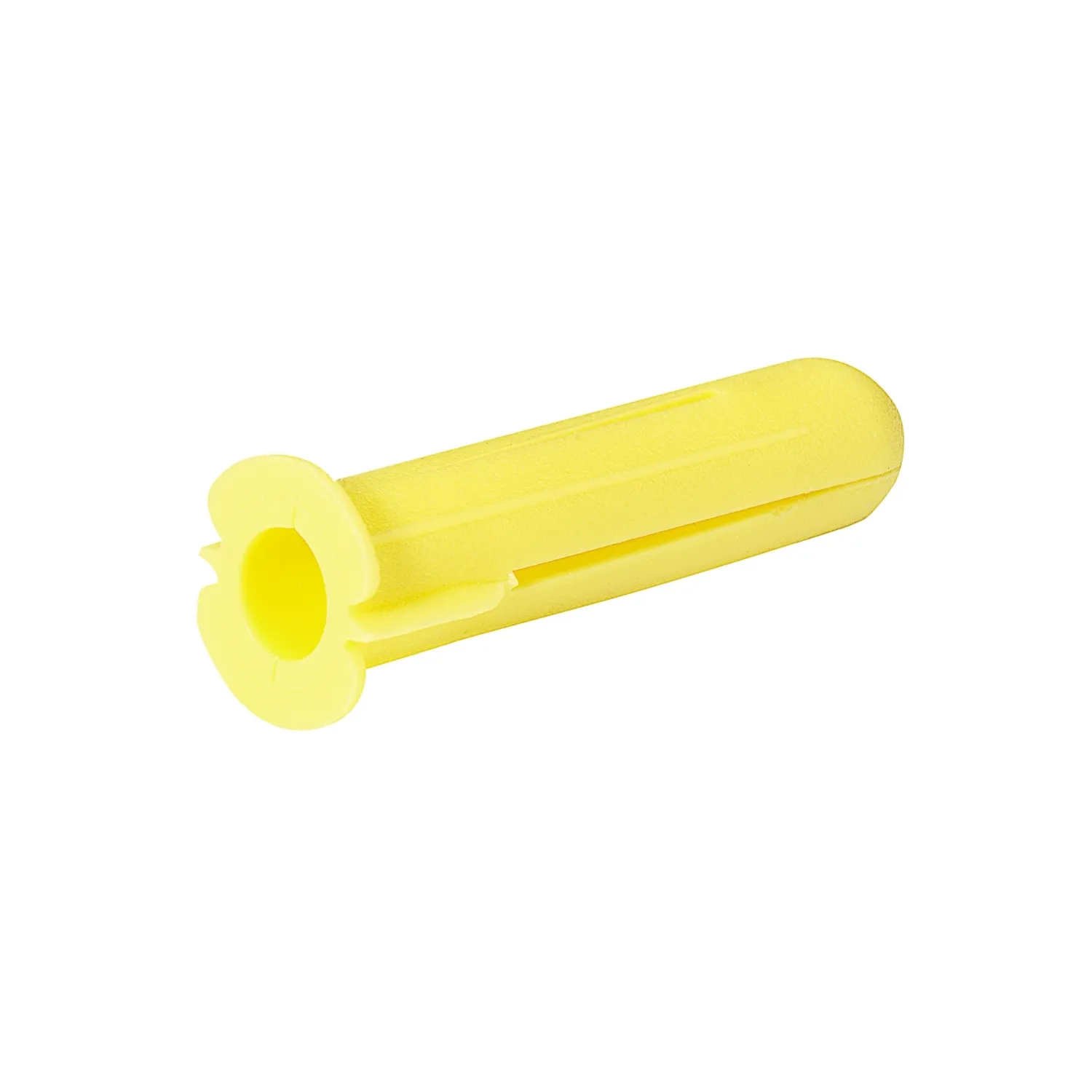

Thorsman TP1 wall plugs, no screws

Photo is representative

Thorsman TP1 Wall Plug 5.5x22mm Yellow PEHD 100pk

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code TP1
GTIN —
Stock status: 7 in stock

pack of 100

Net price: £4.12

Gross price

£4.94

Thorsman TP1 universal wall plug for lightweight installations.

  • Material: Yellow PEHD (polyethylene high density).
  • Dimensions: Ø5.5mm, length 22mm.
  • Screw compatibility: 3.5-5mm diameter.
  • Drill requirements: Ø5.5mm hole, minimum depth 25mm in concrete, brick, or ALC concrete.
  • Operating temperature: -50°C to 80°C.

Load ratings (practical capacity):

  • Concrete C25: 0.5kN shear, 0.25kN pull-out (50kg, 25kg).
  • Solid brick: 0.4kN shear, 0.2kN pull-out (40kg, 20kg).
  • Low-density concrete/expanded clay: 0.1kN shear, 0.04kN pull-out (10kg, 4kg).

Pack quantity: 100 pieces.

Specifications

Product Type

Wall plug

Device Application

Lightweight installation

Drilling Diameter

5.5 mm concrete, 5.5 mm brick, 5 mm ALC concrete

Minimum Drilling Depth

25 mm

Screw Diameter

3.5–5 mm

Material

PEHD (polyethylene high density)

Practical Load Capacity (Shear)

0.5 kN for concrete C25, 0.4 kN for solid brick, 0.1 kN for low-density concrete/expanded clay

Practical Load Capacity (Pull-out)

0.25 kN for concrete C25, 0.2 kN for solid brick, 0.04 kN for low-density concrete/expanded clay

Colour

Yellow

Operating Temperature

-50°C to 80°C

Diameter

5.5 mm

Length

22 mm
