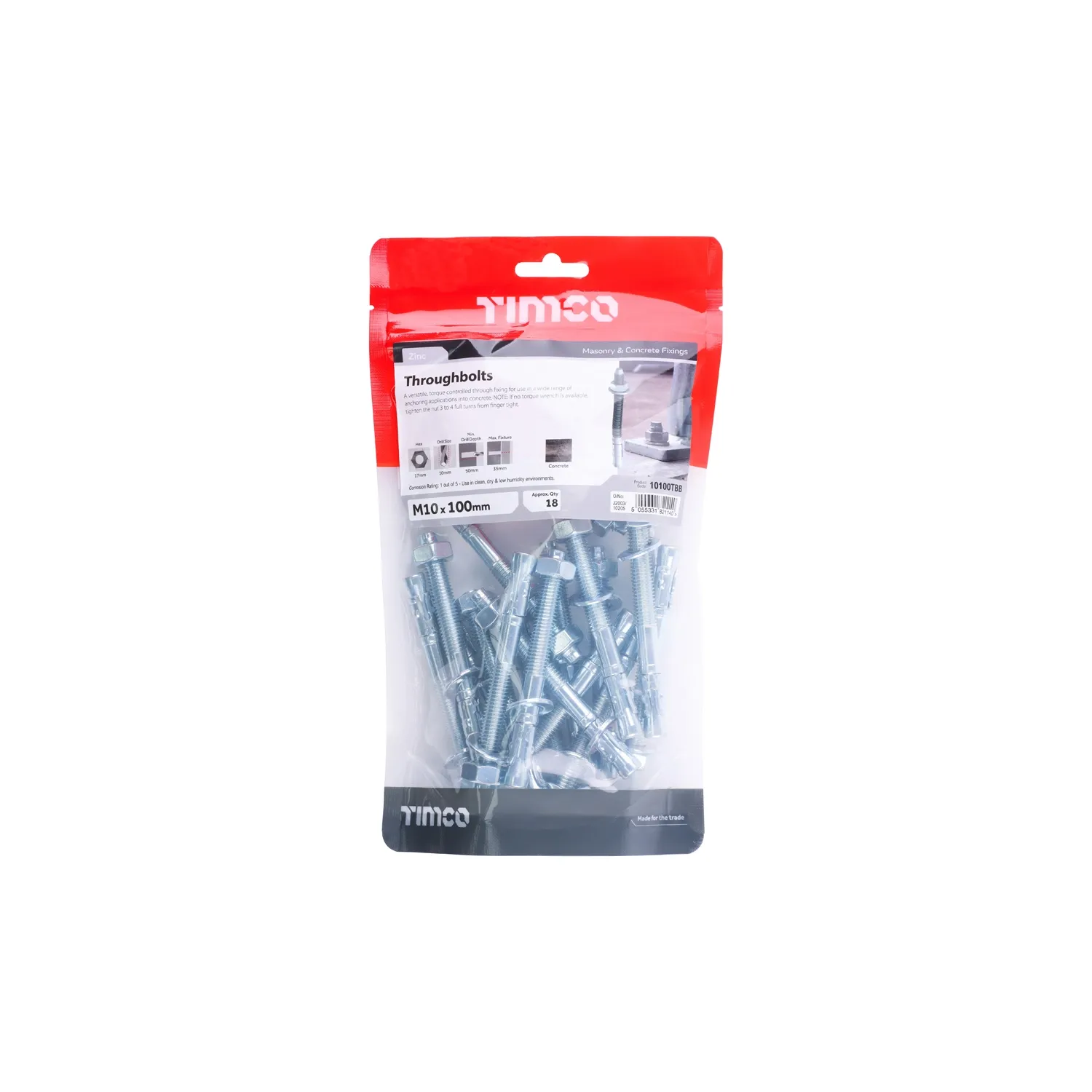

Photo is representative
Timco M10x100mm Throughbolt Zinc Plated 18pk - Concrete Anchor
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
10100TBB
GTIN
—
Stock status:
3 in stock
priced per bag
Net price: £8.61
Gross price
£10.33
M10x100mm zinc throughbolt for concrete anchoring applications.
- Specifications: Thread Ø M10, length 100mm, fully threaded. Requires 12mm drill hole, 35mm minimum fixture thickness (MFT).
- Material: Cold formed carbon steel Grade 5.8, zinc plated and passivated (3-5µm). Corrosion rating 1 for clean, dry environments.
- Components: Includes M10 hex full nuts (17mm socket) and M10x21mm form A washers.
- Installation: Chamfered head design prevents thread damage. Special expansion clip for rapid installation. Torque controlled fixing - tighten nut 3-4 full turns from finger tight if no torque wrench available.
- Certification: Compliant with DIN 125-A and DIN 934 standards.
- Packaging: 18 pieces in TIMbag (261x150x53mm, 1.15kg).
