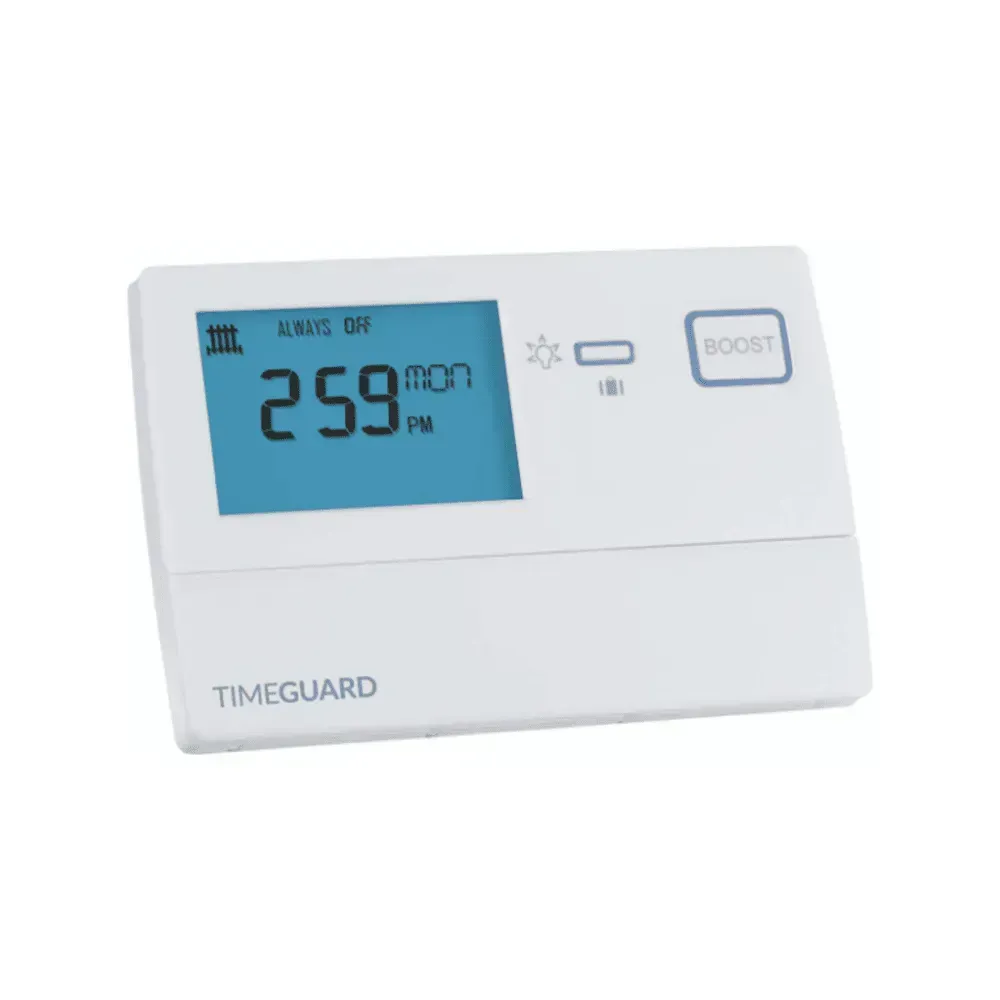

TimeGuard 7 Day Digital Heating Programmer
The Timeguard TRT034N is a single-channel 7-day digital programmer for central heating. It features an easy-to-read blue screen, simple controls, and versatile programming options.
- 7-day programmable with 3 timed periods daily.
- Boost function (1, 2, or 3 hours) and holiday mode.
- Automatic summer/winter time adjustments.
Online:
Product Features
Type | Digital |
---|---|
Screen | Blue LED |
Frequency | 50Hz |
Connection | 3-Wire |
Earth Class | Class II |
Contact Type | Change Over |
Holiday Mode | Yes |
Override Mode | Always ON/OFF |
Switch Rating | 3A Resistive, 1A Inductive |
Timed Periods | 3 per day |
Battery Backup | Rechargeable |
Boost Function | 1, 2, or 3 hours |
Installation Type | Surface |
Operating Voltage | 230V AC |
Number of Channels | 1 |
Programming Period | 7-Day |
Standby Consumption | <8W |
Automatic Time Change | Summer/Winter |
Mounting Hole Centres | 60mm |
Operating Temperature | 0°C to 40°C |
Dimensions (H x W x D) | 90mm x 135mm x 30mm |
mpn | TRT034N |
