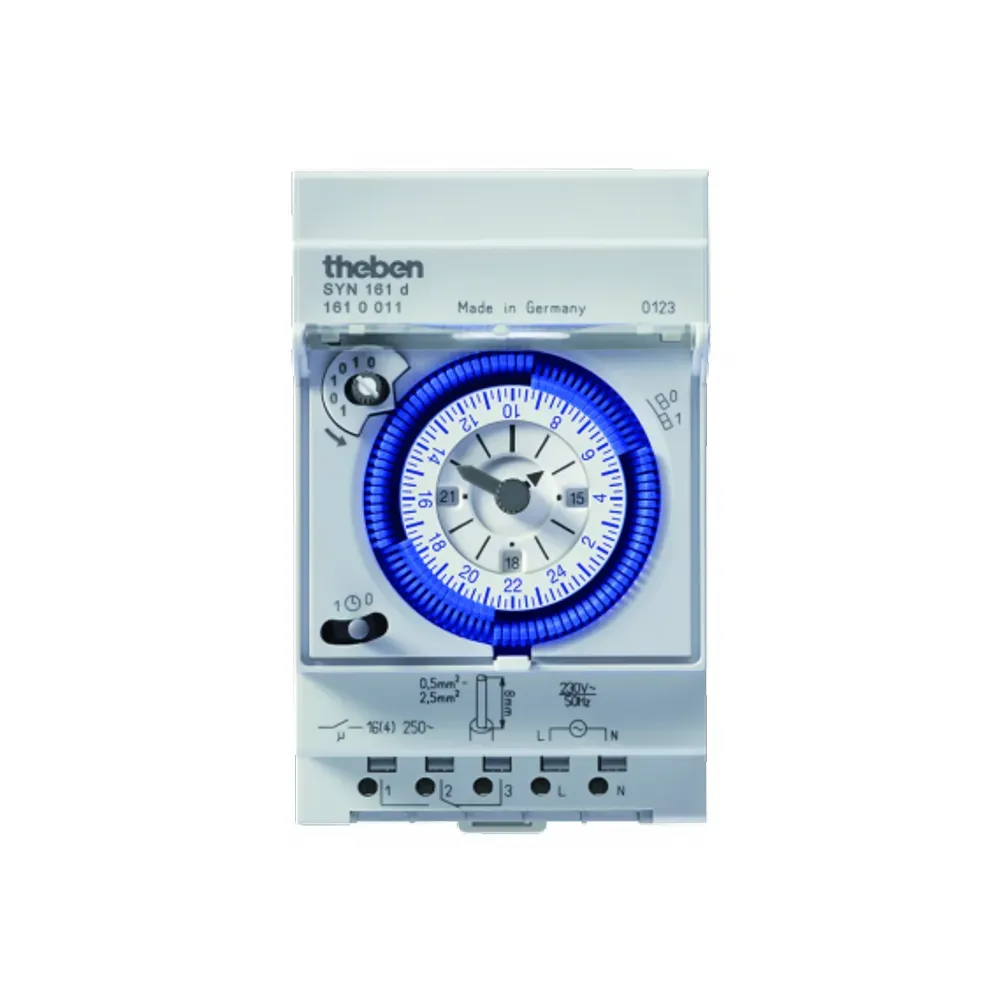

Photo is representative

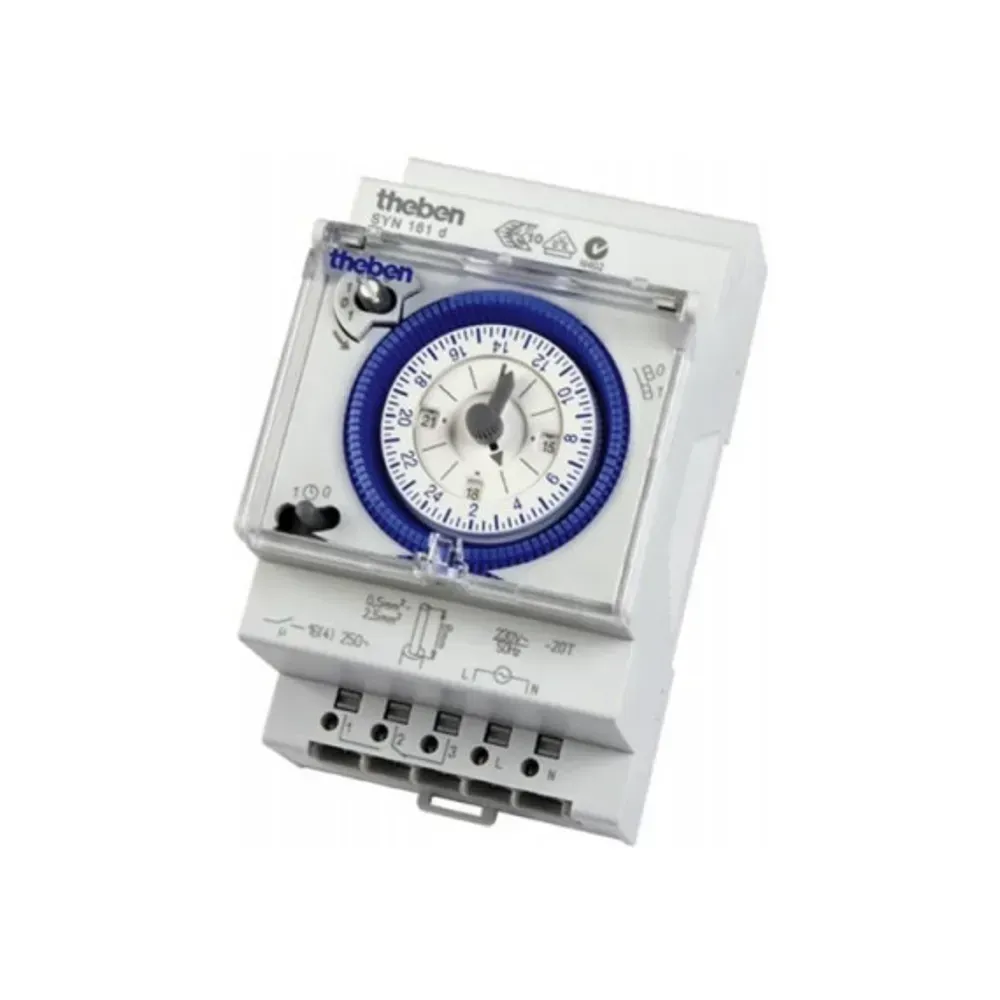

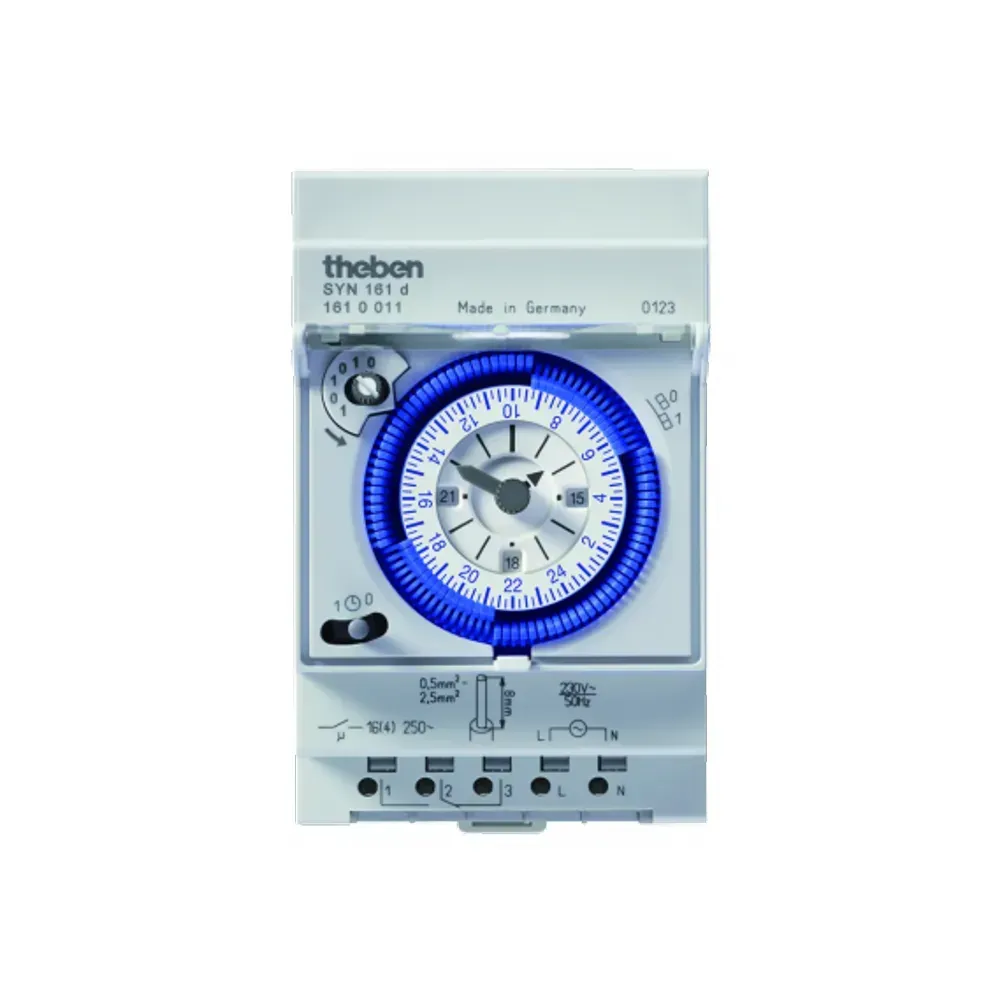

TimeGuard 16A Analogue Timeclock 15min 1 Channel 3 Module DIN Rail
The Timeguard SYN161D is a 1 channel analogue timeclock designed for reliable 24-hour switching with 15-minute segments and a 16A switching capacity. Ideal for DIN rail installation, it features a 3-module width and supports daily programming with synchronized mains timing.
- Switching Capacity: 16A resistive and 4A inductive loads
- Segment Duration: 15-minute switching intervals for up to 96 segments daily
- Easy Adjustment: Clock hands with 12⁄24 hour recognition and simple summer/winter correction
- Installation: DIN rail mount with DuoFix spring terminals accommodating 0.5–2.5 mm² wires
- Manual Control: 3-position switch for ON/AUTO/OFF and switching status display
Online:
Product Features
sku | SYN161D |
---|---|
Type | Analogue Timeswitch |
Program | Daily |
Channels | 1 |
Mounting | Din Rail |
Modules | 3 |
Power Rating | 16A |
Terminal Type | DuoFix Spring |
Wire Diameter | 0.5 - 2.5 mm |
Time Correction | Summer-Winter |
Switching Segments | 96 |
Shortest Switching Time | 15 Minutes |
