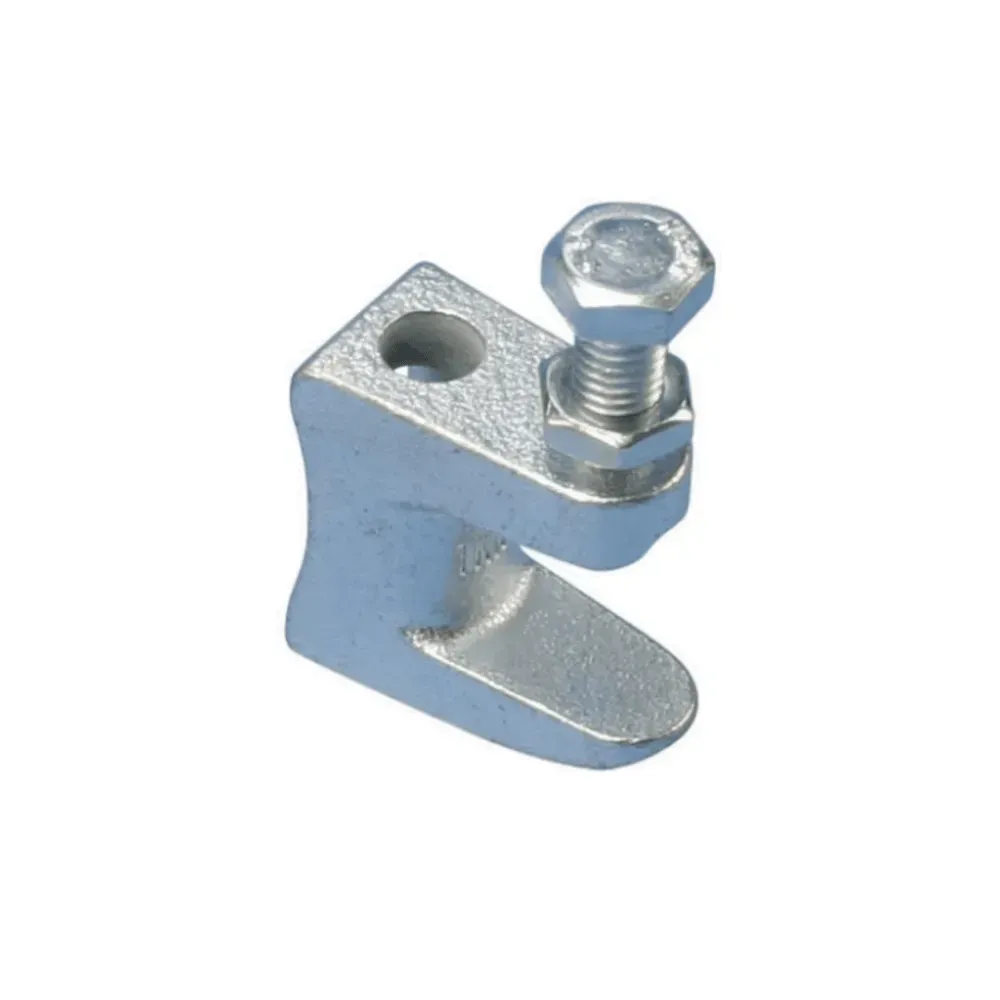

Unistrut 10mm M10 Hole 2500N Load Universal Z Beam G-Clamp
The Unistrut 10mm Z Beam G-Clamp is designed for robust and secure attachment to universal beams. Features include a flange thickness of 20 mm, a max opening of 23 mm, and a static load capacity of 2,500 N.The Unistrut ZBEAM10 10mm G-Clamp is engineered for secure mounting on universal beams. With a 20 mm flange capacity, 23 mm opening, and M10 hole size, it supports static loads up to 2,500 N, ideal for structural and industrial frameworks.
Features include:
- Universal Beam G-Clamp
- Hole Size: M10
- Flange Thickness: 20 mm
- Opening Width: 23 mm
- Static Load Capacity: 2500N
- Torque Rating: 14 N-m
- Galvanized or plated steel
- Bolt-on mounting via torque-securable M10 hole
- Applications: Construction, HVAC, pipework, framing systems
- Part Number: 300M10
- Article Number: 386820
Stock Code:
ZBEAM10
Online:
In stock
Price 2.63 £
incl. VAT, 20%
priced individually
Product Features
Torque | 14 N-m |
---|---|
Hole Size | M10 |
Max Opening | 23 mm |
Part Number | 300M10 |
Static Load | 2,500 N |
Article Number | 386820 |
Flange Thickness | 20 mm |
