ZBEAM6

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

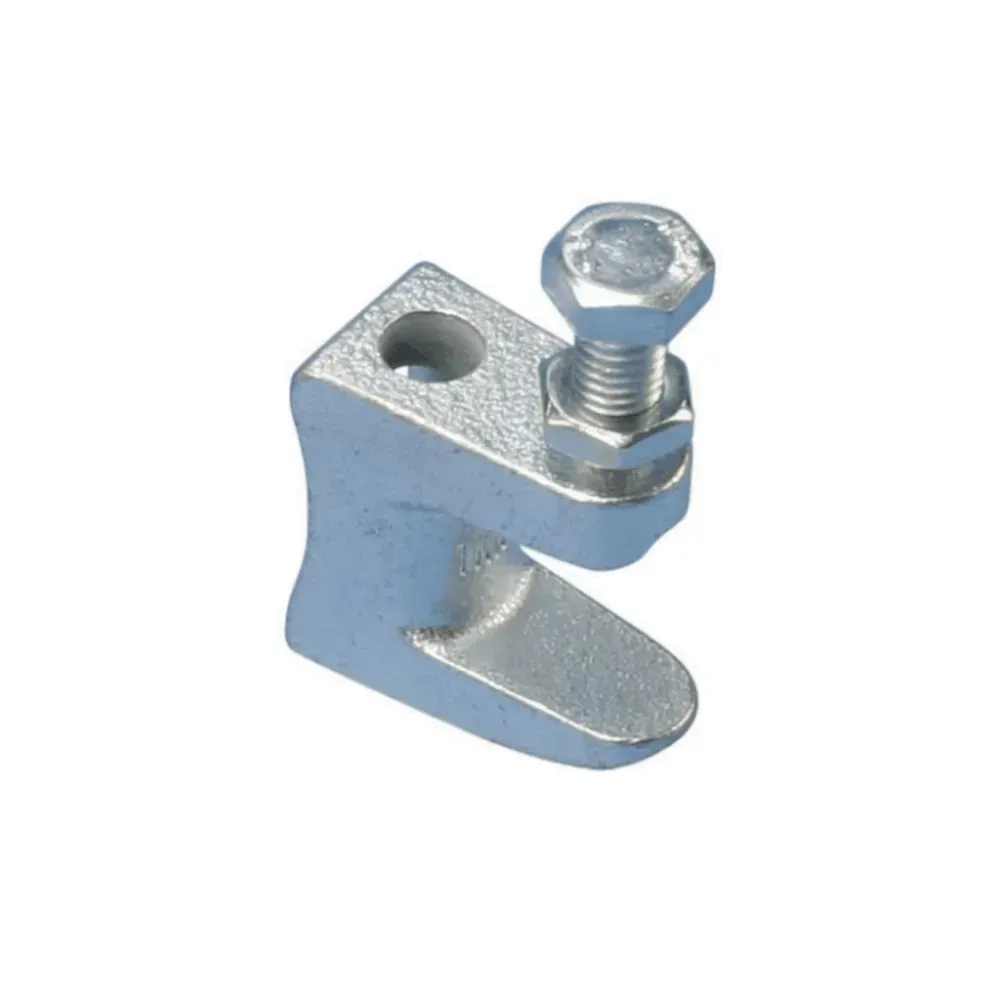

Unistrut 6mm M6 Hole 1200N Load Universal Z Beam G-Clamp

The Unistrut ZBEAM6 G-Clamp is a compact and reliable solution for clamping Z beams in construction or industrial setups. With an M6 hole size and a 14 N-m torque rating, it supports up to 1,200 N of static load, making it ideal for secure structural installations.

Features include:

  • Universal Beam G-Clamp
  • Hole Size: M6
  • Flange Thickness: 18 mm
  • Static Load Capacity: 1200N
  • Torque Rating: 14 N-m
  • Maximum A Dimension: 21 mm
  • Durable plated steel construction
  • Applications: Structural framing, M&E support systems, pipe and conduit mounting
  • Secure bolt-on design with torque-tightening
  • Suitable for use in industrial and commercial installations
  • Part Number: 300M6
  • Article Number: 386805
Stock Code: ZBEAM6
In stock
Price 2.93 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Max A

    21 mm

  • Torque

    14 N-m

  • Hole Size

    M6

  • Part Number

    300M6

  • Static Load

    1,200 N

  • Article Number

    386805

  • Flange Thickness

    18 mm
