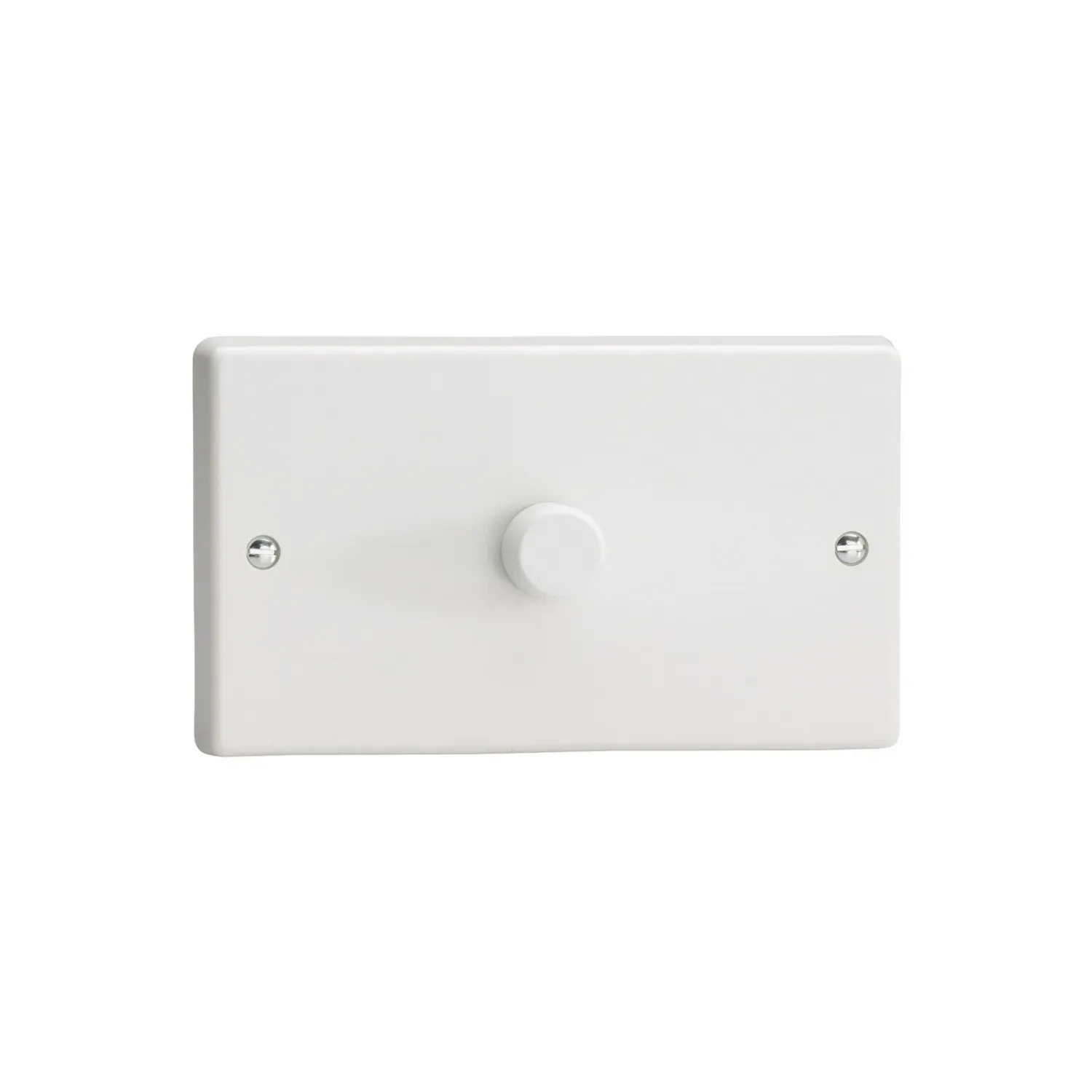

Varilight KQDP601W 1G 2W V-Com Push On Off Rotary LED Dimmer 600W 230V White Twin Plate

Photo is representative

Varilight KQDP601W 1G 2W V-Com Push On Off Rotary LED Dimmer 600W 230V White Twin Plate

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code KQDP601W
GTIN 5021575582345
Stock status: Out of stock

priced individually

More arriving soon

Net price: £66.18

Gross price

£79.41

1-gang 2-way V-Com push on/off rotary dimmer on a twin plate. White plastic finish. Rated for LED loads up to 600W at 230V 50Hz.

Suited to commercial and domestic lighting circuits including many dimmable LEDs. Indoor use only.

  • Not compatible with non-dimmable fluorescent lamps, wire-wound or toroidal transformers, or electric motors
  • Recommended back box depth: 25mm
  • Terminal accepts up to 3 x 1.5mm² (live)
Specifications

Operating Voltage

230V 50Hz

Max Load Rating (LED)

600W

Max Current Rating

2.6A

Configuration

1-Gang 2-Way

Switching Type

Push On/Off Rotary

Plate Type

Twin Plate

Dimensions

85 x 145 x 50mm

Faceplate Depth

15mm

Depth from Mounting Face

20.5mm

Fixing Centres

120.6mm

Recommended Back Box Depth

25mm

Terminal (Live) Diameter

3.2mm

Terminal Capacity

3 x 1.5mm²

Net Weight

210g

Finish

White Plastic

Safety Standard

BS EN 60669-2-1

Application

Indoor Use Only
