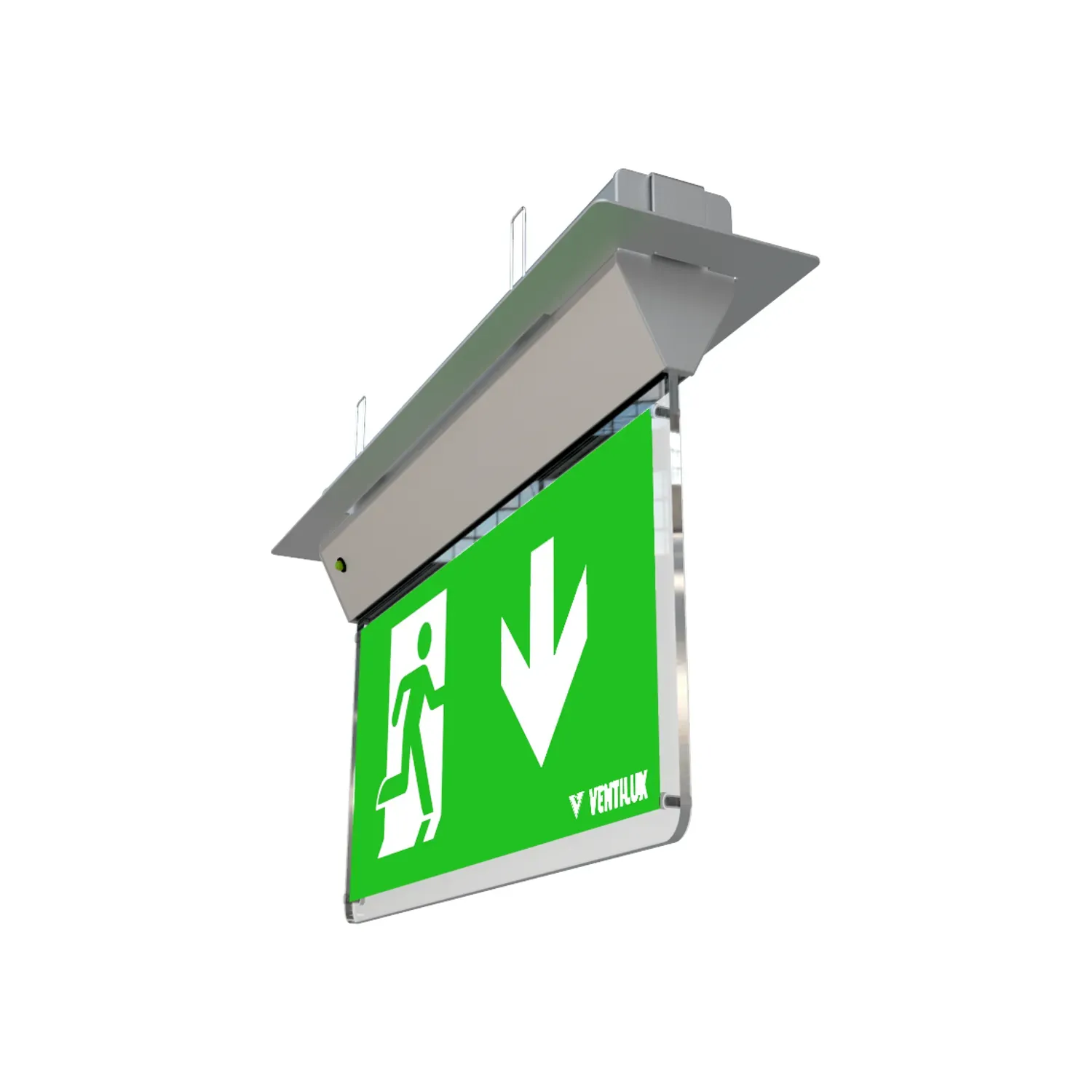

Ventilux Fusion 0.4W LED Maintained Exit Sign Chrome Suspended Wall Recessed IP20 FSM3LEDBCH

Photo is representative

Ventilux Fusion 0.4W LED Maintained Exit Sign Chrome Suspended Wall Recessed IP20 FSM3LEDBCH

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code FSM3LEDBCH
GTIN —
Stock status: 3 in stock

priced individually

Net price: £37.49

Gross price

£44.99

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Maintained LED exit sign from the Ventilux Fusion range. Chrome aluminium housing with polycarbonate panel. Suits suspended, wall, or recessed mounting — recessed cut-out 330mm x 60mm.

Self-contained unit running on a 3.6V Ni-Cd battery with 3-hour emergency duration. Maintained mode means the sign runs continuously, not just on mains failure.

  • 0.4W LED, 6500K, 25m viewing distance
  • 3-hour emergency duration, Ni-Cd 3.6V 0.8Ah battery
  • Input 230/240V 50/60Hz, IP20
  • Standards: EN 60598-2-22, EN61347-2-7, EN61347-2-13, EN 55015
  • 3-year warranty standard (6-year available)
Specifications

Mode of Operation

Maintained

Emergency Duration

3 hours

Input Voltage

230/240V AC (207VAC – 264VAC) 50/60Hz

Power Consumption

4VA, 17mA (full battery)

Lamp

0.4W LED

Lamp Colour Temperature

6500K

Lamp Lifetime

L80 B50 80,000 hours

Viewing Distance

25m

Battery Type

Rechargeable high temp Ni-Cd 3.6V 0.8Ah

Battery P/N

70145

IP Rating

IP20

Luminaire Class

Class I

Mounting

Suspended, Wall, Recessed

Recessed Cut-Out

330mm x 60mm

Dimensions A x B x C

218mm x 310mm x 45mm

Housing Material

Aluminium

Panel Material

Polycarbonate

Finish

Chrome

Weight

1.5kg

Operating Temperature

0°C to 45°C, up to 80% relative humidity

Standards

EN 60598-2-22, EN61347-2-7, EN61347-2-13, EN 55015

Warranty

3 years standard (6 years available)

Documents

datasheet FSM3LEDBCH Datasheet
