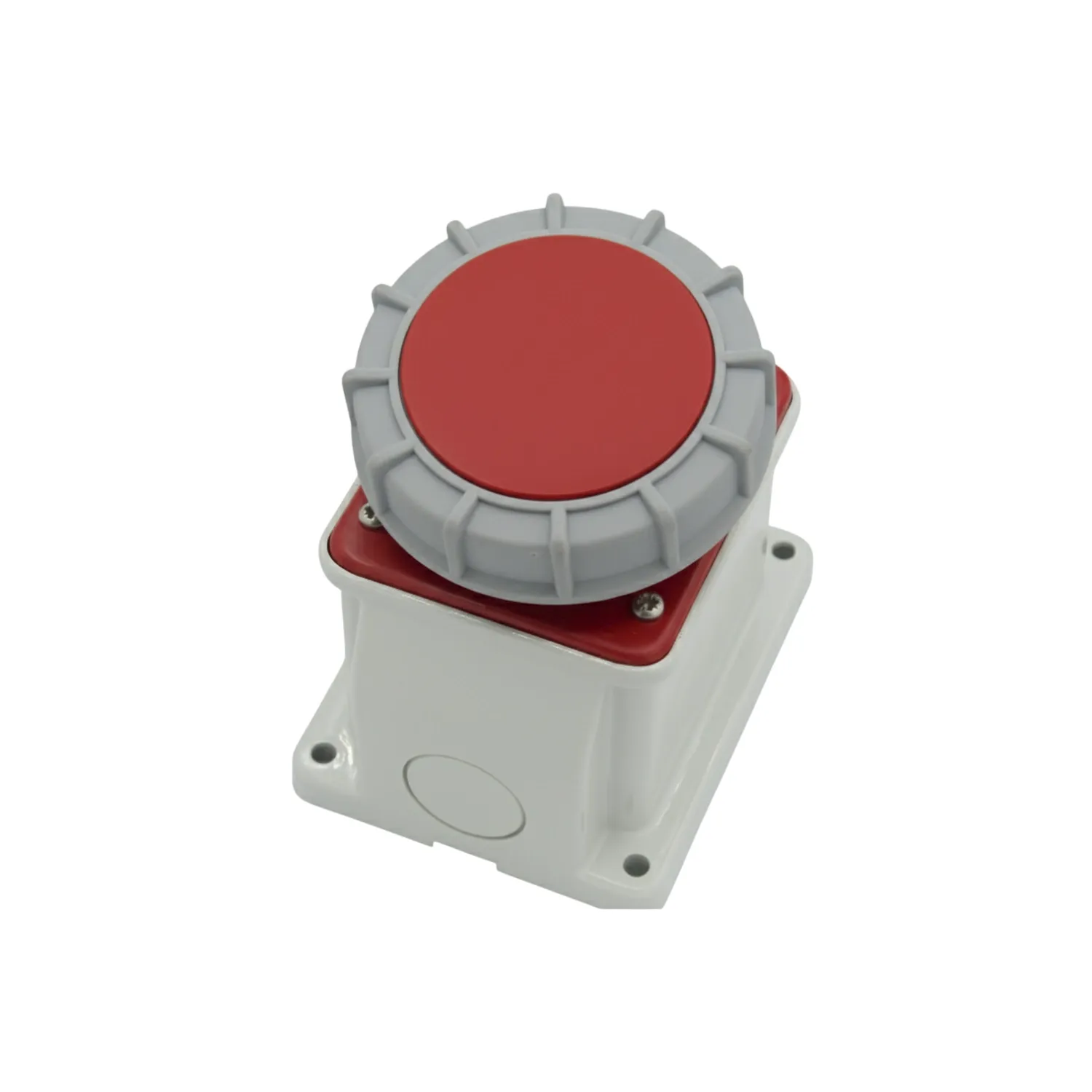

Vinpower Wall Mounted Socket 32A 5-Pin IP67

Photo is representative

Vinpower 32A 3P+N+E IP67 Industrial Socket Outlet - 400V Red

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VP32442
GTIN —
Stock status: In stock

priced individually

Net price: £18.46

Gross price

£22.16

Vinpower 32A 3P+N+E IP67 industrial socket outlet for 400V red systems.

  • Construction: Flame retardant PA6 housing with nickel-plated brass contacts
  • Mounting: Surface mounting with 10° angled square back box
  • Cable entry: Screw terminals accept 2.5–6mm² flexible or 2.5–10mm² rigid cable
  • Protection: IP67 rated for outdoor/weather-exposed use, IK08 shock resistance
  • Environmental: Operating temperature range -25°C to +55°C
  • Durability: Mechanical life >5000 operations
  • Standards: Compliant with IEC 60309-1⁄2, CE, CB, TUV, RoHS, REACH
  • Applications: Fixed installations, distribution boards, site supplies requiring 400V three-phase power
Specifications

Current Rating

32A

Configuration

3P+N+E

Voltage

400V Red

IP Rating

IP67

Housing Material

Flame retardant PA6

Contact Material

Nickel-plated brass

Mounting

Surface

Cable Entry

Screw terminals

Terminal Capacity

2.5–6mm² flexible / 2.5–10mm² rigid

Operating Temperature

-25°C to +55°C

Standards

IEC 60309, CE, CB, TUV, RoHS, REACH
