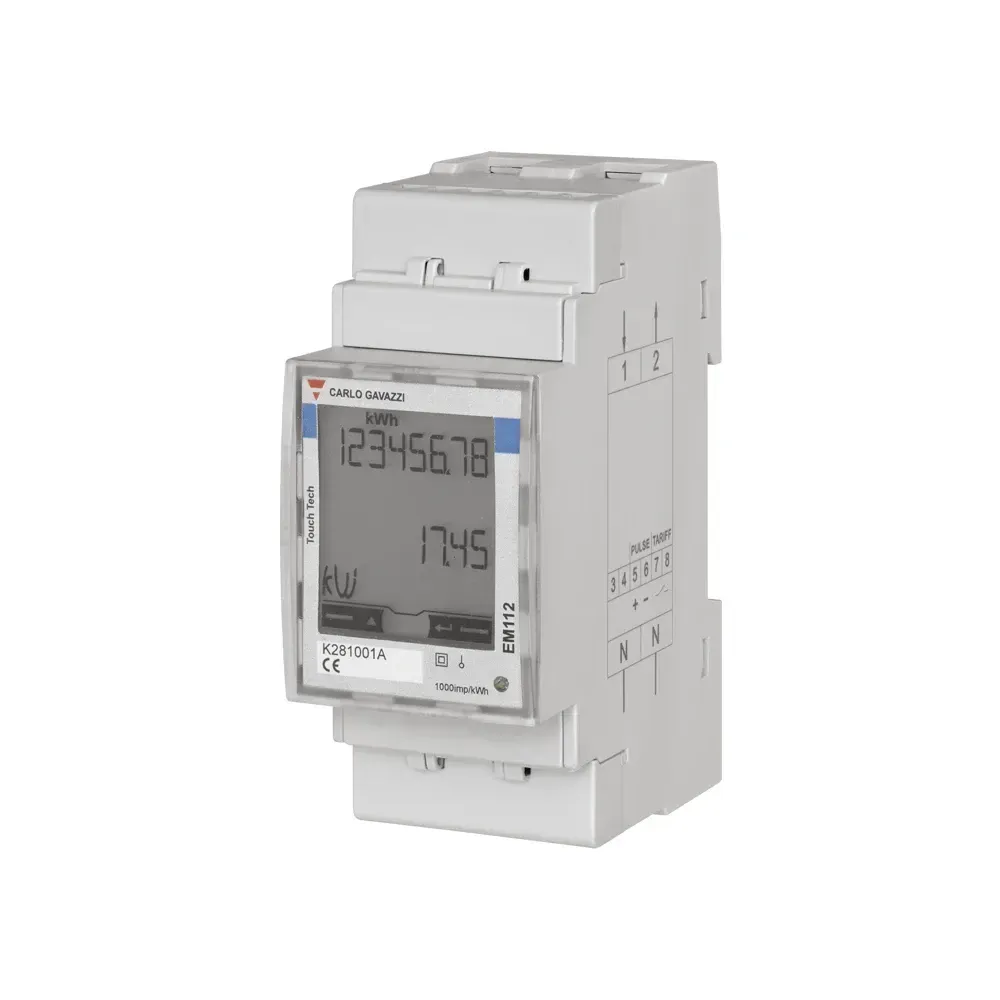

Carlo Gavazzi EM112 energy analyzer showing the backlit LCD display and touch keypad

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Wallbox Power Boost Single-Phase Meter

The EM112 is a single-phase energy analyzer designed for active energy metering and cost allocation in applications up to 100A. It features a backlit LCD display, integrated touch keypad, and options for dual tariff management. The device supports direct current measurement and offers pulse output, RS485 Modbus, or M-bus communication options. It is ideal for monitoring energy consumption with high accuracy and can be mounted on a DIN-rail with IP51 front protection.

Stock Code: EM112
Running low
Price 99.53 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Keypad

    Integrated touch keypad

  • Weight

    160g

  • Display

    Backlit LCD, 3x 8-digit

  • Accuracy

    Class 1 (kWh) according to EN62053-21, Class B (kWh) according to EN50470-3

  • Mounting

    DIN-rail

  • Dimensions

    35 x 63 x 90 mm

  • Protection

    IP51 front degree

  • Power Supply

    Self-powered, -30% +20% of rated input voltage

  • Certifications

    CE, MID (optional)

  • Measurement Type

    Single-phase

  • Operating Voltage

    230V AC (AV0) / 120V AC (AV1)

  • Energy Measurement

    kWh, kvarh (imported/exported), dual tariff

  • Current Measurement

    Up to 100A (direct connection)

  • Communication Options

    Pulse output, RS485 Modbus, M-bus

  • Operating Temperature

    -25°C to +65°C

  • mpn

    EM112
