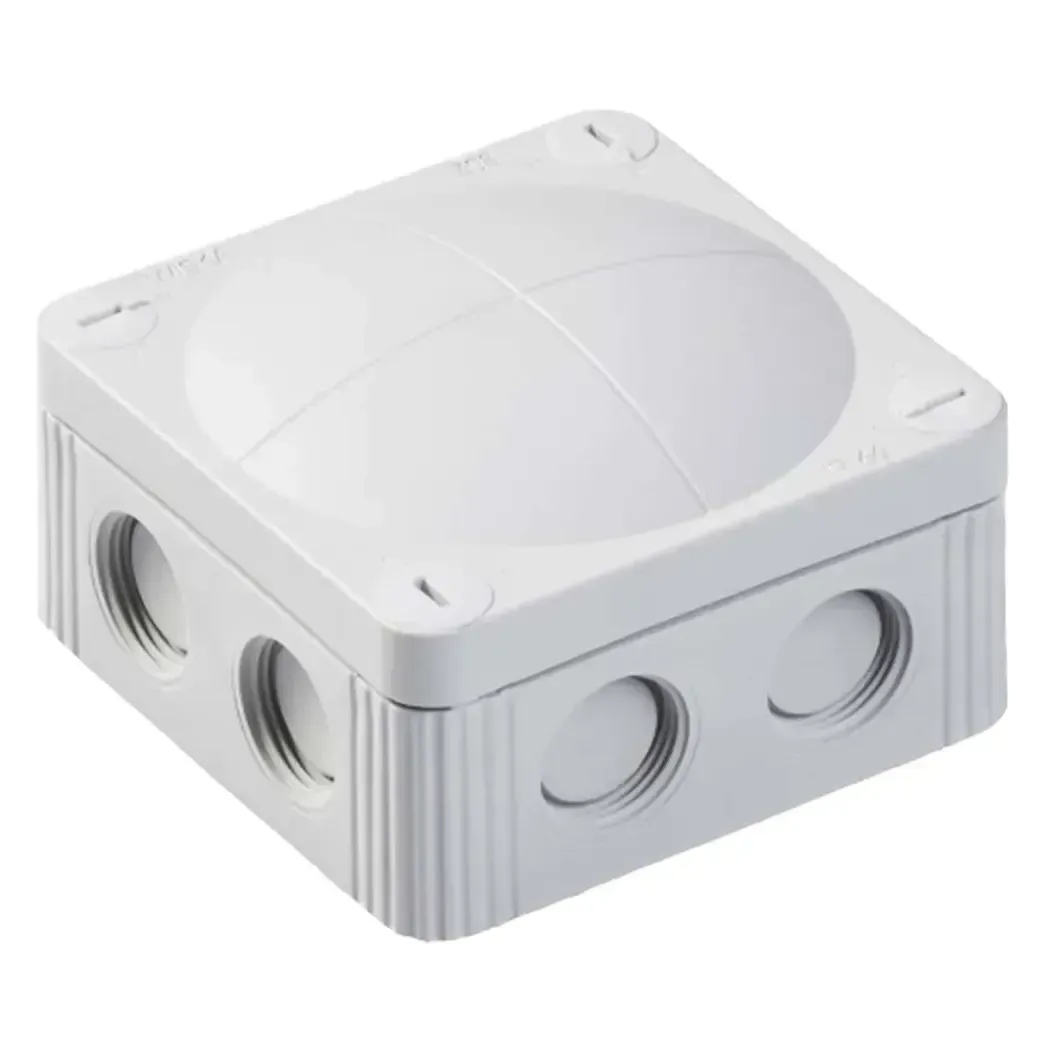

Wiska Combi 308/5 Junction Box 85x85x51mm Grey IP66

The Wiska Combi 308⁄5 Junction Box is a weatherproof outdoor solution perfect for electrical installations. It is constructed with polypropylene material and a TPE sealing gasket, ensuring durability in temperatures ranging from -30°C to 100°C. This compact grey IP66-rated box features 4 terminals with 5 x 4mm poles, suitable for cable diameters between 3mm to 12mm.

Stock Code 10060401
Out of stock

Product Features

  • SKU

    10060401

  • Type

    COMBI 308/5

  • Fixing

    4 internal openings

  • Voltage

    400 V

  • Material

    Polypropylene

  • Packing Unit

    -

  • Product Color

    RAL 7035

  • Glow Wire Test

    750 C

  • Terminals/Poles

    5 x 4mm

  • WISKA-Order No.

    10060401

  • Protection Class

    IP 66/67

  • Cable Diameter Max

    12 mm

  • Cable Diameter Min

    3 mm

  • ETIM-Classification

    EC002600

  • External Dimensions

    85 x 85 x 51mm

  • Type of Cable Gland

    M 20 x 1.5

  • Temperature Range Max

    100 C

  • Temperature Range Min

    -30 C

  • Sealing Gasket Material

    TPE
