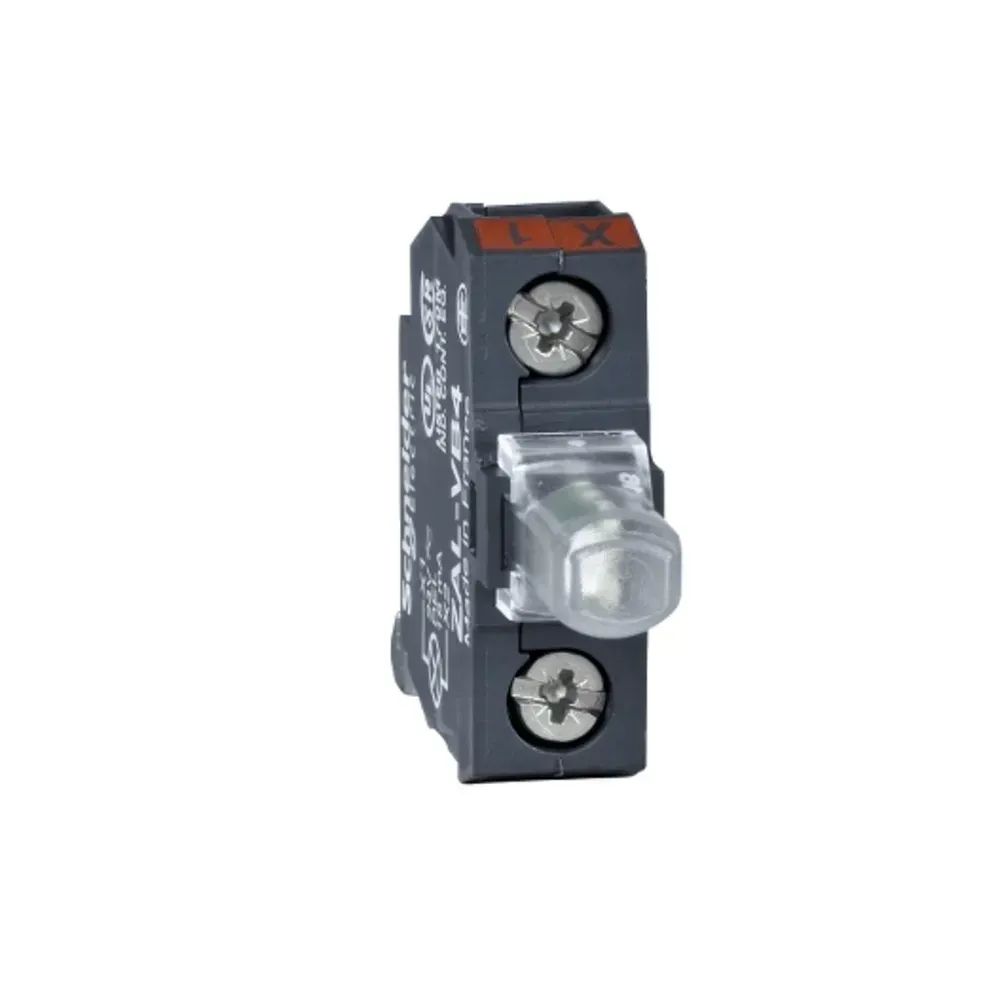

Telemecanique Green 24V Internal LED Block for XALD Enclosure

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Telemecanique Green 24V Internal LED Block for XALD Enclosure

The Telemecanique ZALVB3 Green Internal LED Block is a durable and energy-efficient lighting module for Harmony XB5 22mm control and signaling units. It features a protected integral green LED and is compatible with both 24V AC and DC applications, making it ideal for clear visual status indication in control panels.

Features include:

  • Green integral LED light block for clear signaling
  • Rated voltage: 24V AC/DC (range: 21.6–26.4 V AC / 19.2–30 V DC)
  • Current consumption: 18 mA
  • Rear mounting with screw clamp terminals for secure and easy installation
  • Fast clip-together assembly with compatible push button and selector switch units
  • IP20 protection against accidental contact
  • Compatible with Harmony XALD, XALK, and XB5 Ø22mm units
  • Compact and lightweight (0.015 kg) for space-saving applications
Stock Code: ZALVB3
Few in stock
Price 8.15 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Sku

    ZALVB3

  • Type

    Light Block

  • Service Life

    100000 h

  • Assembly Style

    Customer Assembly

  • Shock Resistance

    30 gn, 50 gn

  • Tightening Torque

    0.8-1.2 N.m

  • Insulation Voltage

    250 V

  • Current Consumption

    18 mA

  • Light Source Colour

    Green

  • Rated Supply Voltage

    24 V AC/DC

  • Vibration Resistance

    5 gn (12-500 Hz)

  • Connections Terminals

    Screw Clamp Terminals

  • Supply Voltage Limits

    21.6-26.4 V AC, 19.2-30 V DC

  • Product Certifications

    CSA, UL Listed

  • Ambient Air Temperature

    -25-70 C

  • IP Degree of Protection

    IP20

  • Impulse Withstand Voltage

    4 kV

Documents

Brand

Schneider Electric
