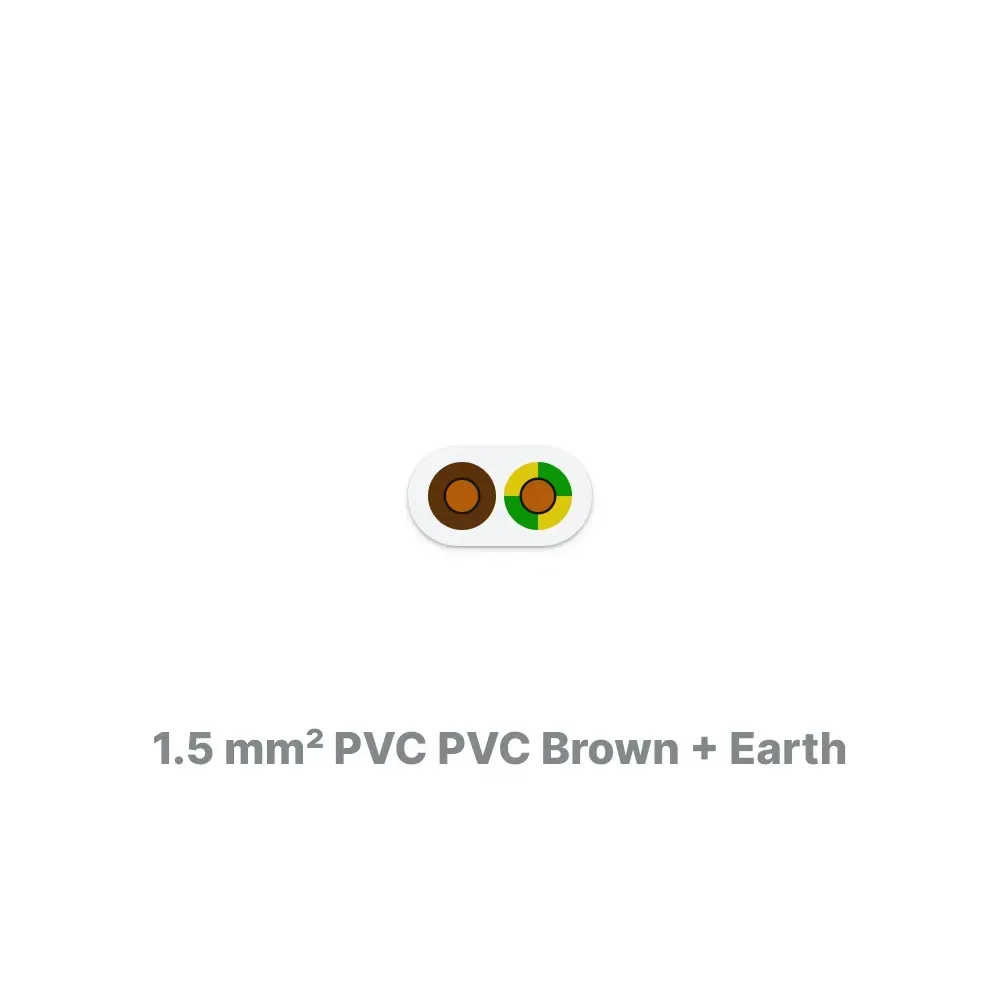

1.5sqmm PVC PVC Brown + Earth

Photo is representative

Twin Cable Brown Insulated Earth 1.5mm2 XLPE LSZH 450 750V N15EPVCPVC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code N15EPVCPVC1-ROLL
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.80

Gross price

£0.96

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Double-insulated twin cable with insulated earth. Brown live core, Green/Yellow earth — both insulated. XLPE insulation with LSZH outer sheath. Suited to fixed wiring in domestic and light commercial premises.

LSZH sheath produces low smoke and low corrosive gas output in the event of fire — required where fire safety regulations apply.

  • 1.5mm² conductor, 4.4mm overall diameter
  • Current carrying capacity in conduit: 23A
  • DC resistance at 20°C: 12.1 ohm/km
  • Max operating temp: 90°C, short circuit: 250°C
  • Suitable for walls, boards, cable channels, embedded in plaster
Specifications

Conductor Cross Section

1.5 mm²

Conductor

Solid or stranded copper (Class 1 or Class 2)

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Core Colours

Brown, Green/Yellow Earth

Rated Voltage

450/750 V

Max Operating Temperature

90°C

Max Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

23 A

DC Resistance at 20°C

12.1 ohm/km

Overall Diameter

4.4 mm

Net Weight

31 kg/km

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1

Low Smoke

EN 61034

Halogen Free

EN 50525-1 / EN 50267
