Twin Cable Blue Insulated Earth 1.5mm2 XLPE LSZH 450 750V 100m Drum

Photo is representative

Twin Cable Blue Insulated Earth 1.5mm2 XLPE LSZH 450 750V 100m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code N15EPVCPVCBLUE
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.80

Gross price

£0.96

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

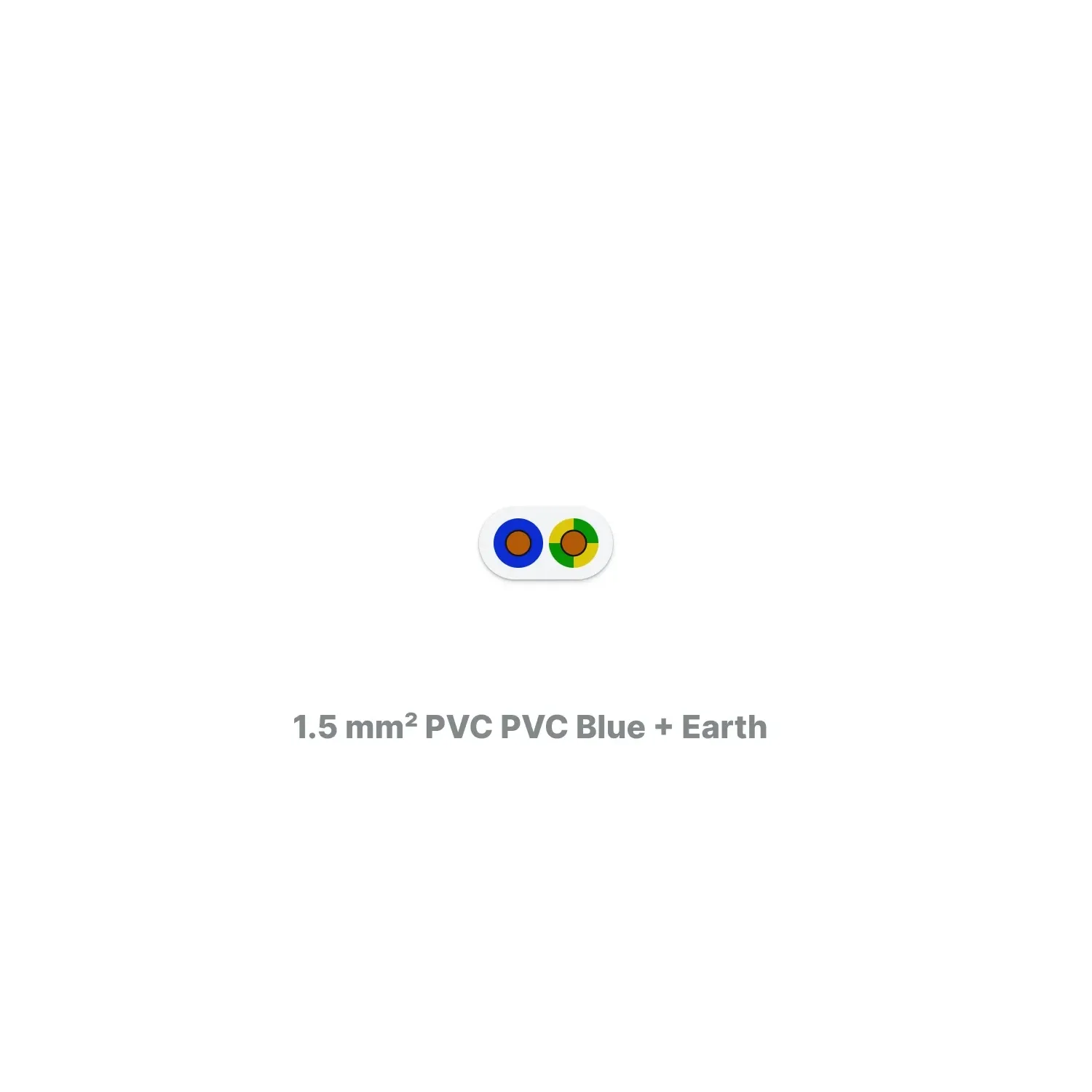

Double-insulated twin cable with insulated earth. Blue and green/yellow earth cores, XLPE insulation, LSZH outer sheath. For fixed wiring in domestic and light commercial installations — walls, boards, cable channels, or embedded in plaster.

LSZH sheath keeps smoke and corrosive gas emission low in a fire situation. 90°C max operating temp and 250°C short-circuit rating give headroom over standard PVC T&E.

  • Conductor: solid or stranded Cu, Class 1 or Class 2
  • Overall diameter: 4.4 mm
  • Current carrying capacity in conduit: 23 A
  • DC resistance at 20°C: 12.1 ohm/km
Specifications

Cross Section

1.5 mm²

Rated Voltage

450/750 V

Max Operating Temperature

90°C

Max Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

23 A

DC Resistance at 20°C

12.1 ohm/km

Overall Diameter

4.4 mm

Net Weight

31 kg/km

Conductor

Solid or stranded copper, Class 1 or Class 2

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Core Colours

Blue, Green/Yellow Earth

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1

Low Smoke

EN 61034

Halogen Free

EN 50525-1 / EN 50267
