Single Core 25mm² Blue XLPE LSZH Cable 450 750V BS7211

Photo is representative

Single Core 25mm² Blue XLPE LSZH Cable 450 750V BS7211

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 25PVCPVCBLUE
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £4.93

Gross price

£5.91

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

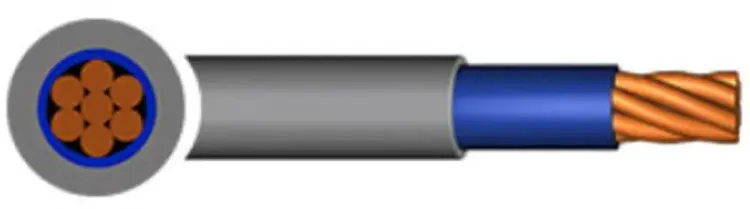

25mm² single core, double-insulated with XLPE and an LSZH outer sheath. Rated for fixed wiring in domestic and light commercial installs — walls, boards, cable channels, or embedded in plaster.

LSZH sheath keeps smoke and corrosive gas output low in a fire. XLPE insulation takes it to 90°C continuous and 250°C on short circuit — a step up from standard PVC singles.

  • 133 A current carrying capacity in conduit
  • 0.727 Ω/km DC resistance at 20°C
  • Overall diameter: 9.7 mm
  • Flame propagation: EN 60332-1
Specifications

Cross Section

25 mm²

Conductor

Stranded copper, Class 2

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Core Colour

Blue

Rated Voltage

450/750 V

Max. Operating Temperature

90°C

Max. Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

133 A

DC Resistance at 20°C

0.727 Ω/km

Overall Diameter

9.7 mm

Net Weight

276 kg/km

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1

Low Smoke

EN 61034

Halogen Free

EN 50525-1 / EN 50267
