Single Core 25mm² XLPE LSZH Brown 450 750V Fixed Wiring Cable

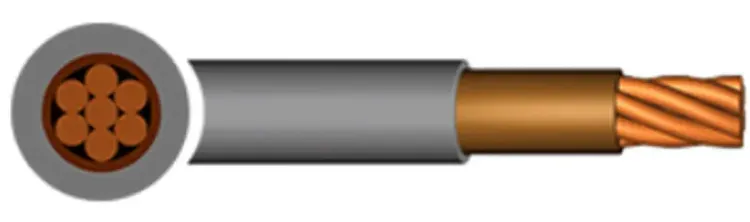

Photo is representative

Single Core 25mm² XLPE LSZH Brown 450 750V Fixed Wiring Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 25PVCPVCBROWN
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £4.96

Gross price

£5.95

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Double-insulated single core cable with XLPE insulation and LSZH outer sheath. Rated 450/750V with a 90°C max operating temperature — suitable for fixed wiring in domestic and light commercial installations. Fits walls, boards, cable channels, or embedded in plaster.

LSZH sheath limits smoke and corrosive gas output in a fire. Meets flame propagation requirements under EN 60332-1.

  • 25mm² Class 2 stranded Cu conductor
  • 133A current carrying capacity in conduit
  • Short-circuit temperature rating: 250°C
  • DC resistance at 20°C: 0.727 ohm/km
  • Overall diameter: 9.7mm
Specifications

Cross Section

25 mm²

Conductor

Stranded copper, Class 2

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Core Colour

Brown

Rated Voltage

450/750 V

Max Operating Temperature

90°C

Max Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

133 A

DC Resistance at 20°C

0.727 ohm/km

Overall Diameter

9.7 mm

Net Weight

276 kg/km

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1

Low Smoke

EN 61034

Halogen Free

EN 50525-1 / EN 50267
