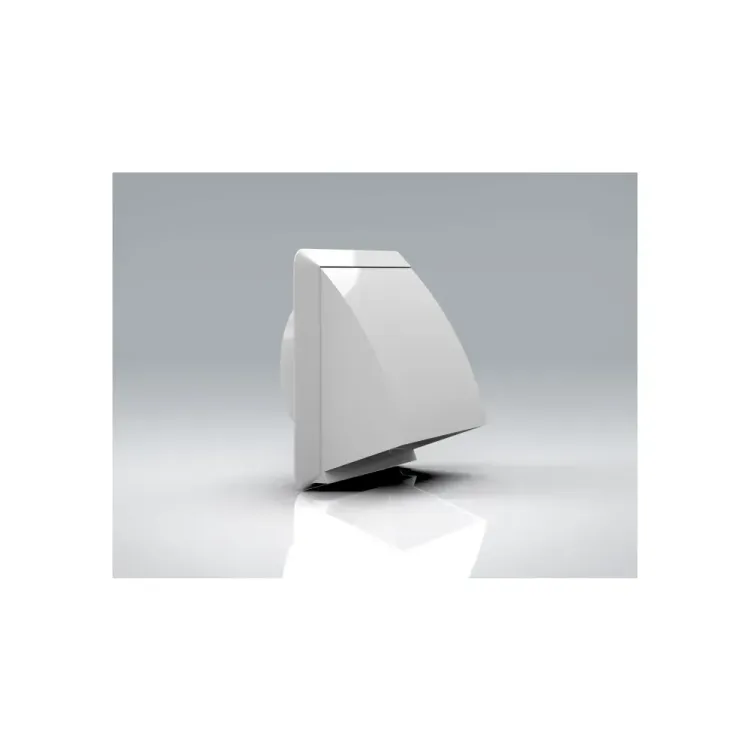

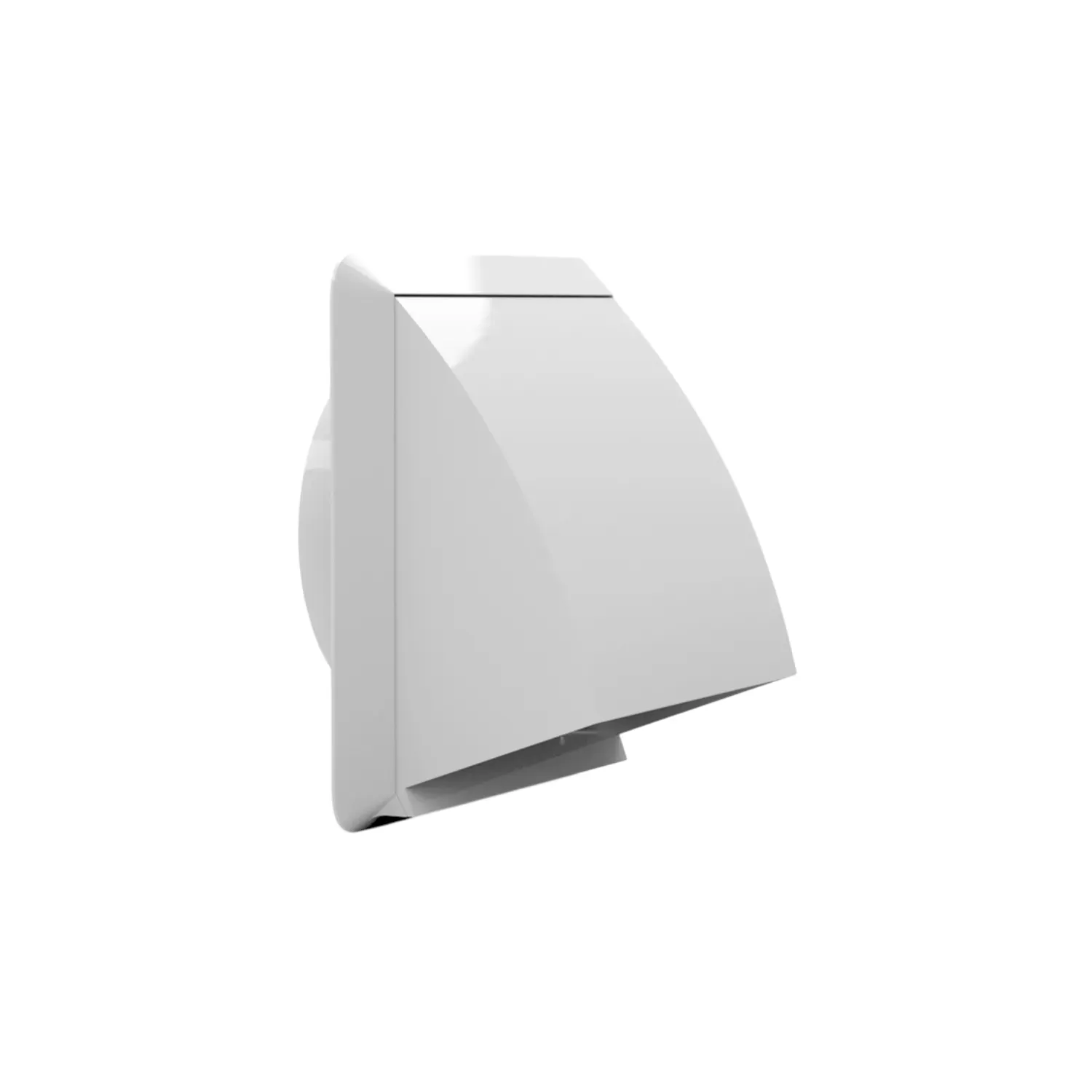

VKC245W 100mm Cowled Outlet Non-Return Flap Round Spigot White Polypropylene

Photo is representative

VKC245W 100mm Cowled Outlet Non-Return Flap Round Spigot White Polypropylene

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VKC245W
GTIN —
Stock status: In stock

priced individually

Net price: £5.85

Gross price

£7.02

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

External wall termination for 100mm exhaust-air ductwork. Polypropylene cowled outlet with integral non-return flap and round male spigot — connects directly to the inside of the duct.

For exhaust-air only. Not suitable for supply or transfer applications.

  • 100mm round male spigot
  • Min free area: 7,283mm²
  • Operating temp range: -15°C to +60°C
  • Material: polypropylene
Specifications

Duct Size

100mm

Colour

White

Material

Polypropylene

Spigot Type

Round male

Minimum Free Area

7,283mm²

Min Operating Temperature

-15°C

Max Operating Temperature

+60°C

Airflow at 8 l/s

0.40 Pa

Airflow at 13 l/s

2.80 Pa

Airflow at 21 l/s

8.80 Pa

Airflow at 30 l/s

17.18 Pa

Airflow at 60 l/s

62.48 Pa

Airflow at 120 l/s

227.30 Pa

Application

Exhaust-air only, external walls
