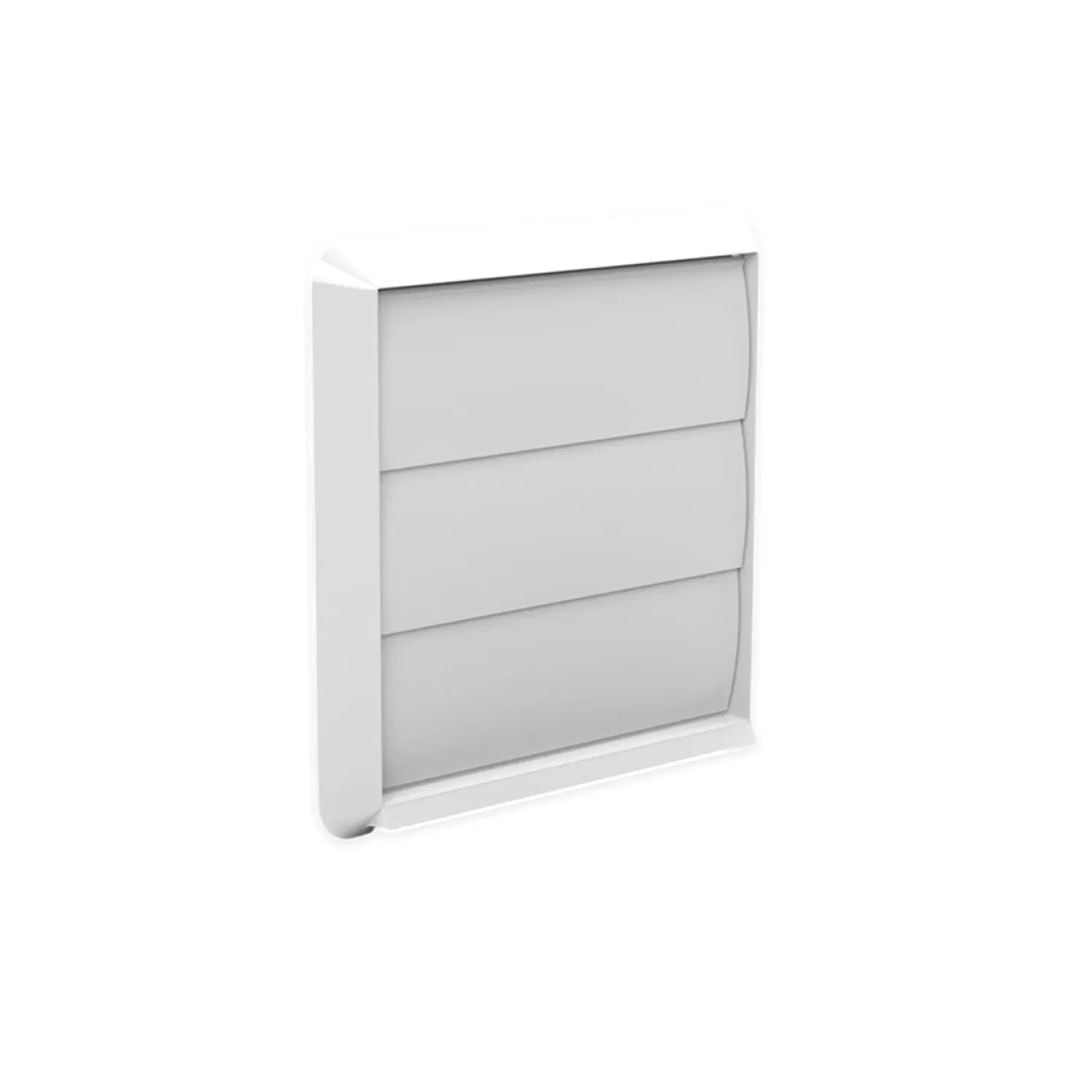

Vent-Axia VKC270 125mm Gravity Outlet Round Spigot White Flapped Grille

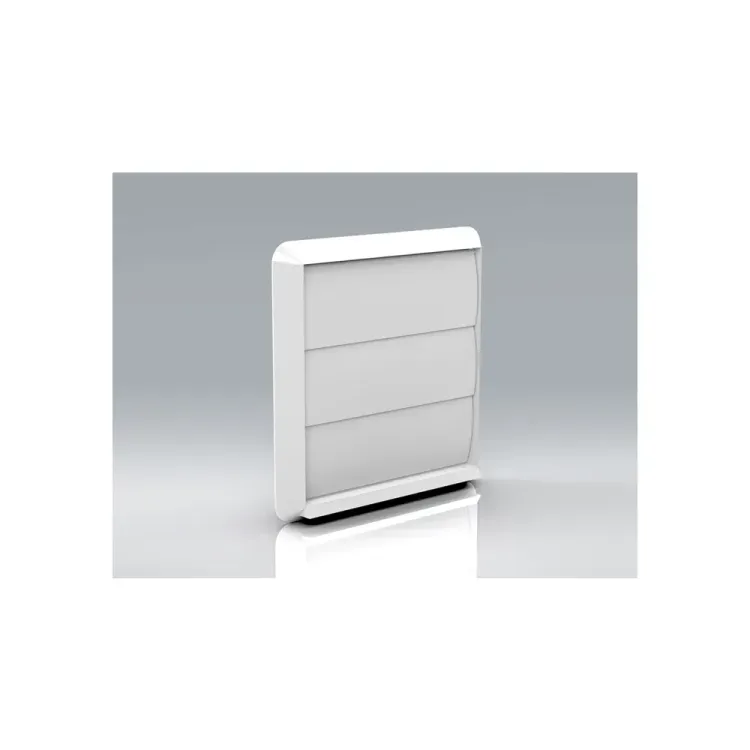

Photo is representative

125mm Gravity Outlet Round Spigot White Flapped Grille

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VKC270
GTIN —
Stock status: 1 in stock

priced individually

Net price: £8.62

Gross price

£10.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

125mm diameter gravity outlet for external wall termination of exhaust ducting. Male round spigot connects inside the duct. High-impact polypropylene construction.

Three anti-backdraught shutters open under fan operation and close on shutdown — stops wind pressure pushing back up the duct. Exhaust air only; not suitable for supply.

  • Duct size: 125mm
  • Minimum free area: 11,600mm²
  • Operating temp range: -15°C to +60°C
  • Colour: White RAL 9010
  • Weight: 82g
Specifications

Duct Size

125mm

Spigot Type

Male round

Material

High Impact Polypropylene

Minimum Free Area

11,600mm²

Anti-Backdraught Shutters

3

Colour

White (RAL 9010)

Weight

82g

Min Operating Temperature

-15°C

Max Operating Temperature

+60°C

Airflow at 8 l/s

3.60 Pa

Airflow at 30 l/s

9.91 Pa

Airflow at 120 l/s

23.11 Pa

Application

Exhaust air only, external walls
