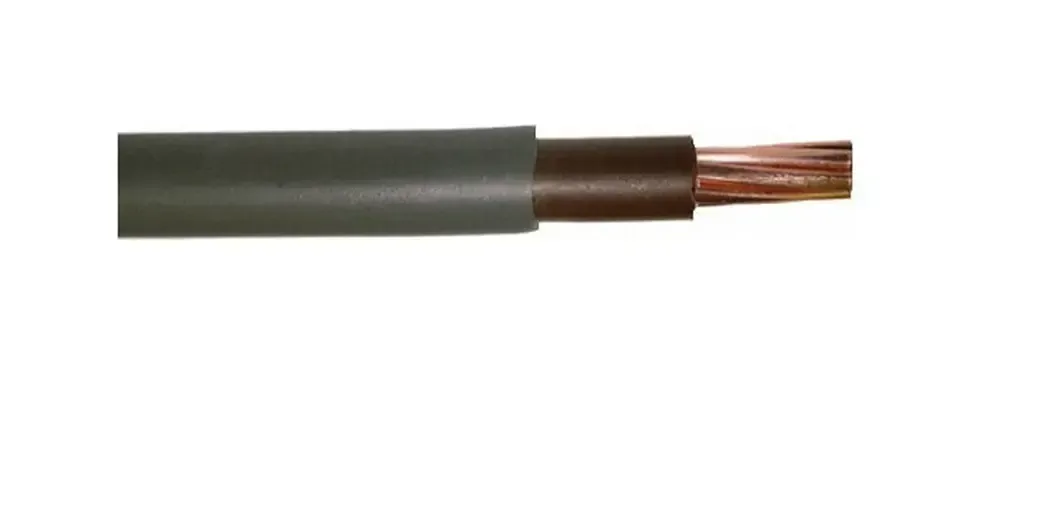

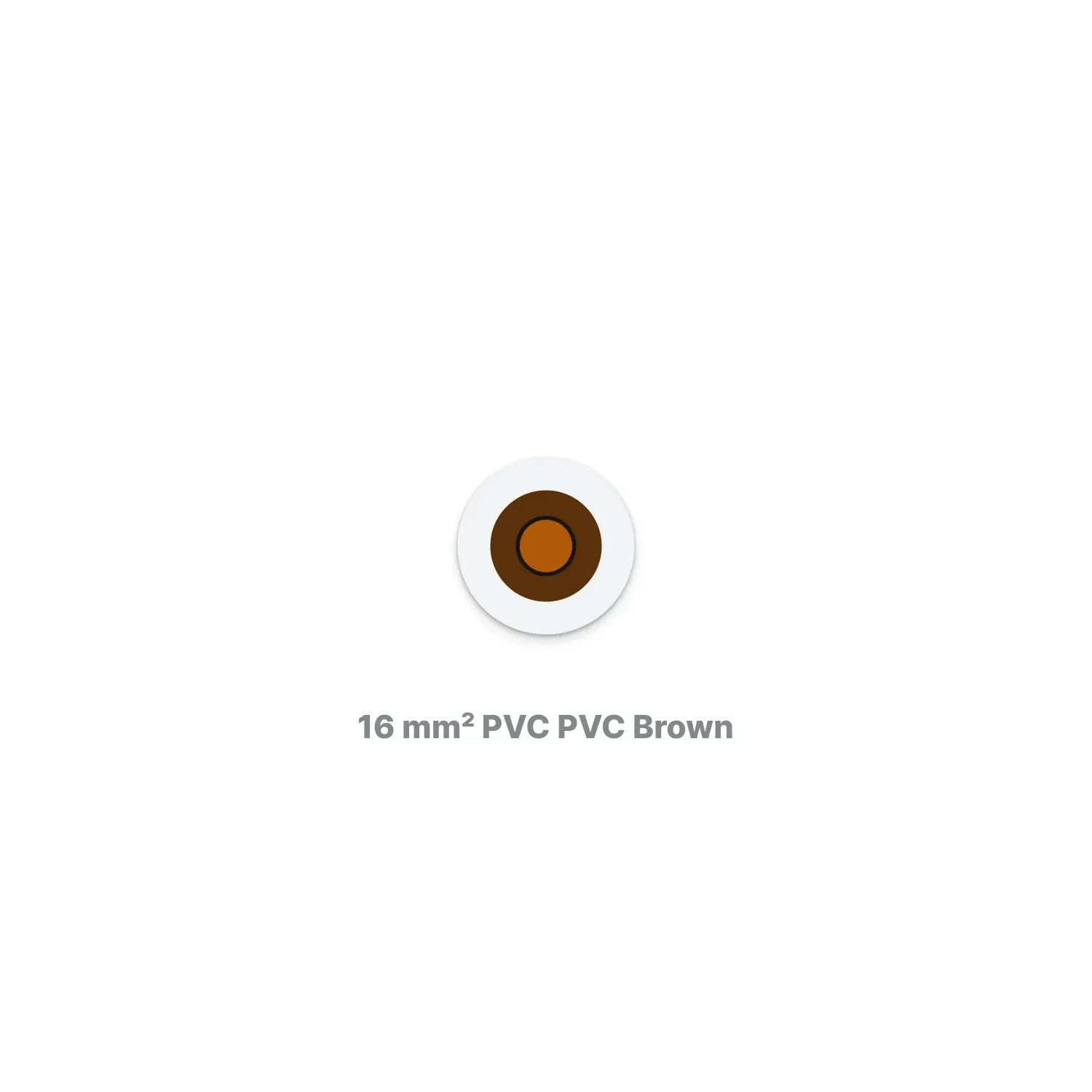

Single Core 16mm² XLPE LSZH Brown 450/750V PVC Insulated Cable

Photo is representative

Single Core 16mm² XLPE LSZH Brown 450/750V PVC Insulated Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 16PVCPVCBROWN
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.04

Gross price

£3.64

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Double-insulated single core cable with XLPE insulation and LSZH outer sheath. For fixed wiring in domestic and light commercial premises — suitable for installation in walls, on boards, in cable channels or embedded in plaster.

LSZH sheath keeps smoke and corrosive gas output low in a fire. XLPE insulation gives a 90°C operating rating and 250°C short-circuit rating — better thermal performance than standard PVC singles.

  • 16mm² Class 2 stranded Cu conductor
  • 100A current carrying capacity in conduit
  • Overall diameter: 8.5mm
  • DC resistance at 20°C: 1.15 ohm/km
Specifications

Cross Section

16 mm²

Conductor

Stranded copper, Class 2

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Core Colour

Brown

Rated Voltage

450/750 V

Max. Operating Temperature

90°C

Max. Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

100 A

Overall Diameter

8.5 mm

Net Weight

183 kg/km

DC Resistance at 20°C

1.15 ohm/km

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1

Low Smoke

EN 61034

Halogen Free

EN 50525-1 / EN 50267
