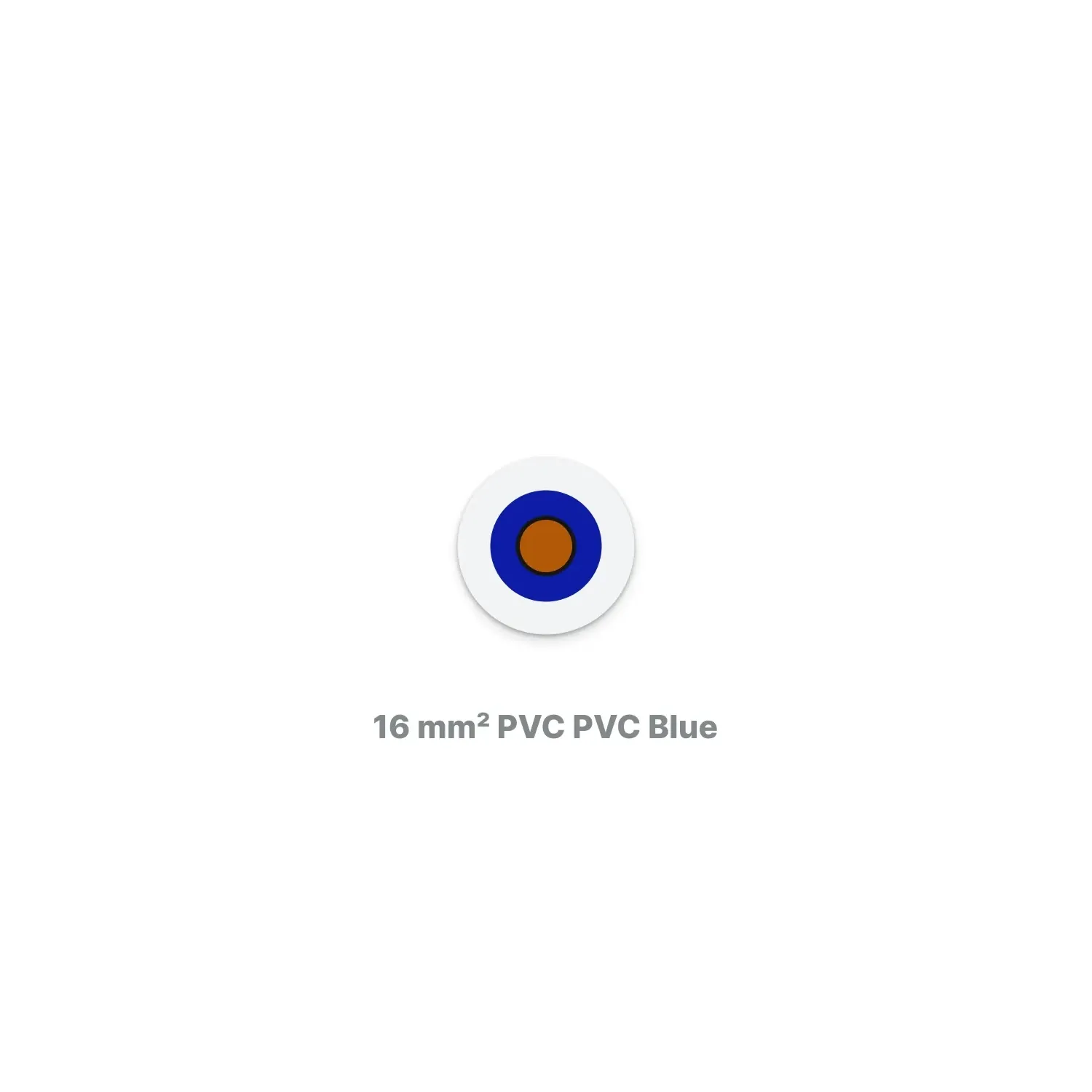

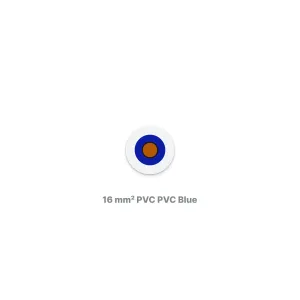

Single Core 16mm² Blue XLPE LSZH Cable 450 750V BS 7211

Photo is representative

Single Core 16mm² Blue XLPE LSZH Cable 450 750V BS 7211

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 16PVCPVCBLUE
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.01

Gross price

£3.62

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

16mm² single core blue cable with XLPE insulation and LSZH outer sheath. Meets BS 7211:2012 and IEC 60502-1. Suitable for fixed wiring in domestic and light commercial installations.

LSZH sheath limits smoke and corrosive gas emission in a fire — required in high-rise and public spaces under current building regs. XLPE insulation gives a 90°C operating rating and 250°C short-circuit rating.

  • 100A current carrying capacity in conduit
  • DC resistance: 1.15 ohm/km at 20°C
  • Overall diameter: 8.5mm
  • Class 2 stranded Cu conductor
Specifications

Cross Section

16 mm²

Core Colour

Blue

Conductor

Stranded copper, Class 2

Insulation

Cross-linked polyethylene (XLPE)

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Rated Voltage

450/750 V

Max Operating Temperature

90°C

Max Short Circuit Temperature

250°C

Current Carrying Capacity (Conduit)

100 A

DC Resistance at 20°C

1.15 ohm/km

Overall Diameter

8.5 mm

Net Weight

183 kg/km

Standard

BS 7211:2012 / IEC 60502-1

Flame Propagation

EN 60332-1
